DOUBLE BRANCH 89° - (832.050.075 AS)
×
![]()
Part Of the Series: Double branch-89-90
Type no.: 832.050.075 AS
EAN no.: 5705499409123
NRF no.: 2172593

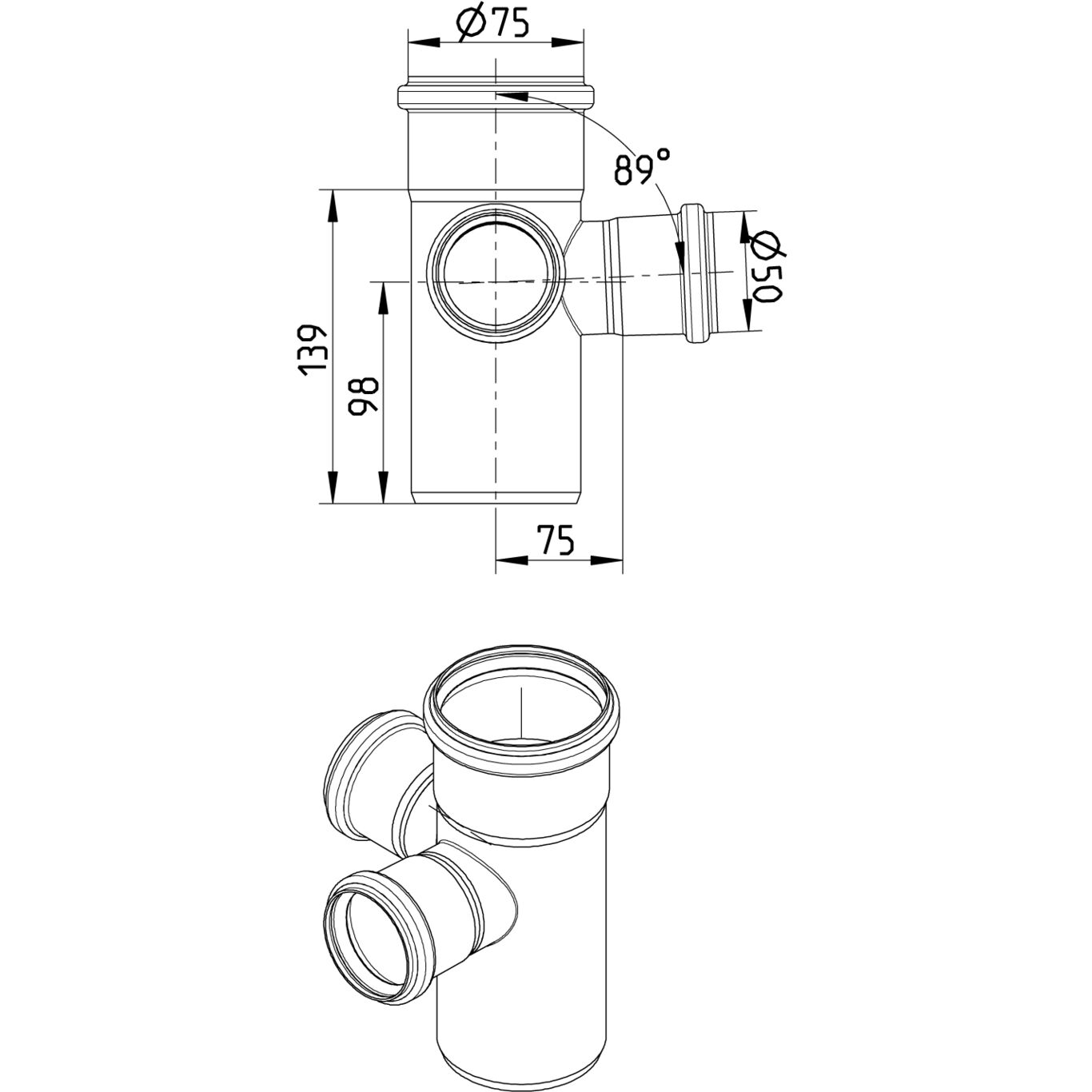

DOUBLE BRANCH 89°
-Pipe diameter: Ø75mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD
TÜRK LOYDU - 25041616077231247 RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products
