DOUBLE BRANCH 89° - (832.050.110 AS)

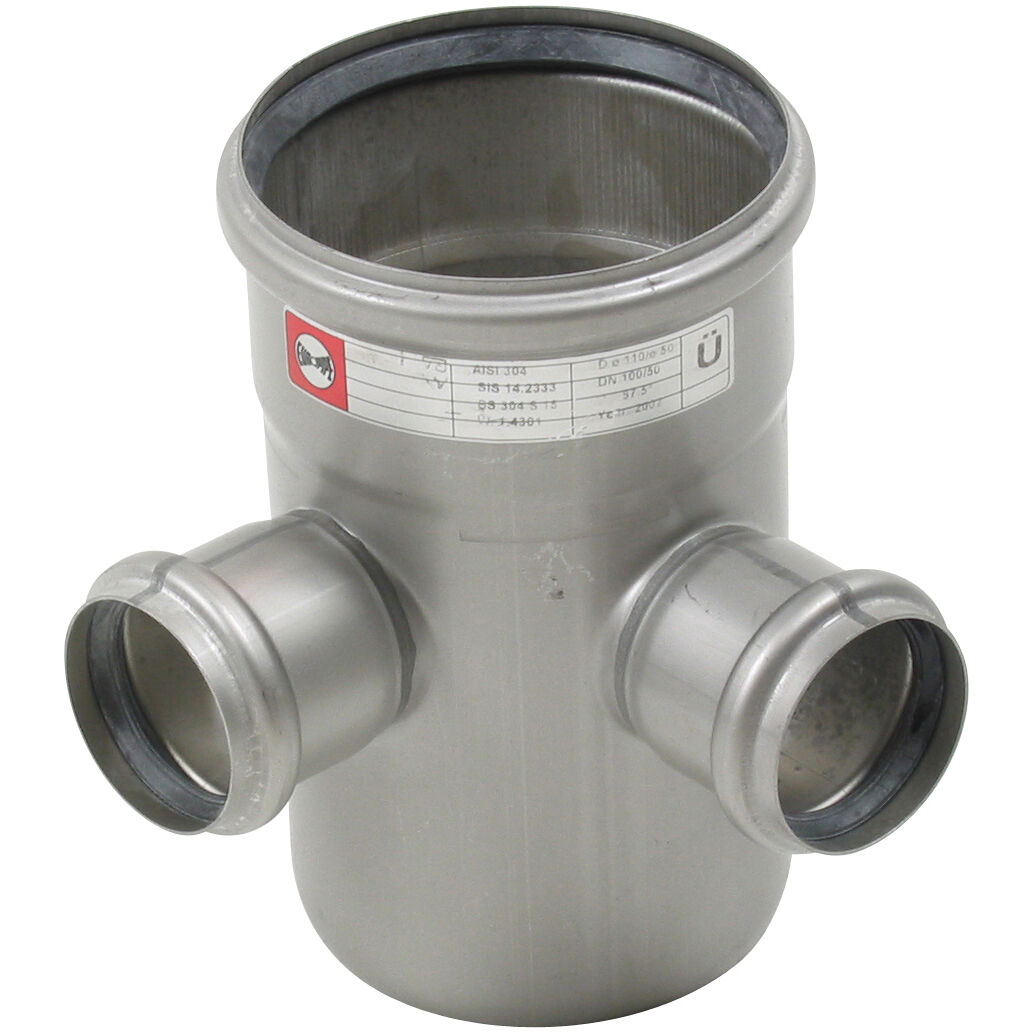

Product Image - Double branch-87.5-90

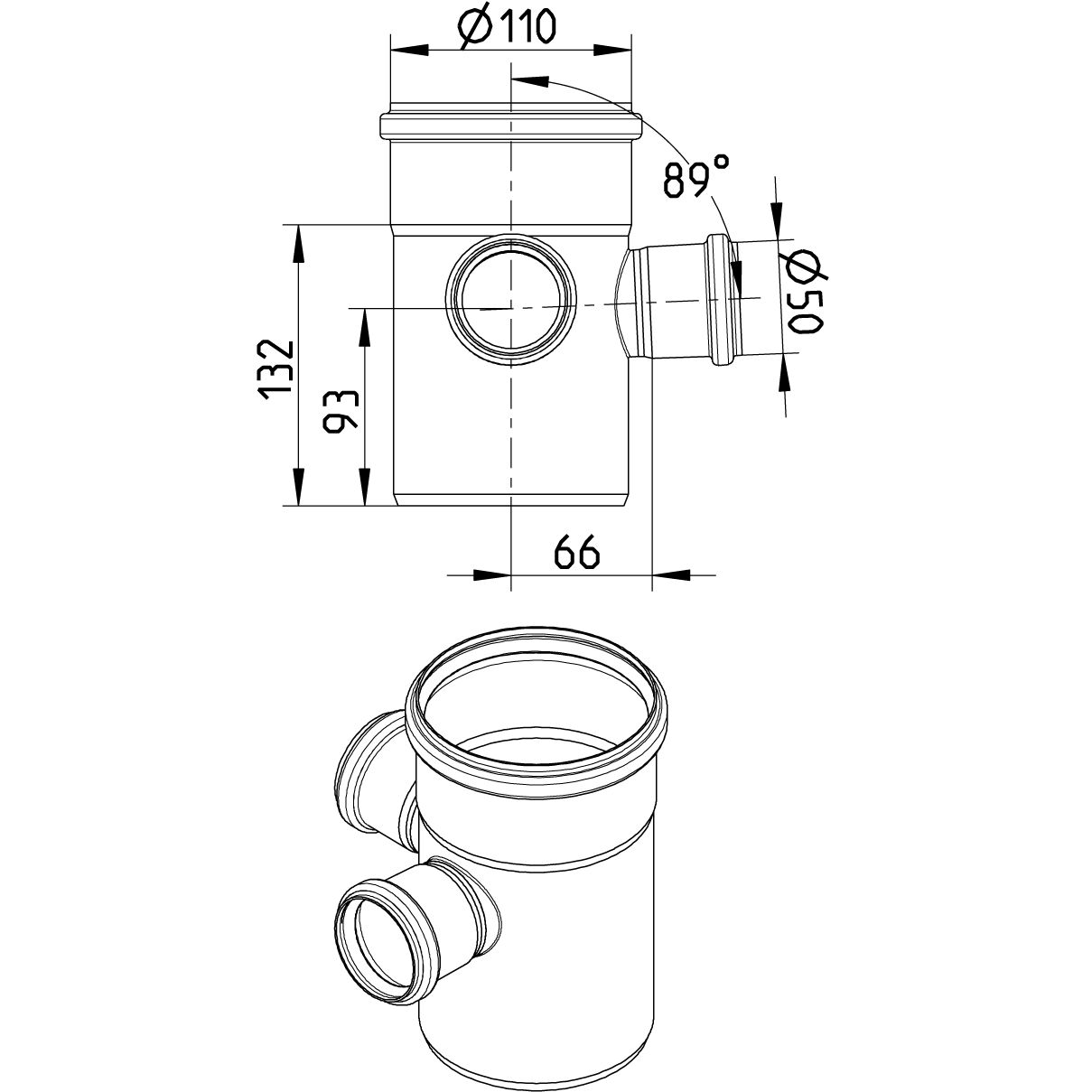

Line Drawing - Double branch-89-90
×

Part Of the Series: Double branch-89-90

Type no.: 832.050.110 AS

EAN no.: 5705499409130

NRF no.: 2172594

DOUBLE BRANCH 89°
-Pipe diameter: Ø110mm. Branch diameter: Ø50mm
-Stainless steel: AISI316L/EN1.4404

Product Specification
Angle (°) 89
Length (mm) 132
Material AISI 316L
Material (EN) EN 1.4404
Outlet Diameter (mm) 110
Weight (kg) 0,72
