DOUBLE BRANCH 89° - (832.075.075 AS)
×
![]()
Part Of the Series: Double branch-89-90
Type no.: 832.075.075 AS
EAN no.: 5705499409147
NRF no.: 2172596

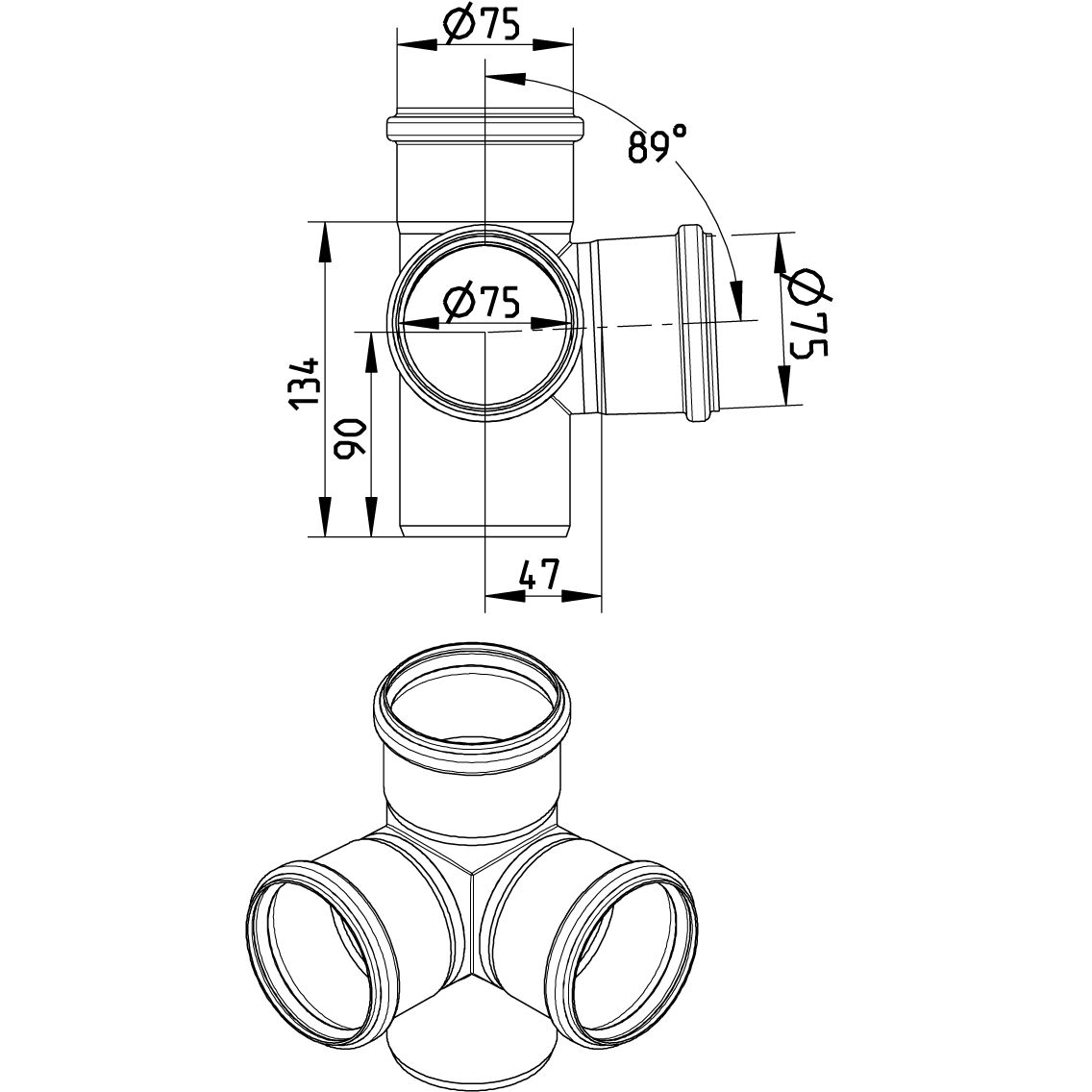

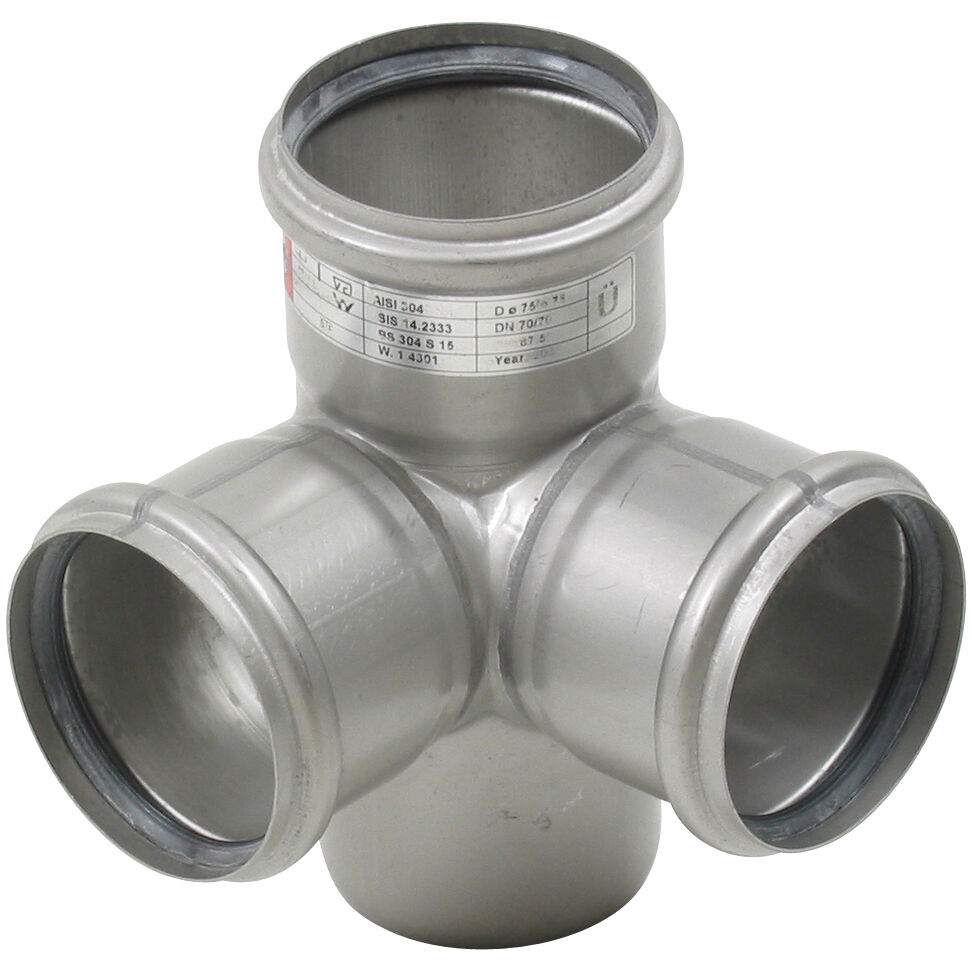

DOUBLE BRANCH 89°
-Pipe diameter: Ø75mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 139 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 75 |
| Weight (kg) | 0,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
