SWEPT BRANCH 87.5° - (839.050.050)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.050.050
EAN no.: 5705499402513
VVS no.: 160222050
RSK no.: 1550181
NRF no.: 2170084
LVI no.: 0245233

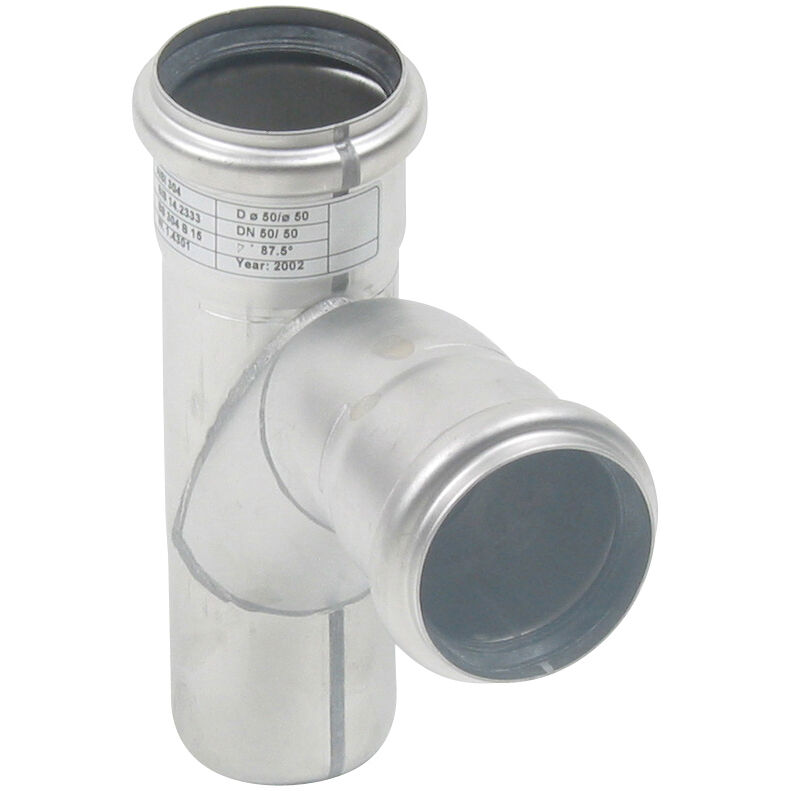

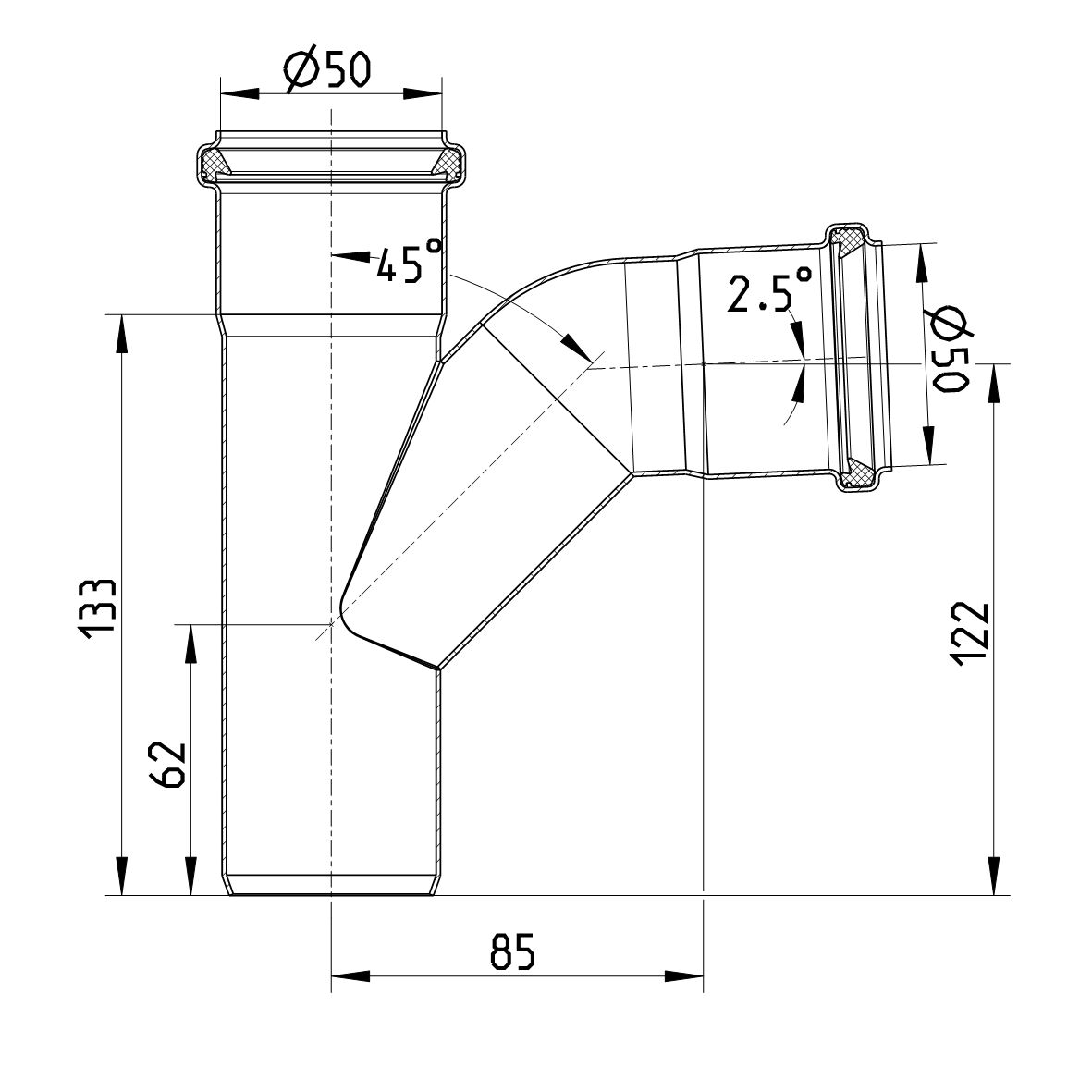

SWEPT BRANCH 87.5°
-Pipe diameter: Ø50mm. Branch diameter: Ø50mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 133 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 50 |
| Weight (kg) | 0,44 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
