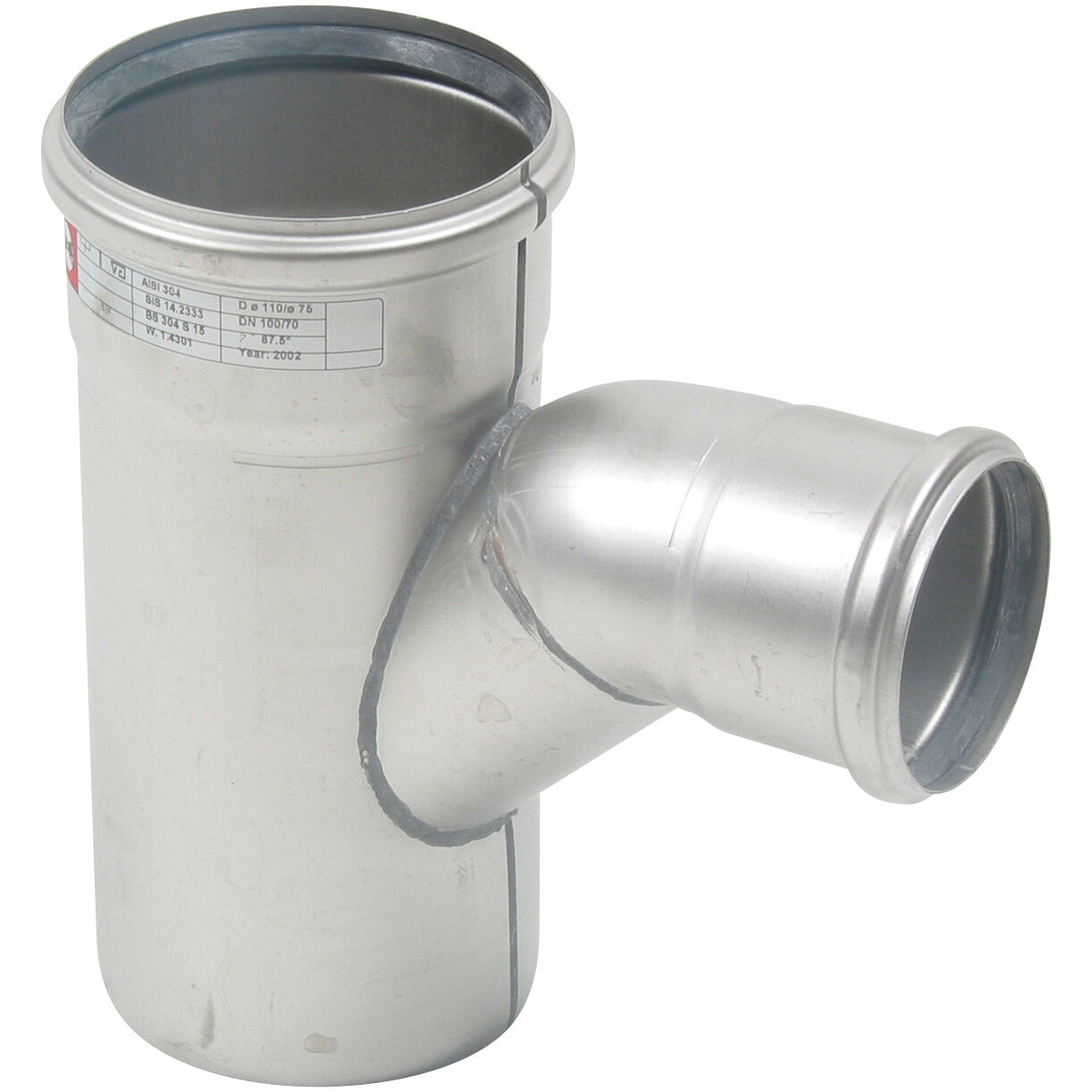

SWEPT BRANCH 87.5° - (839.075.110 S)
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.075.110 S
EAN no.: 5705499402605
VVS no.: 160222408
RSK no.: 1550386
NRF no.: 2170797
LVI no.: 0255239

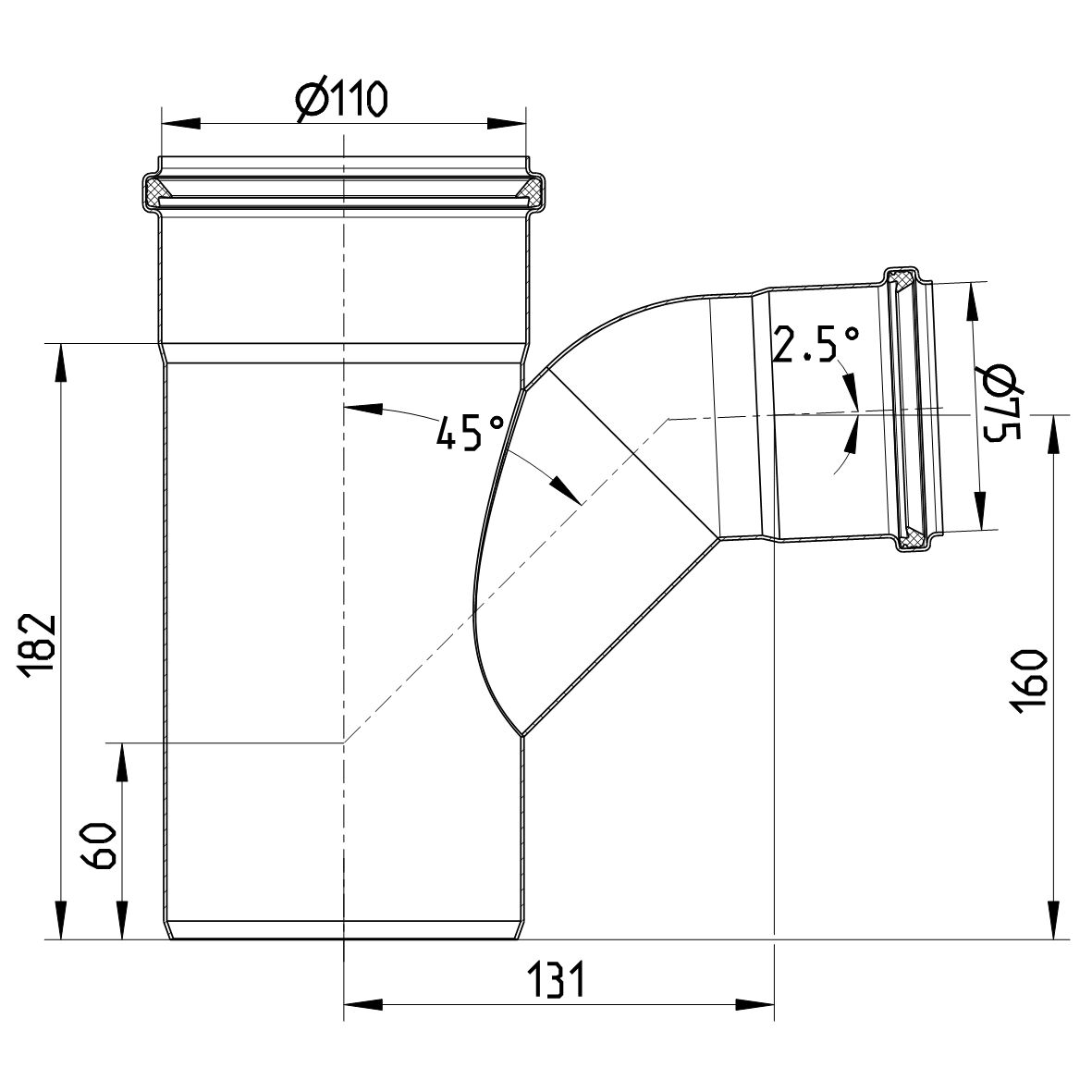

SWEPT BRANCH 87.5°
-Pipe diameter: Ø110mm. Branch diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 182 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 110 |
Weight (kg) | 1,11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 US - IAPMO File No.3247-EuroPipe HACCP Food Safety Programme - Europe HACCP Food Safety Programme - Australasia UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA Achilles Certificate - 46702-22 DNV - TAP0000023-rev5, Sanitary discharge pipes ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001 RINA -MAC285119XG EuroPipe MARINE - R4547 NATO CODIFICATION SYSTEM
