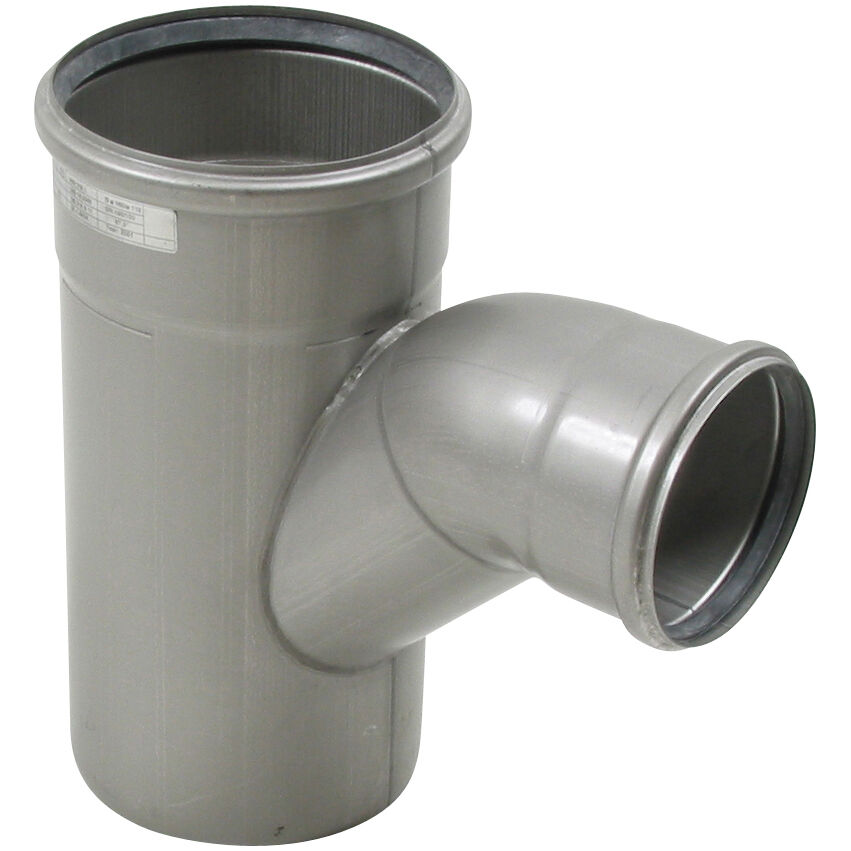

SWEPT BRANCH 87.5° - (839.110.160 S)
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.110.160 S
EAN no.: 5705499402643
VVS no.: 160222457
RSK no.: 1550388
NRF no.: 2170802
LVI no.: 0255244
SWEPT BRANCH 87.5°
-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Angle (°) | 87.5 |
Length (mm) | 256 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 160 |
Weight (kg) | 2,53 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe US - IAPMO File No.3247-EuroPipe DK - VA 2.12/19350 DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Australasia UR - 1055745 Product approval, EuroPipe and Drains DNV - TAP0000023-rev5, Sanitary discharge pipes Lloyds Register LR22419510TA Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe
