SWEPT BRANCH 87.5° - (839.250.250 S)
×
![]()
Part Of the Series: Swept branch-87.5-long bend
Type no.: 839.250.250 S
EAN no.: 5705499412628
NRF no.: 2172645
LVI no.: 0255247

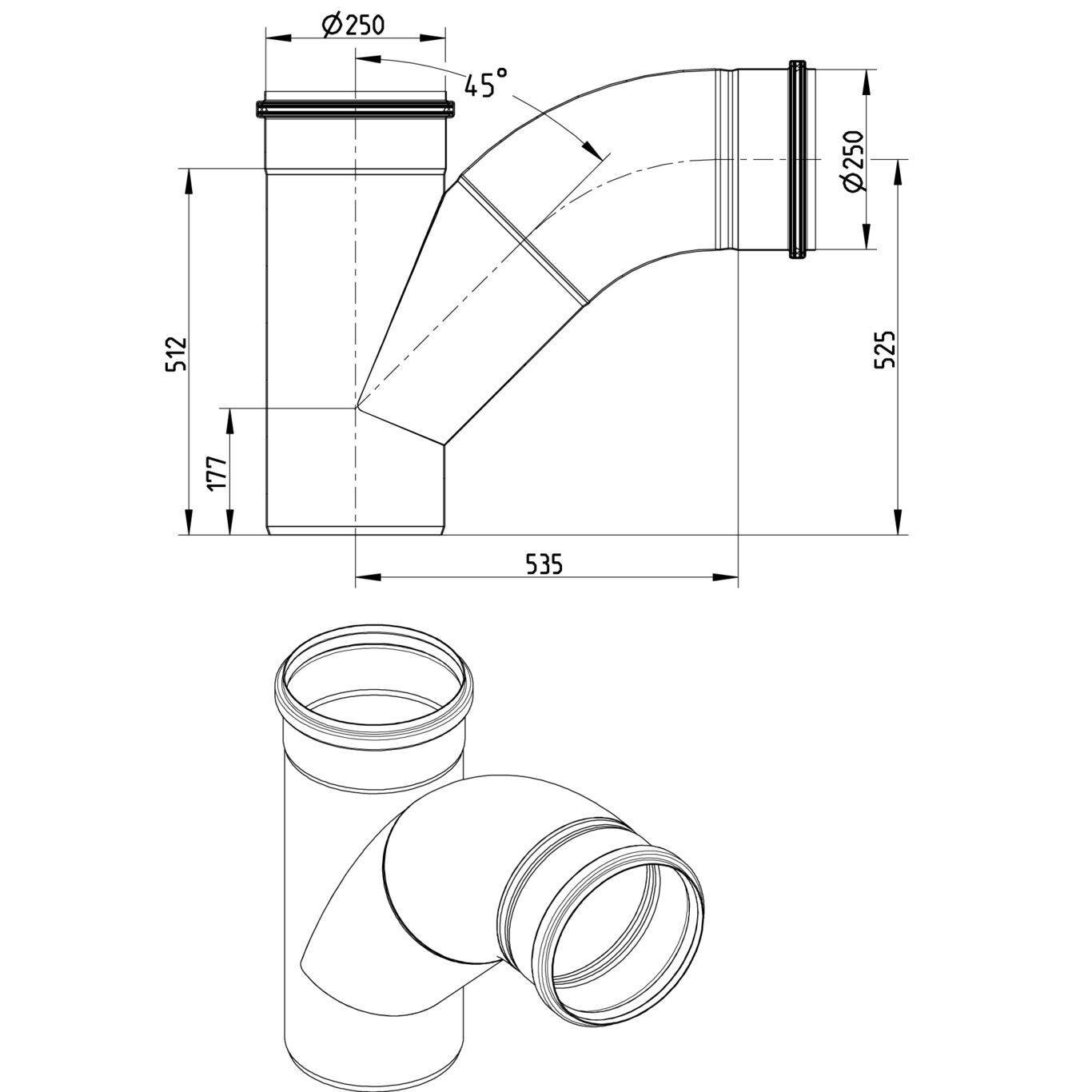

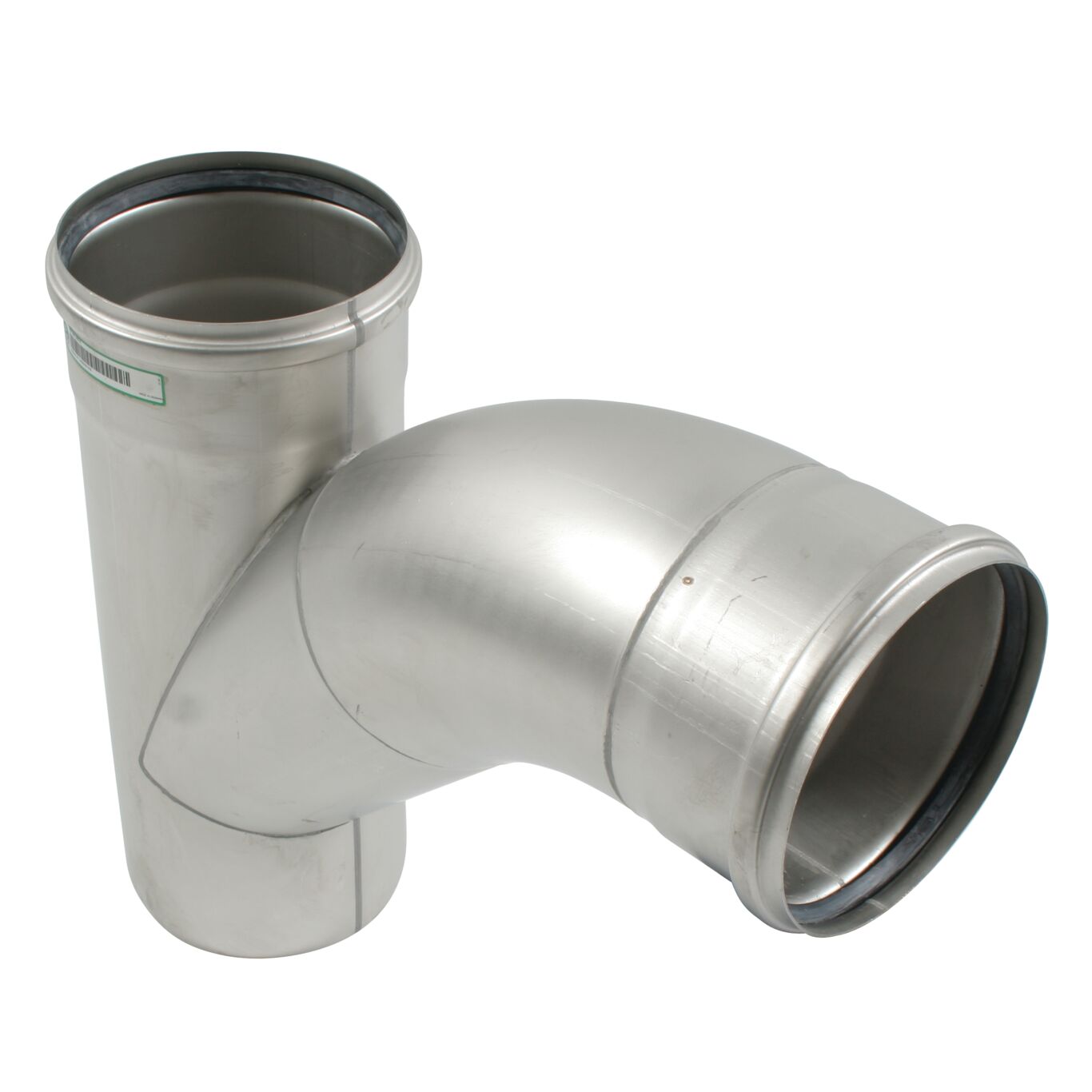

SWEPT BRANCH 87.5°
-Pipe diameter: Ø250mm. Branch diameter: Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 87.5 |
| Length (mm) | 512 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 9,67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19349 EuroPipe DS432
NO - 0692-22 EuroPipe
