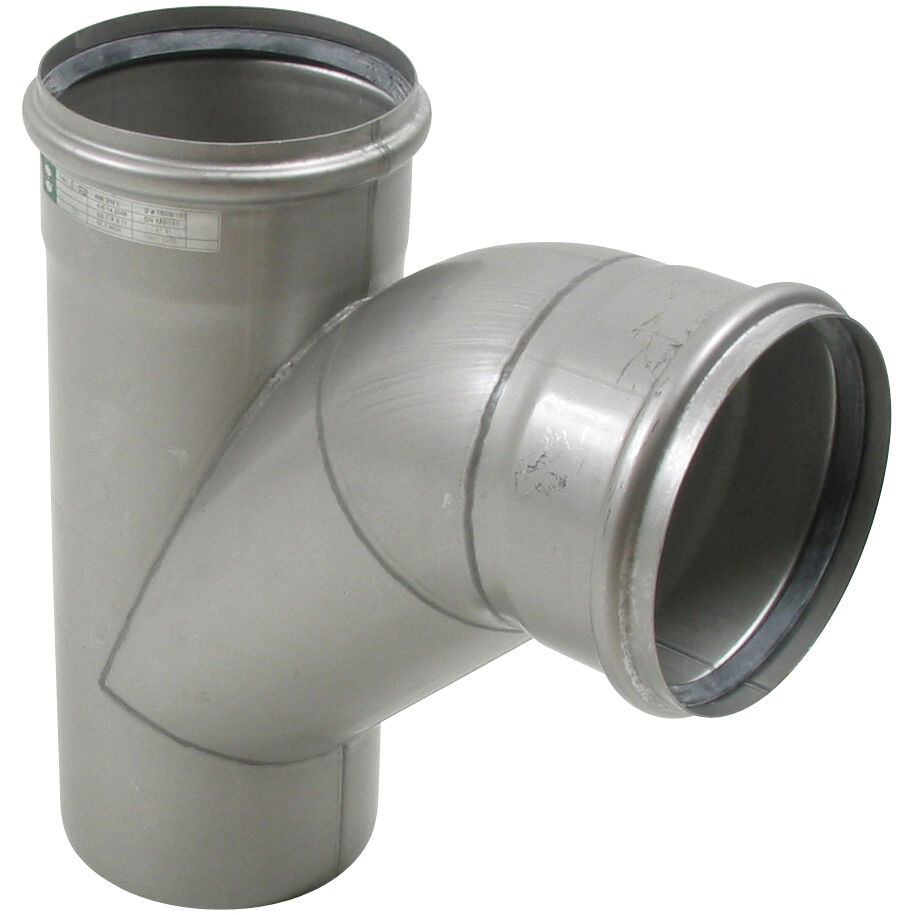

SWEPT BRANCH 89° - (839.160.160 AS)
×
![]()
Part Of the Series: Swept branch-89-long bend
Type no.: 839.160.160 AS
EAN no.: 5705499409444
NRF no.: 2172643

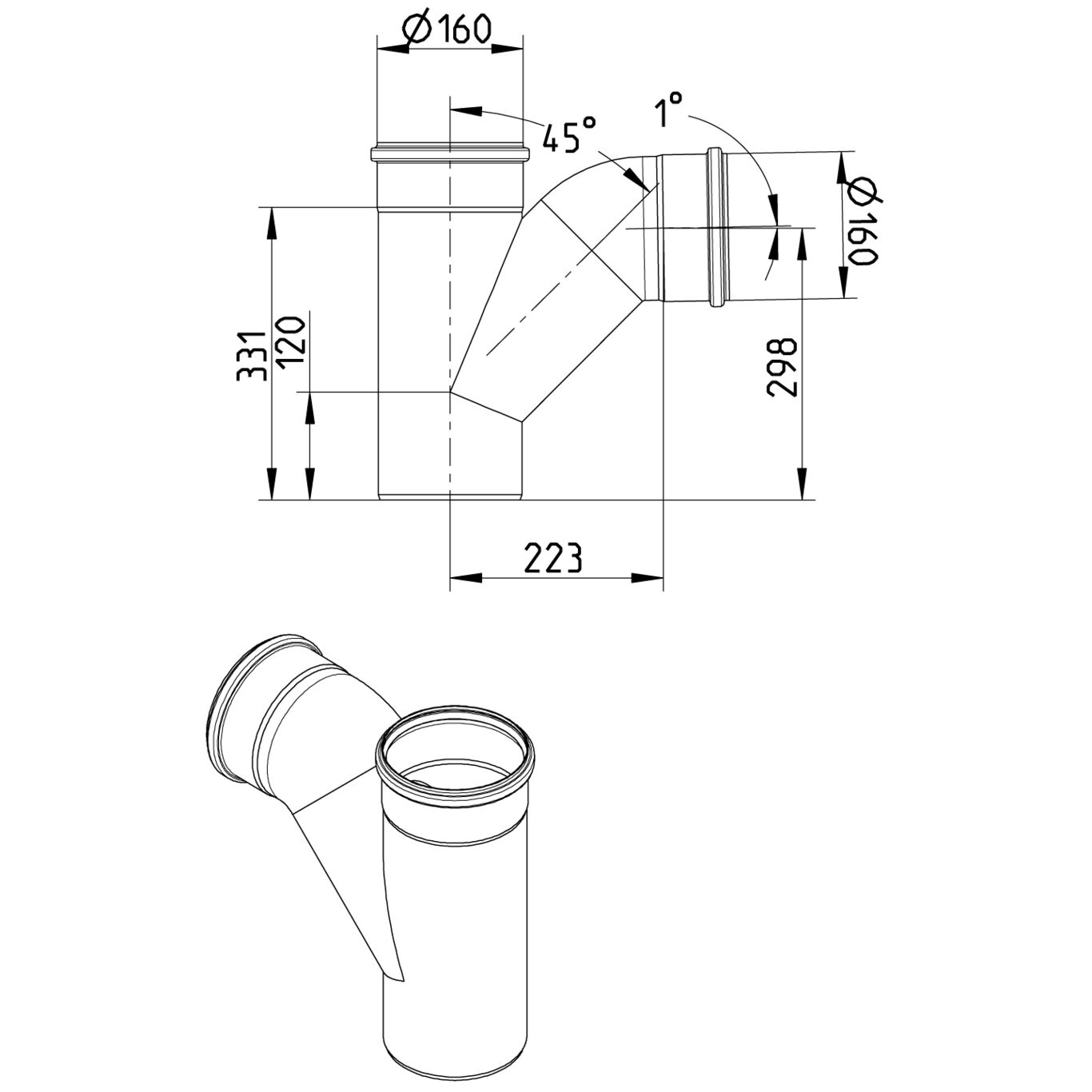

SWEPT BRANCH 89°
-Pipe diameter: Ø160mm. Branch diameter: Ø160mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 331 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 4,52 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Europe
DK - VA 2.12/19349 EuroPipe DS432
US - IAPMO File No.3247-EuroPipe
BLÜCHER® EuroPipe EPD
Declaration of Perfomance EN1124-1-001
TÜRK LOYDU - 25041616077231247
Declaration of Perfomance BS-EN1124-1-002 KR - Type Approval CPH42135-PE001 RINA -MAC320524XG EuroPipe PL - Hygienic Certificate - All Products UR - 1055745 Product approval, EuroPipe and Drains Achilles Certificate - 46702
