SWEPT BRANCH 89° - (848.110.160 AS)
×
![]()
Part Of the Series: Swept branch-89
Type no.: 848.110.160 AS
EAN no.: 5705499409697
NRF no.: 2172675
LVI no.: 0255254
SWEPT BRANCH 89°

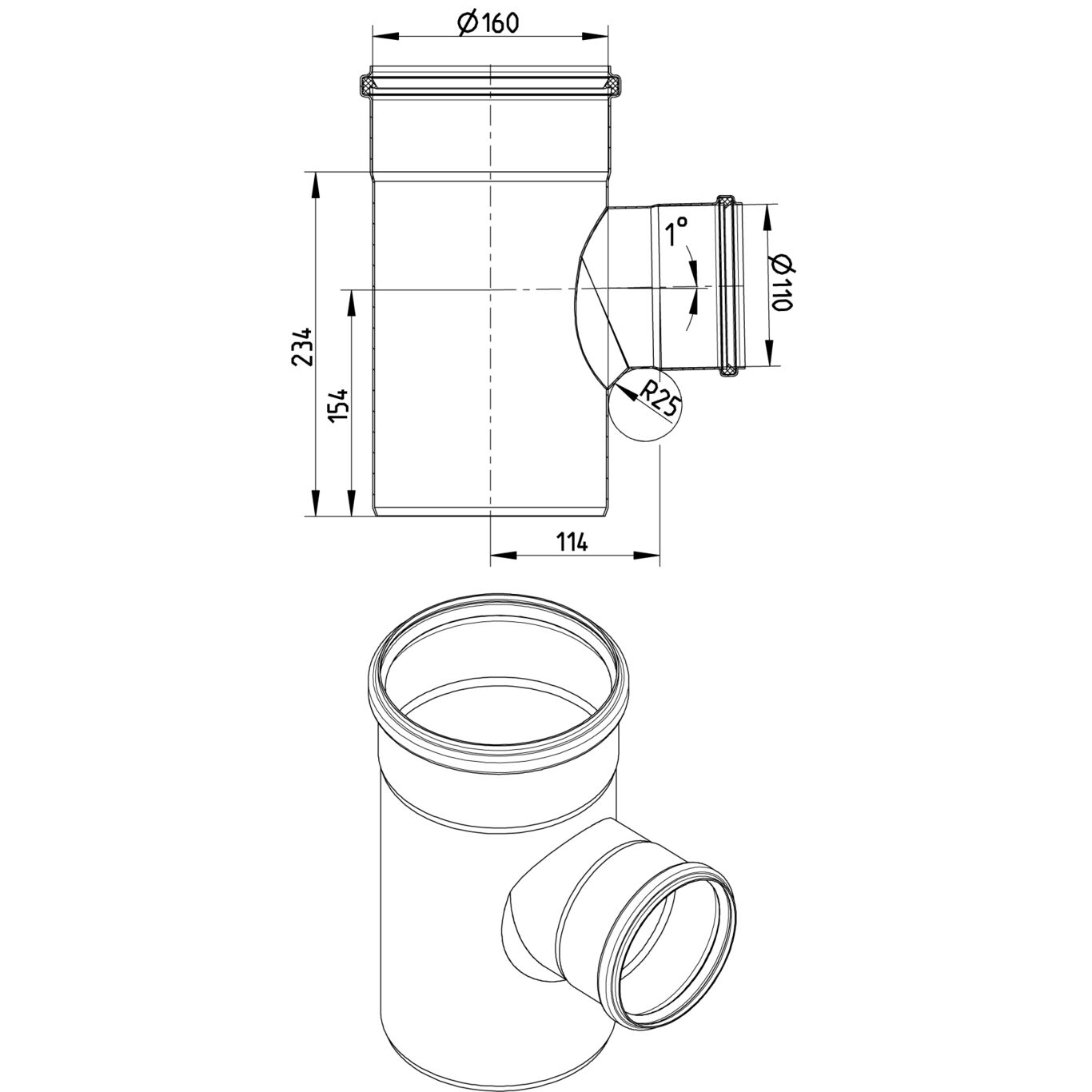

-Pipe diameter: Ø160mm. Branch diameter: Ø110mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 89 |
| Length (mm) | 234 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,50 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® EuroPipe EPD
DK - VA 2.12/19349 EuroPipe DS432
Declaration of Perfomance EN1124-1-001
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance BS-EN1124-1-002 PL - Hygienic Certificate - All Products
