INCREASER CONCENTRIC - (850.075.110 C)

Part Of the Series: Increaser-concentric

Type no.: 850.075.110 C

EAN no.: 5705499403145

VVS no.: 160335077

NRF no.: 2172383

LVI no.: 0242184

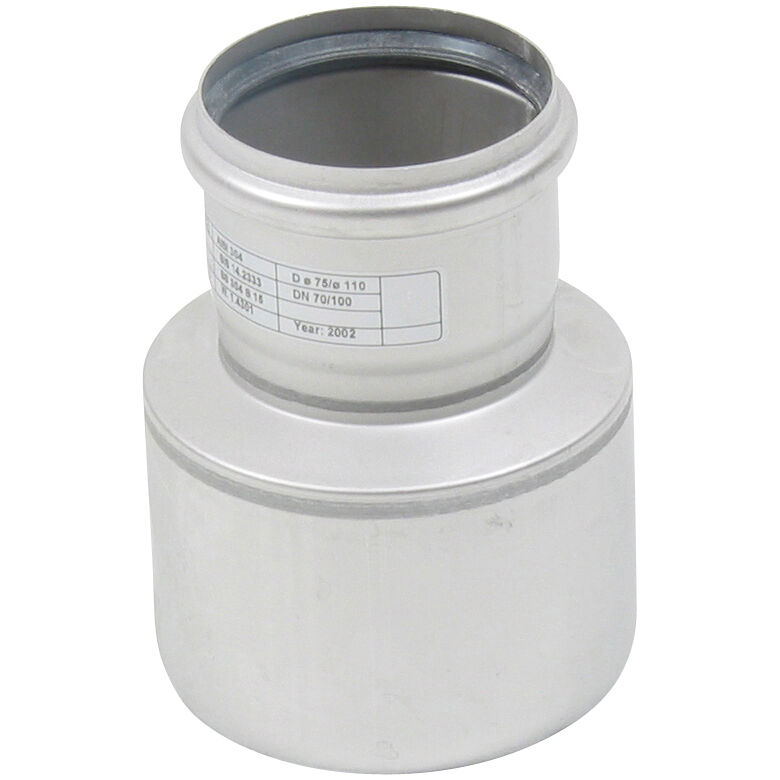

INCREASER CONCENTRIC
-Diameter: Ø75mm to Ø110mm
-Stainless steel: AISI304/EN1.4301

Product Specification
Length (mm)	95
Material	AISI 304
Material (EN)	EN 1.4301
Outlet Diameter (mm)	110
Weight (kg)	0,37

Downloads

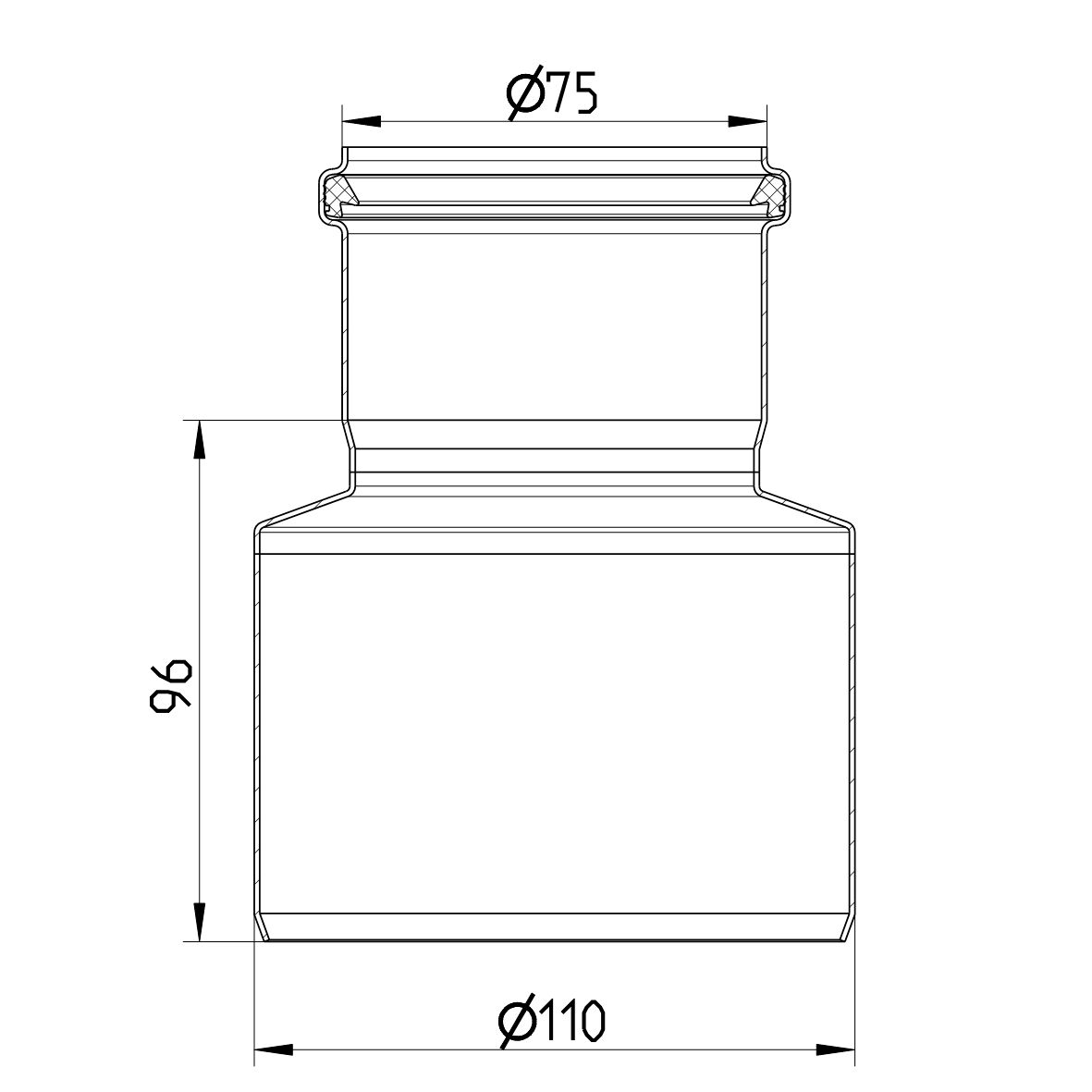

- Dimensions of socket and spigot
- Maintenance Manual - BLÜCHER® EuroPipe

Approval Information

For approval information, please refer to the below approval certificates.

NO - 0692-22 EuroPipe DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe FR - DTA 14.1/12-1811_V3 EuroPipe US - IAPMO File No.3247-EuroPipe DE - LGA Certificate 57214035 a HACCP Food Safety Programme - Australasia DNV - TAP0000023-rev5, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe ABS - 23-2329630-PDA Bureau Veritas, 02375-I0 Pipes & Fittings Lloyds Register LR22419510TA KR - Type Approval CPH42135-PE001 PL - Hygienic Certificate - All Products Achilles Certificate - 46702-22
