INCREASER CONCENTRIC - (850.250.315 CS)
×
![]()
Part Of the Series: Increaser-concentric
Type no.: 850.250.315 CS
EAN no.: 5705499413960
VVS no.: 160261852
NRF no.: 2172711
LVI no.: 0256057

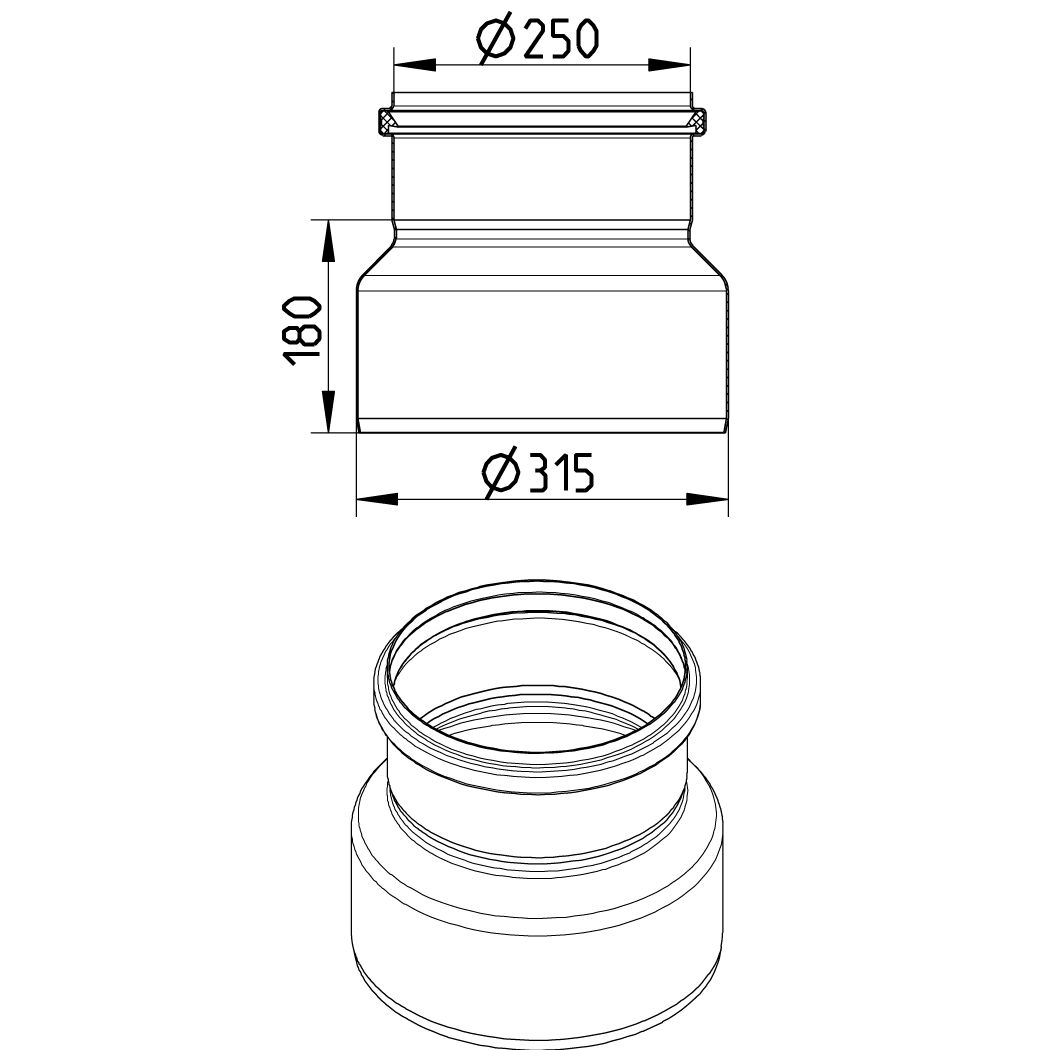

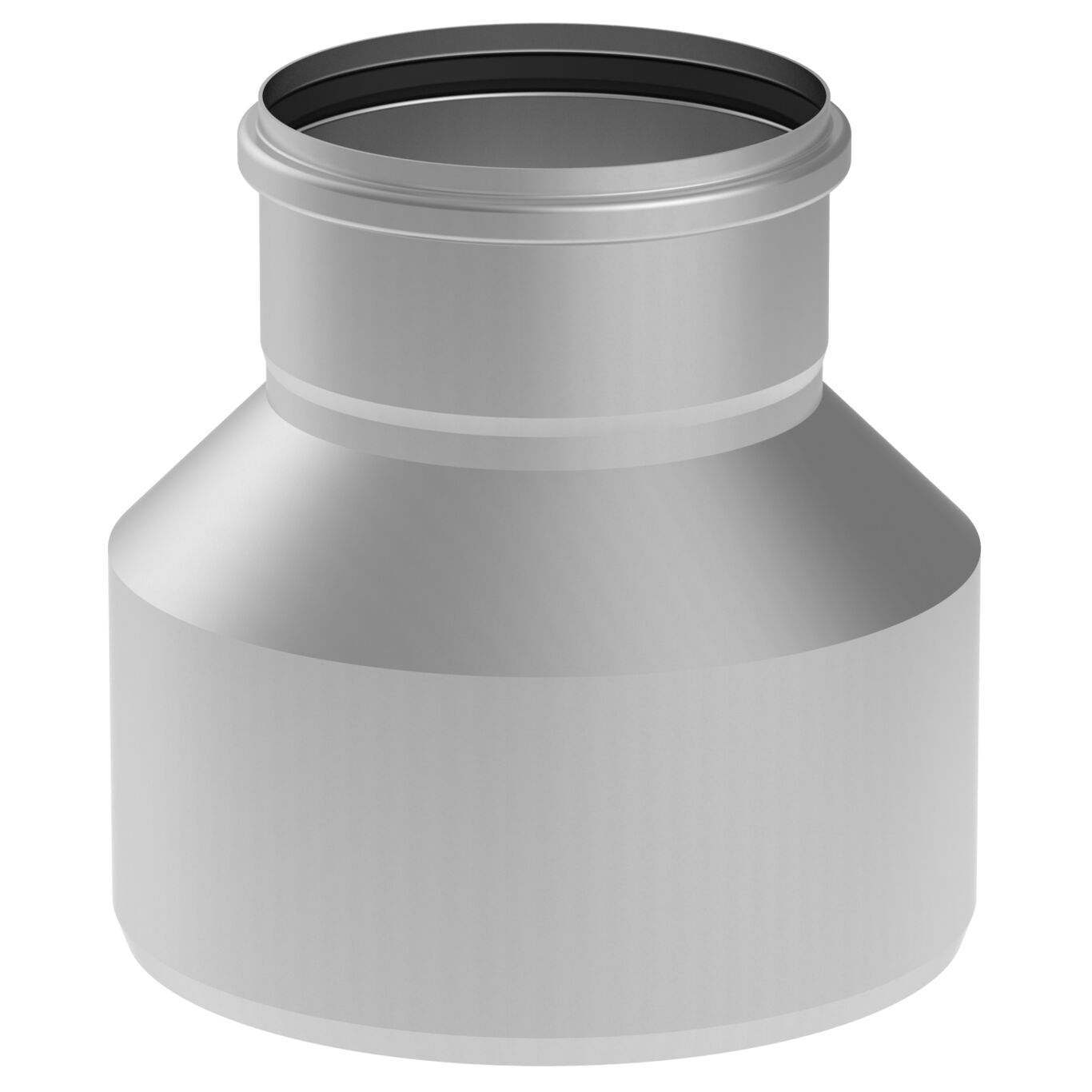

INCREASER CONCENTRIC
-Diameter: Ø250mm to Ø315mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 180 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 315 |
| Weight (kg) | 3,74 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
BLÜCHER® EuroPipe EPD
Declaration of Perfomance EN1124-1-001
US - IAPMO File No.3247-EuroPipe
DE - TÜV Rheinland R 60178453 0001
Declaration of Perfomance BS-EN1124-1-002
HACCP Food Safety Programme - Australasia
TÜRK LOYDU - 25041616077231247
