REDUCER ECCENTRIC - (850.050.040 S)
Part Of the Series: Reducer-eccentric
Type no.: 850.050.040 S
EAN no.: 5705499403961
VVS no.: 160261341
NRF no.: 2172683
LVI no.: 0252173

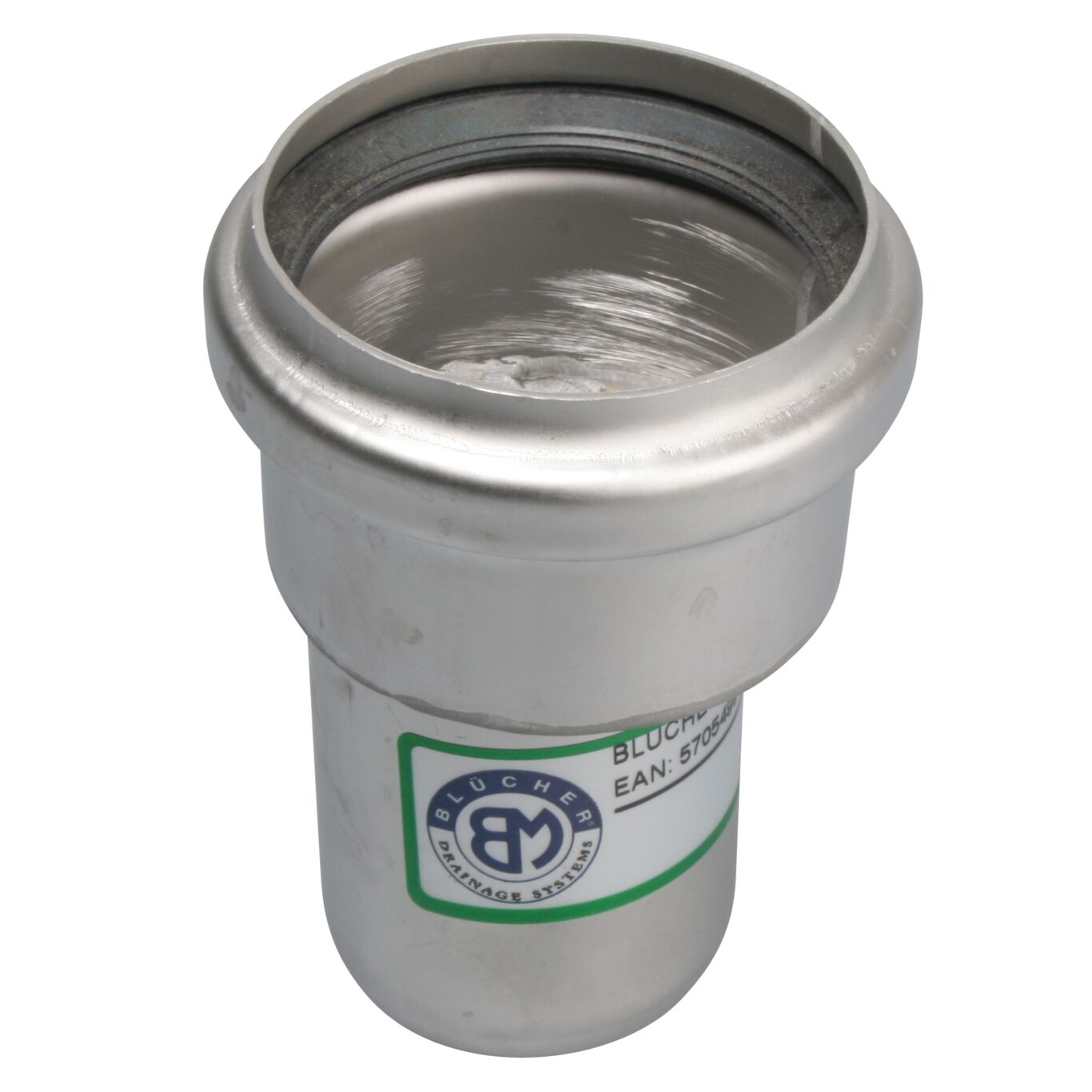

REDUCER ECCENTRIC

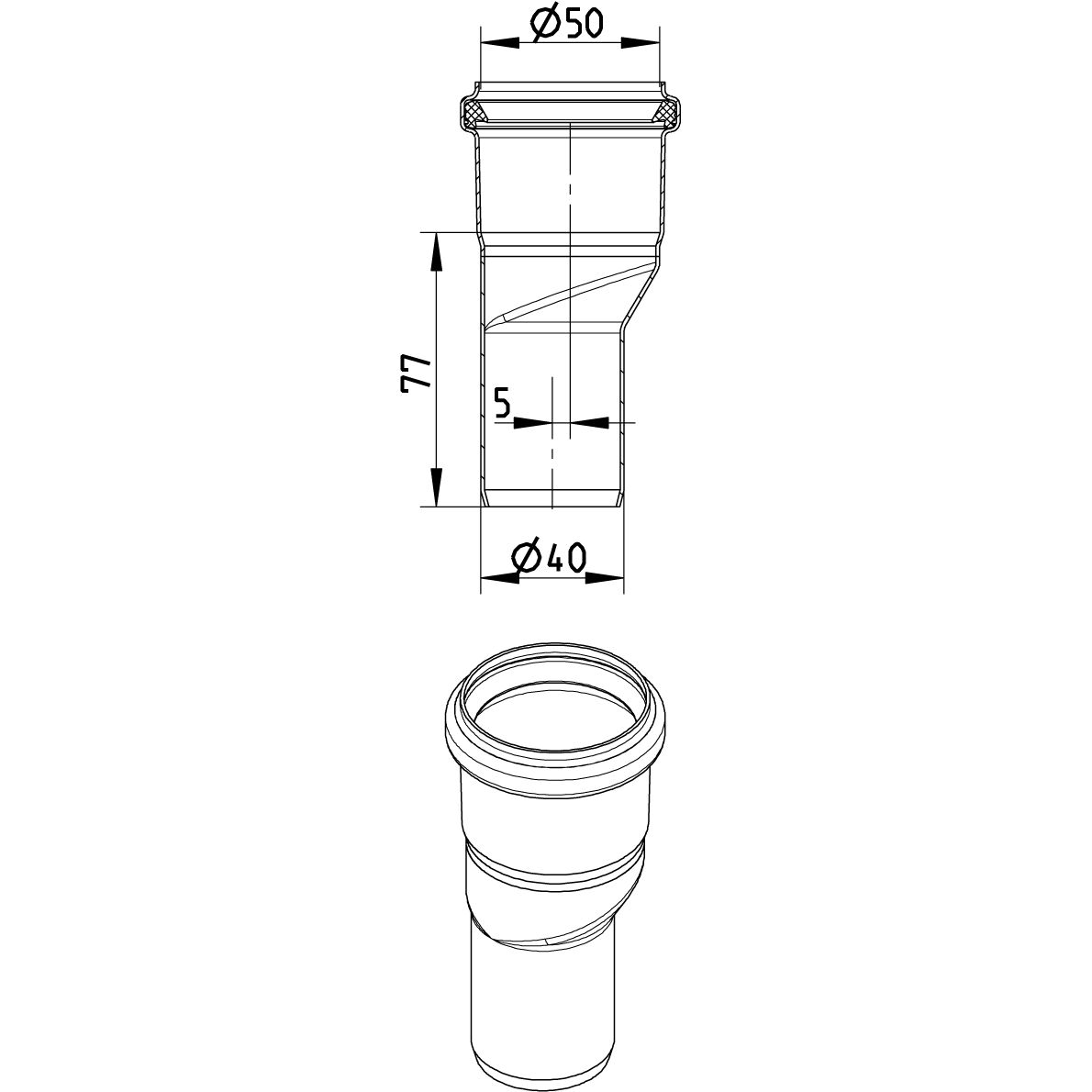

-Diameter: Ø50mm to Ø40mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length (mm) | 77 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 40 |
Weight (kg) | 0,10 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe DE - LGA Certificate 57214035 a NO - 0692-22 EuroPipe HACCP Food Safety Programme - Australasia DK - VA 2.12/19349 EuroPipe DS432 HACCP Food Safety Programme - Europe PL - Hygienic Certificate - All Products Lloyds Register LR22419510TA Bureau Veritas, 02375-I0 Pipes & Fittings RINA -MAC285119XG EuroPipe ABS - LD1716353-PDA Achilles Certificate - 46702-22 KR - Type Approval CPH42135-PE001 DNV - TAP0000023-rev4, Sanitary discharge pipes
