REDUCER ECCENTRIC - (850.315.250 S)
×
![]()
Part Of the Series: Reducer-eccentric
Type no.: 850.315.250 S
EAN no.: 5705499413984
VVS no.: 160261613
NRF no.: 2172713
LVI no.: 0252176

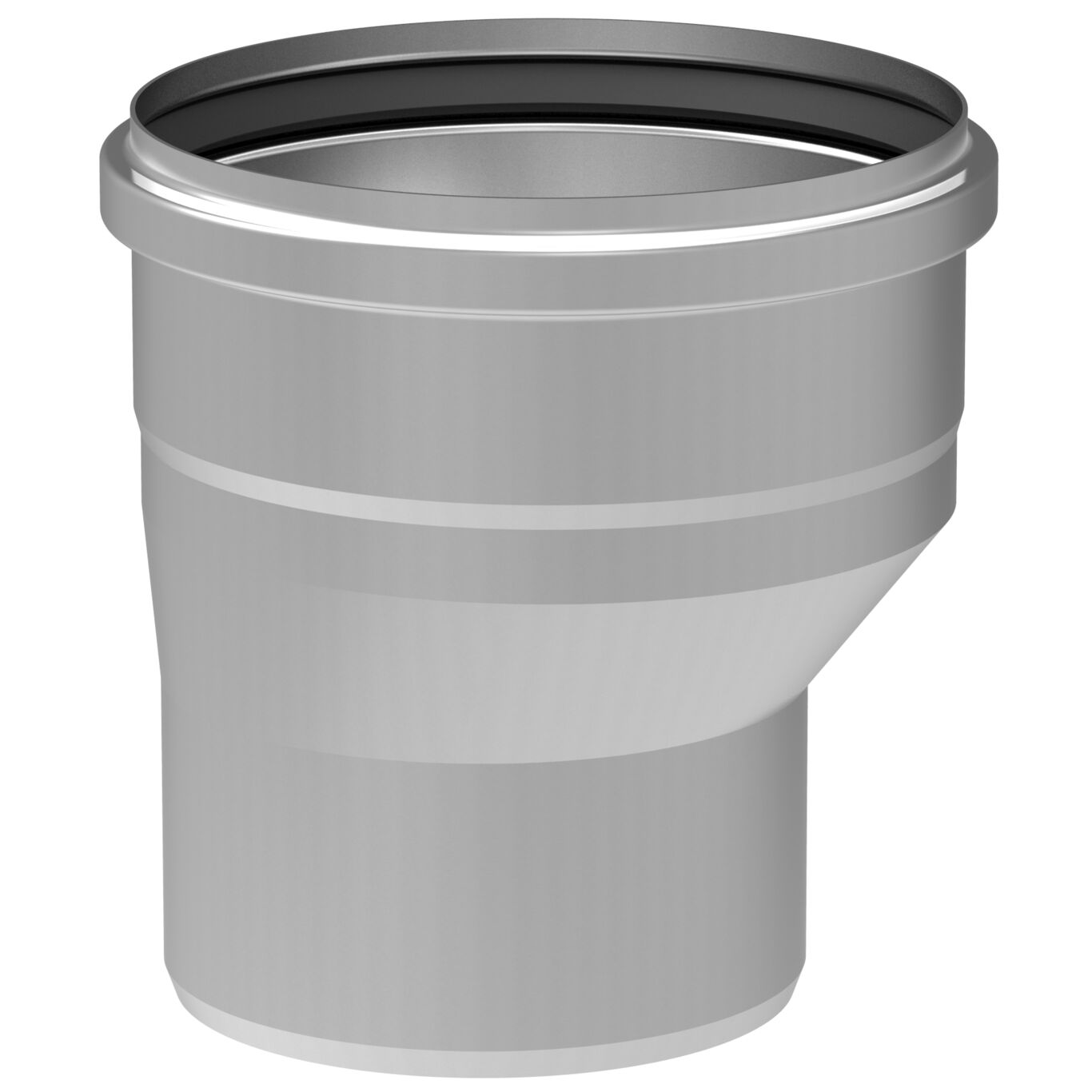

REDUCER ECCENTRIC

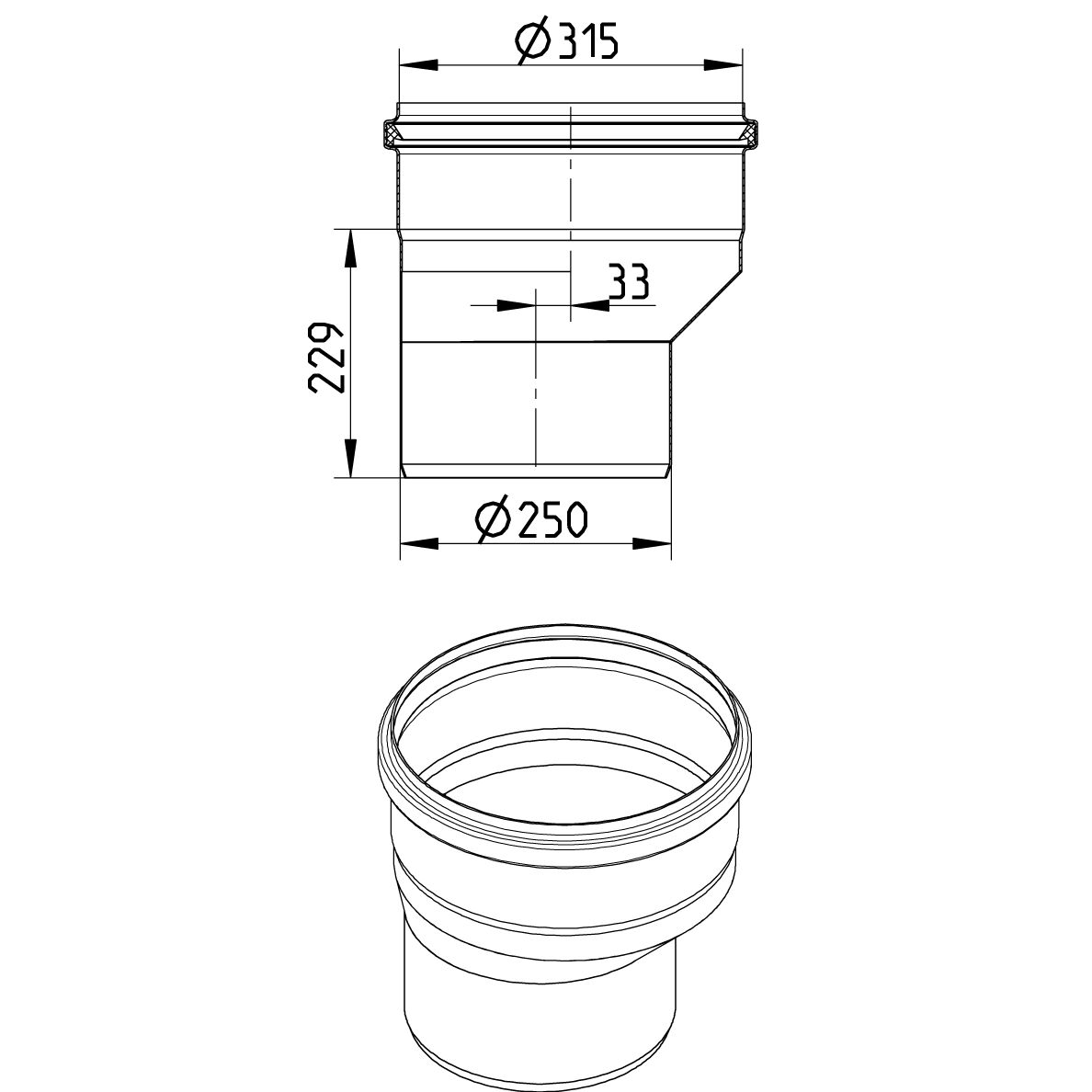

-Diameter: Ø315mm to Ø250mm
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Length (mm) | 229 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet Diameter (mm) | 250 |
| Weight (kg) | 4,93 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
US - IAPMO File No.3247-EuroPipe
Declaration of Perfomance EN1124-1-001
HACCP Food Safety Programme - Australasia
DK - VA 2.12/19350
Declaration of Perfomance BS-EN1124-1-002
TÜRK LOYDU - 25041616077231247
DE - TÜV Rheinland R 60178453 0001
BLÜCHER® EuroPipe EPD PL - Hygienic Certificate - All Products
