STRAIGHT PIPE WITH ONE SOCKET - (811.025.160)
×
![]()
Part Of the Series: Straight pipe
Type no.: 811.025.160
EAN no.: 5705499400342
VVS no.: 160132025
RSK no.: 1550159
NRF no.: 2168906
LVI no.: 0240232

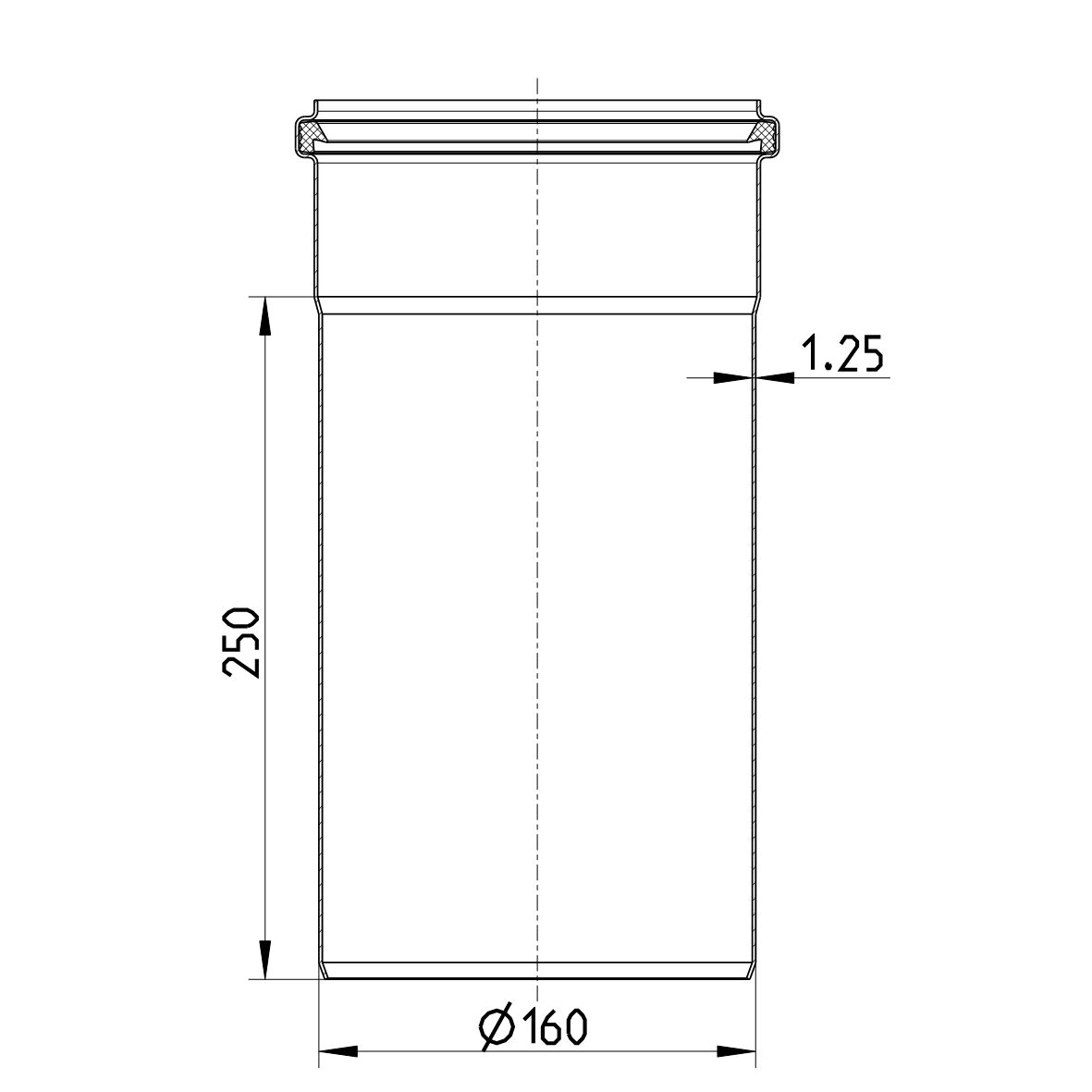

STRAIGHT PIPE WITH ONE SOCKET
-Length: 250mm
-Diameter: Ø160mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Length of straight pipe (mm) | 250 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Outlet Diameter (mm) | 160 |
| Weight (kg) | 1,69 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432
DE - LGA Certificate 57214035 a
HACCP Food Safety Programme - Europe
US - IAPMO File No.3247-EuroPipe
AUS - WMKT00204 - 24
FR - DTA 14.1/12-1811_V3 EuroPipe
NO - 0692-22 EuroPipe UR - 1055745 Product approval, EuroPipe and Drains PL - Hygienic Certificate - All Products Bureau Veritas, 02375-I0 Pipes & Fittings DNV - TAP0000023-rev5, Sanitary discharge pipes Achilles Certificate - 46702-22 Lloyds Register LR22419510TA RINA -MAC285119XG EuroPipe KR - Type Approval CPH42135-PE001 MARINE - R4547 NATO CODIFICATION SYSTEM ABS - 23-2329630-PDA
