STRAIGHT PIPE WITH ONE SOCKET - (811.500.075 S)
Part Of the Series: Straight pipe
Type no.: 811.500.075 S
EAN no.: 5705499400960
VVS no.: 160124550
NRF no.: 2172498
LVI no.: 0250140

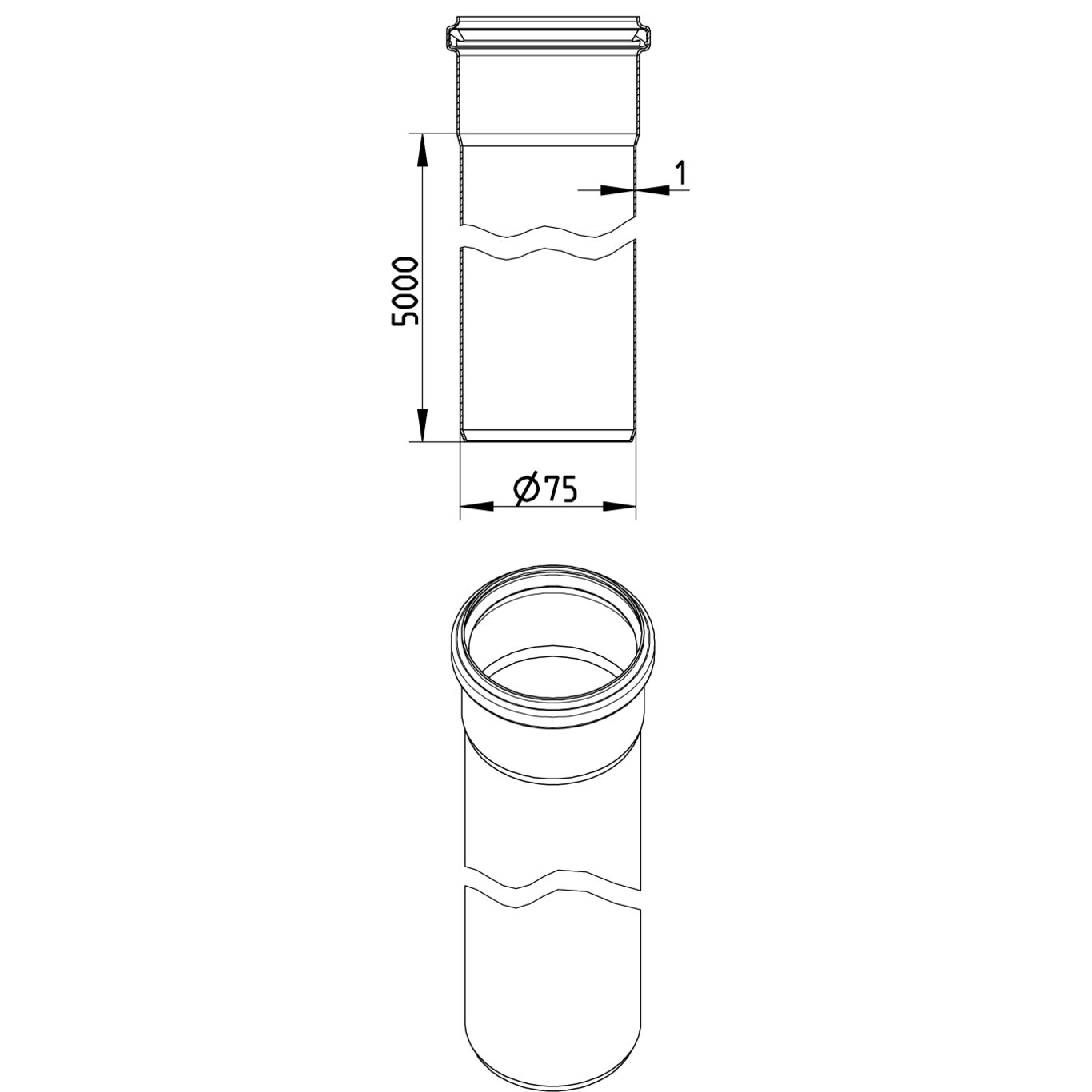

STRAIGHT PIPE WITH ONE SOCKET
-Length: 5000mm
-Diameter: Ø75mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Length of straight pipe (mm) | 5000 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Outlet Diameter (mm) | 75 |
Weight (kg) | 9,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
DK - VA 2.12/19349 EuroPipe DS432 NO - 0692-22 EuroPipe HACCP Food Safety Programme - Europe AUS - WMKT00204 - 24 DE - LGA Certificate 57214035 a US - IAPMO File No.3247-EuroPipe FR - DTA 14.1/12-1811_V3 EuroPipe HACCP Food Safety Programme - Australasia Achilles Certificate - 46702-22 ABS - LD1716353-PDA PL - Hygienic Certificate - All Products MARINE - R4547 NATO CODIFICATION SYSTEM RINA -MAC285119XG EuroPipe Lloyds Register LR22419510TA DNV - TAP0000023-rev4, Sanitary discharge pipes UR - 1055745 Product approval, EuroPipe and Drains Bureau Veritas, 02375-I0 Pipes & Fittings KR - Type Approval CPH42135-PE001
