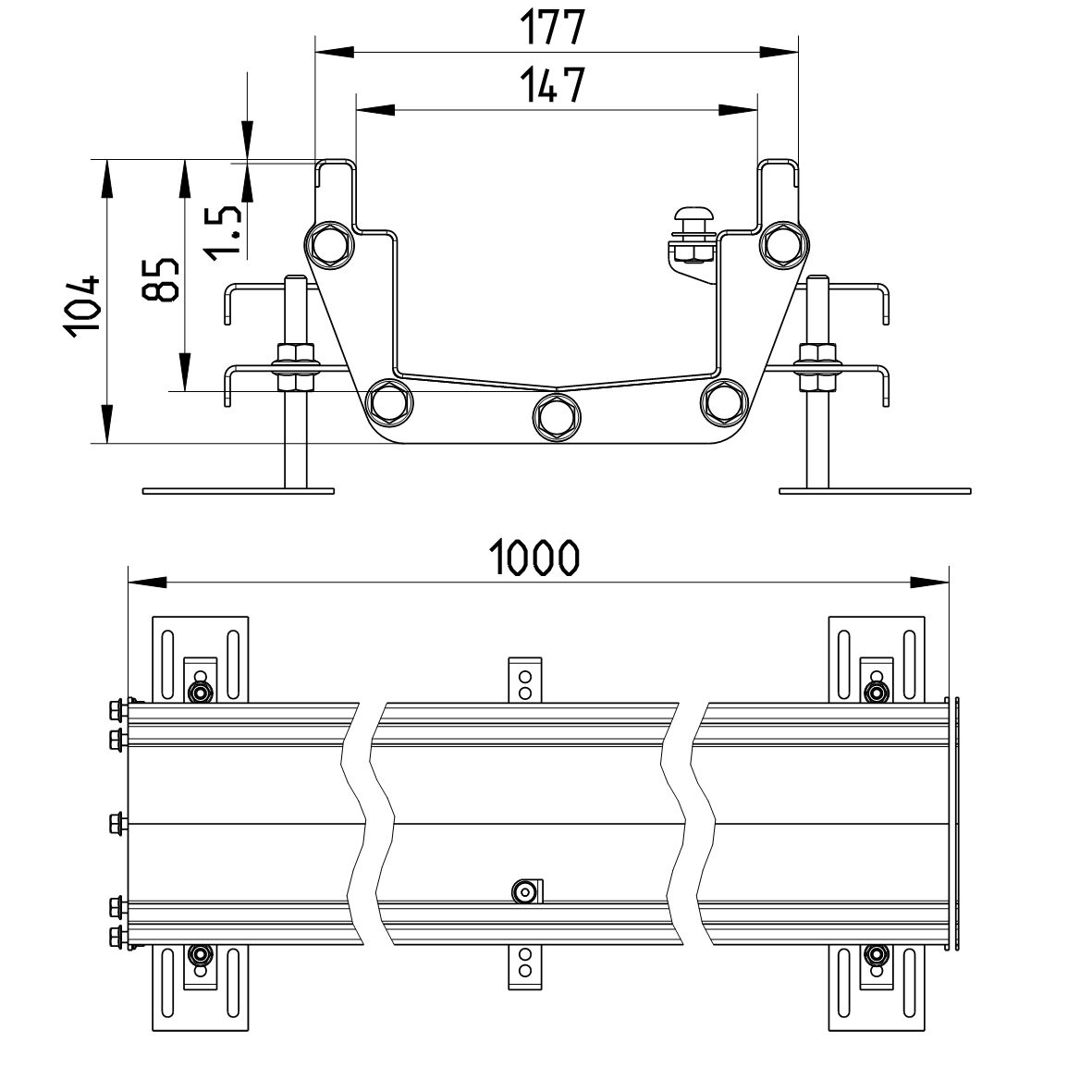

LINEA CHANNEL 150x1000 - (670.100.015.85 S)
Part Of the Series: Channel-No membrane
Type no.: 670.100.015.85 S
EAN no.: 5705499001501
Size: 150x1000
LINEA CHANNEL 150x1000
-With screw lock
-No membrane
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 104 |
Outlet Box | No |
Shape | Rectangular |
Size (mm) | 150x1000 |
Weight (kg) | 5,27 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
