LINEA CHANNEL 150x500 END OUTLET - (670.900.015.55)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.900.015.55
EAN no.: 5705499001693
VVS no.: 221811460
Size: 150x500

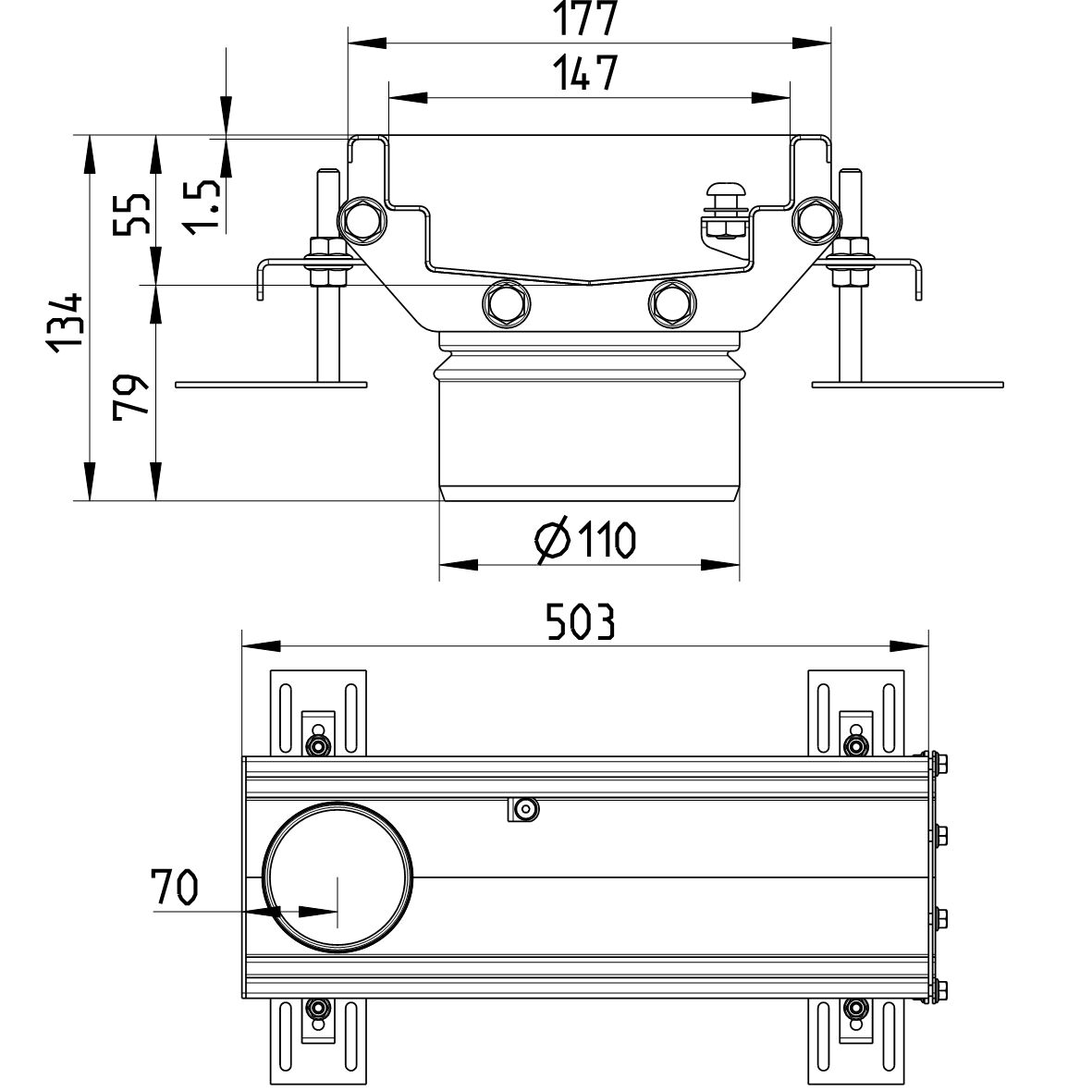

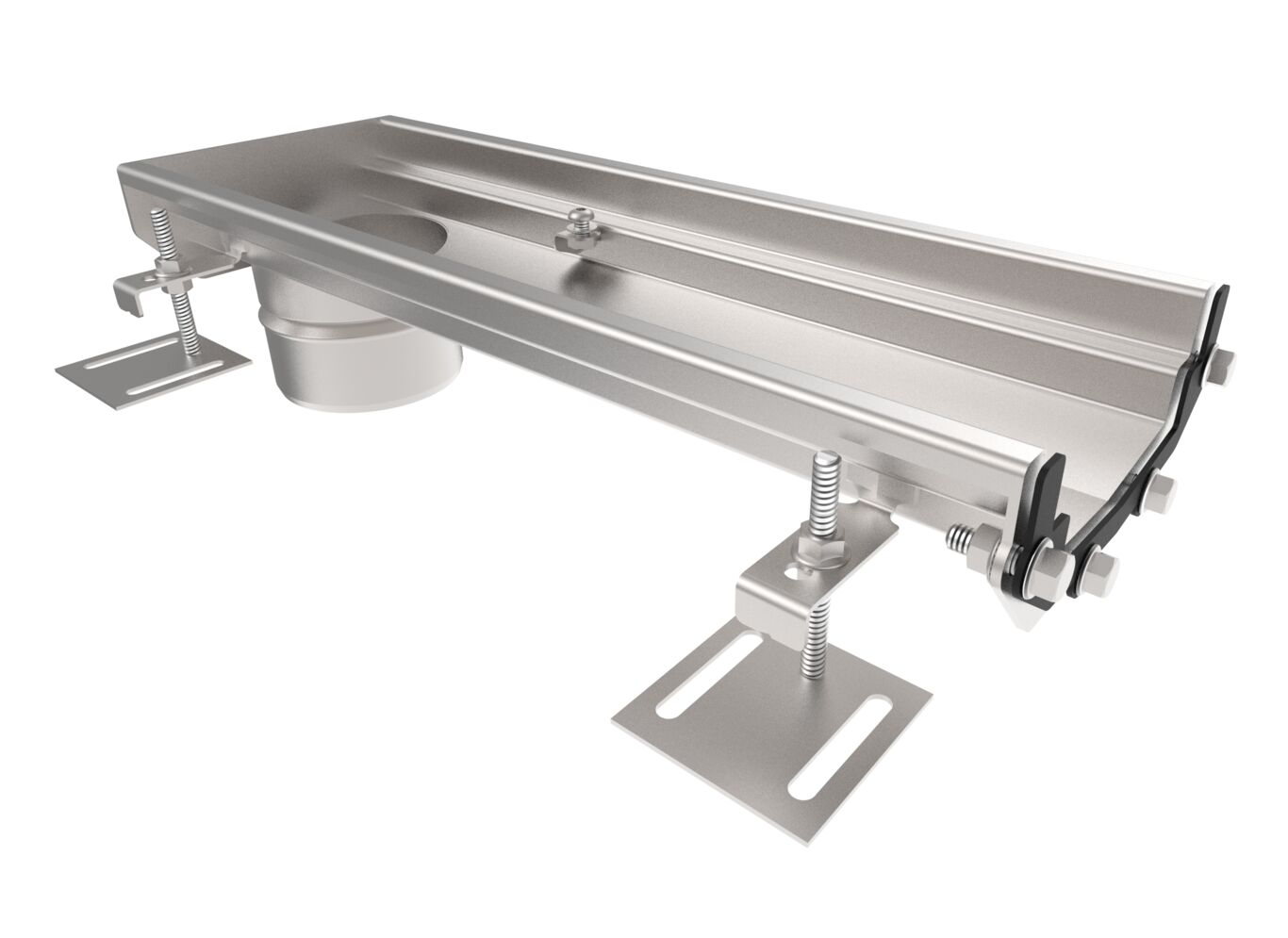

LINEA CHANNEL 150x500 END OUTLET
-With screw lock
-No membrane
-Outlet: Ø110, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 134 |
| Outlet Box | No |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 150x500 |
| Weight (kg) | 2,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
