LINEA CHANNEL END PLATE Ø50 150x85 - (670.001.015.85)
Part Of the Series: Channel-No membrane
Type no.: 670.001.015.85
EAN no.: 5705499001679

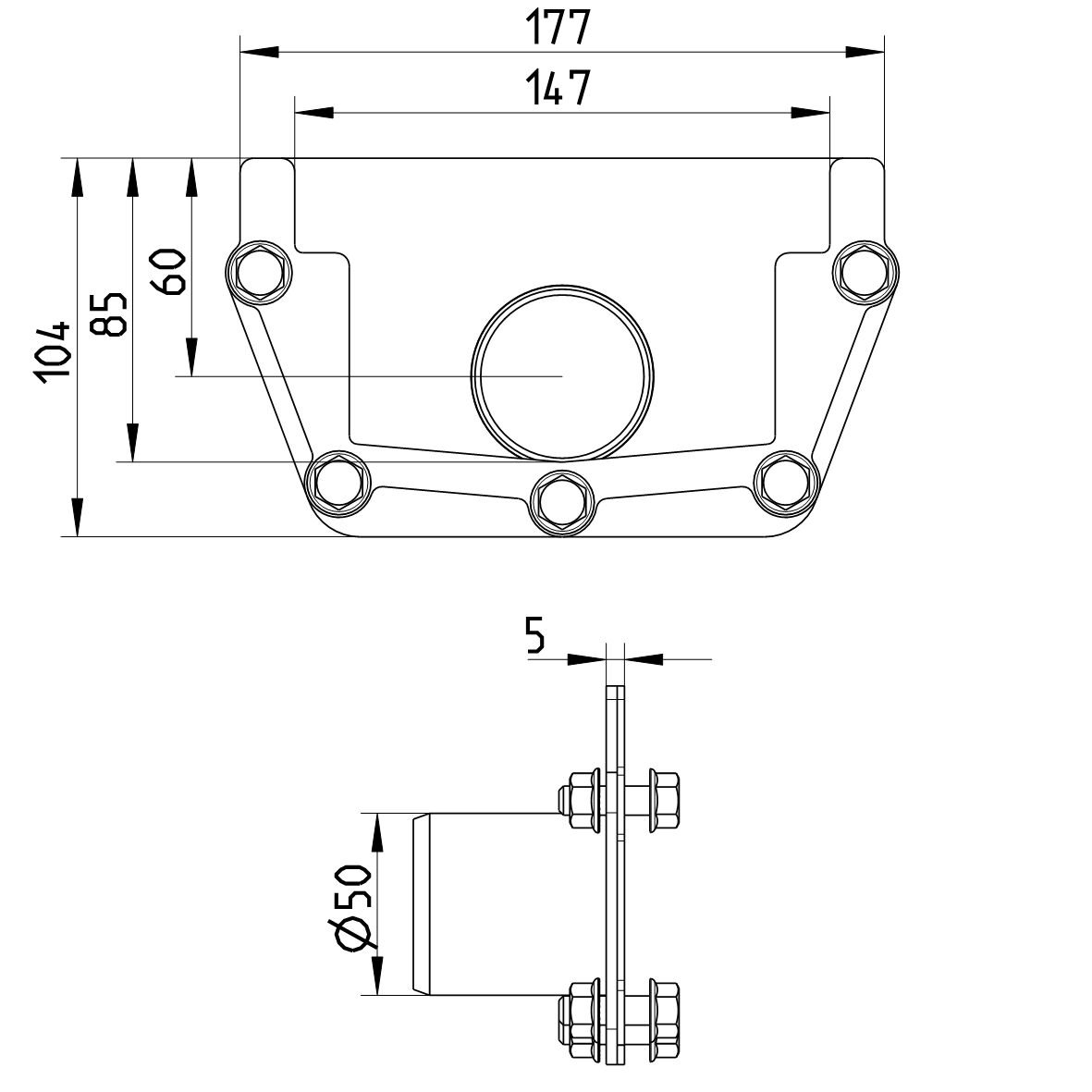

LINEA CHANNEL END PLATE Ø50 150x85
-Outlet: Ø50, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 104 |
Outlet Box | No |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Outlet Placement | End |
Weight (kg) | 0,57 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
