LINEA CHANNEL END PLATE Ø50 150x85 - (670.001.015.85 S)
×
![]()
Part Of the Series: Channel-No membrane
Type no.: 670.001.015.85 S
EAN no.: 5705499001686

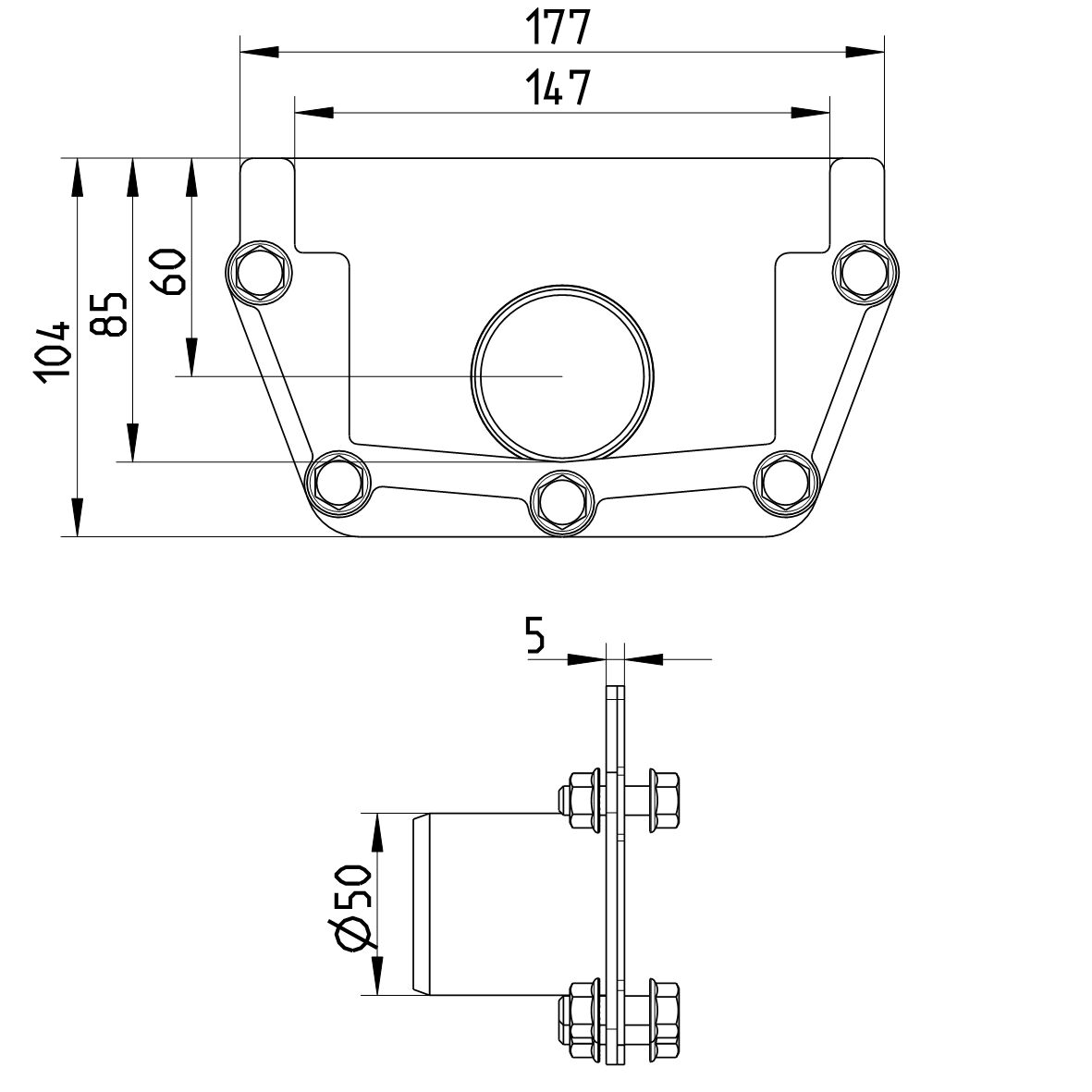

LINEA CHANNEL END PLATE Ø50 150x85
-Outlet: Ø50, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 104 |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Weight (kg) | 0,57 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
