KITCHEN CHANNEL 500x500 - (664GH005-15)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664GH005-15
EAN no.: 5705499126082
Size: 500x500

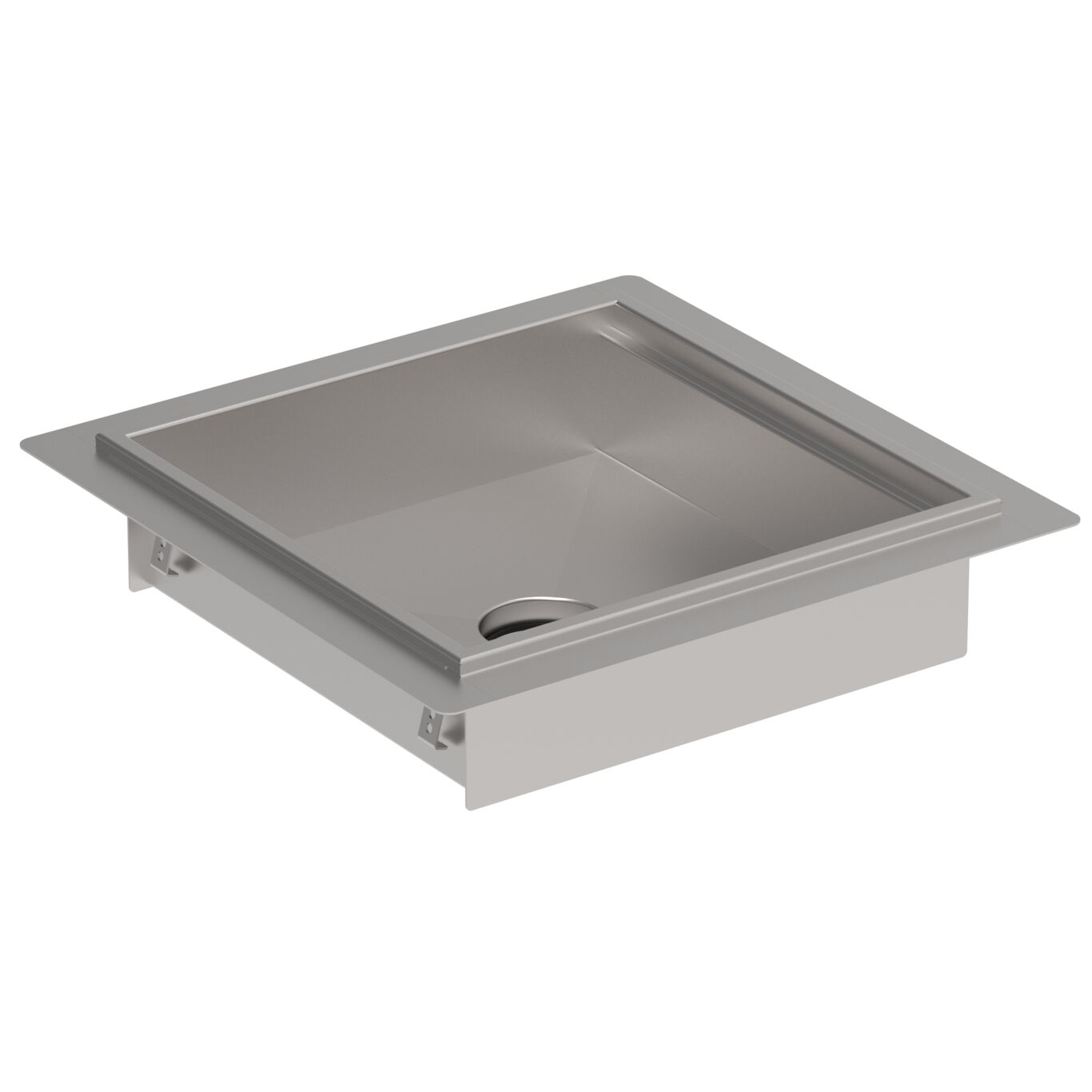

KITCHEN CHANNEL 500x500
-Floor: concrete, tiled and resin
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

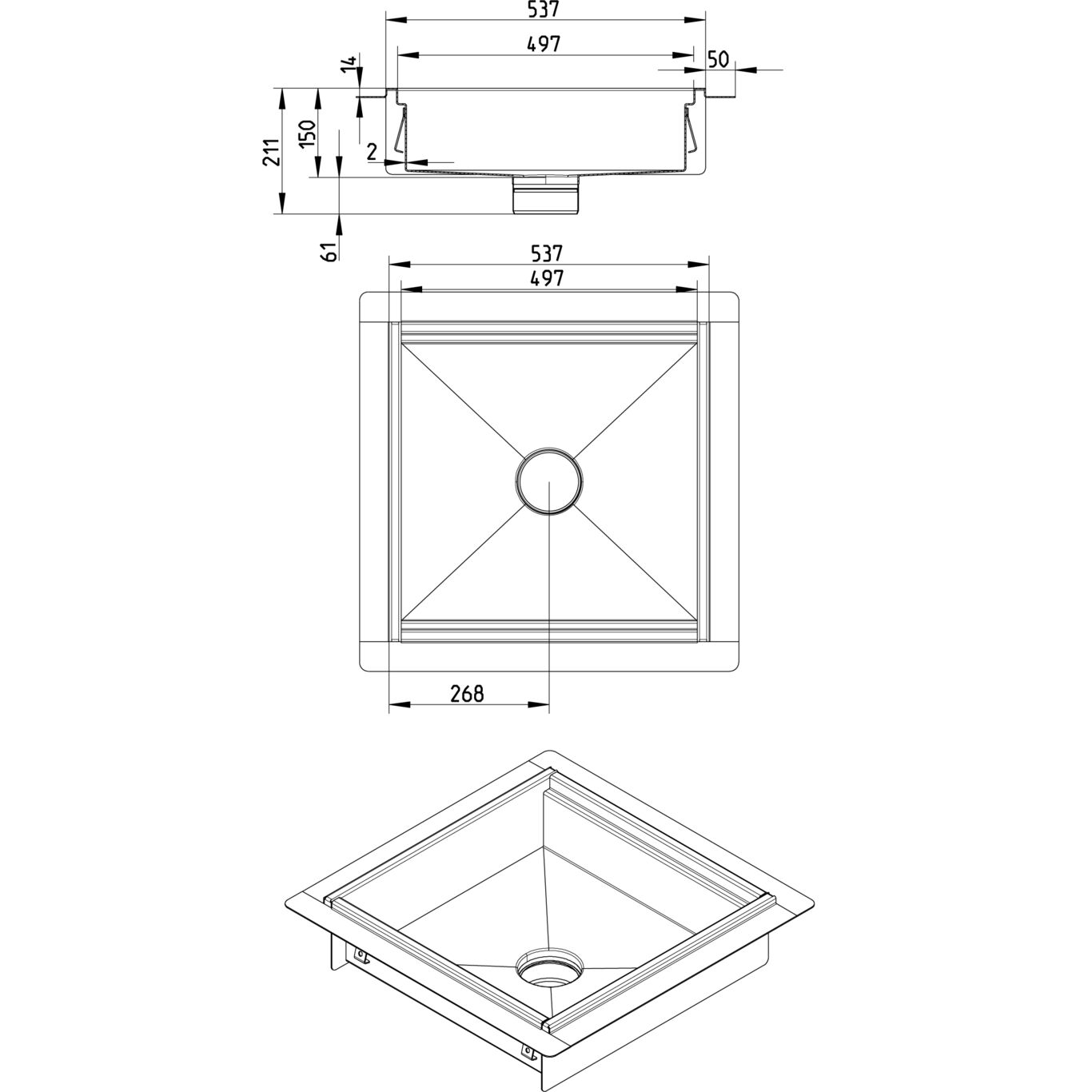

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 211 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 500x500 |
| Weight (kg) | 17,42 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
