COMPACT DRAIN 300X600 - (66CEG006-05.24)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 66CEG006-05.24
EAN no.: 5705499140170
Size: 300x600

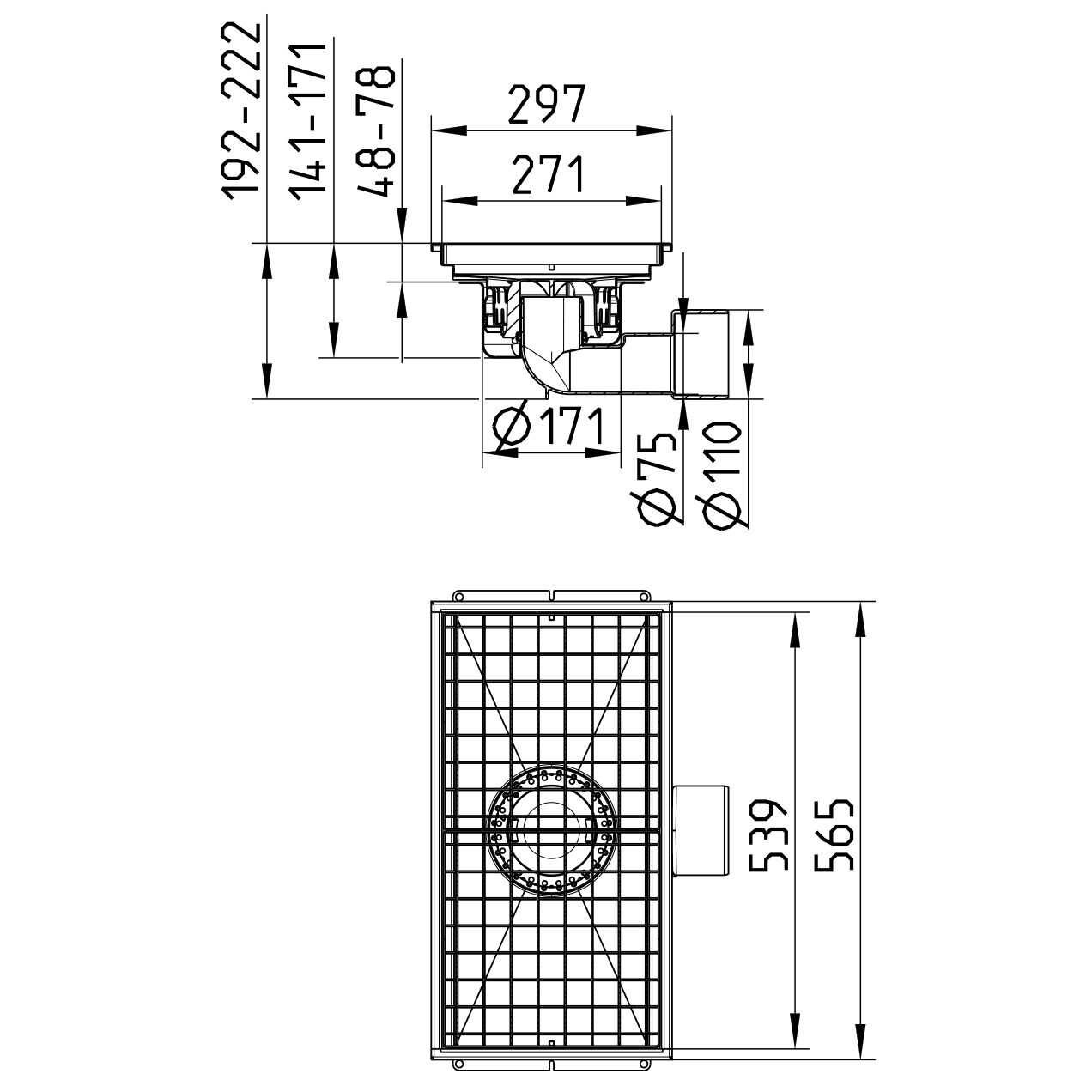

COMPACT DRAIN 300X600
-Grating: Mesh grating 33/33mm
-Floor: concrete and tiled
-Frame: 300x600mm
-Outlet: Ø75/100/110mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 222 |
| Membrane Type | Liquid / No Membrane |
| Minimum Height (mm) | 192 |
| Non-slip | R12 |
| Number of Inlets | 0 |
| Outlet Direction | Horizontal / Vertical |
| Shape | Rectangular |
| Size (mm) | 300x600 |
| Weight (kg) | 7,73 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
