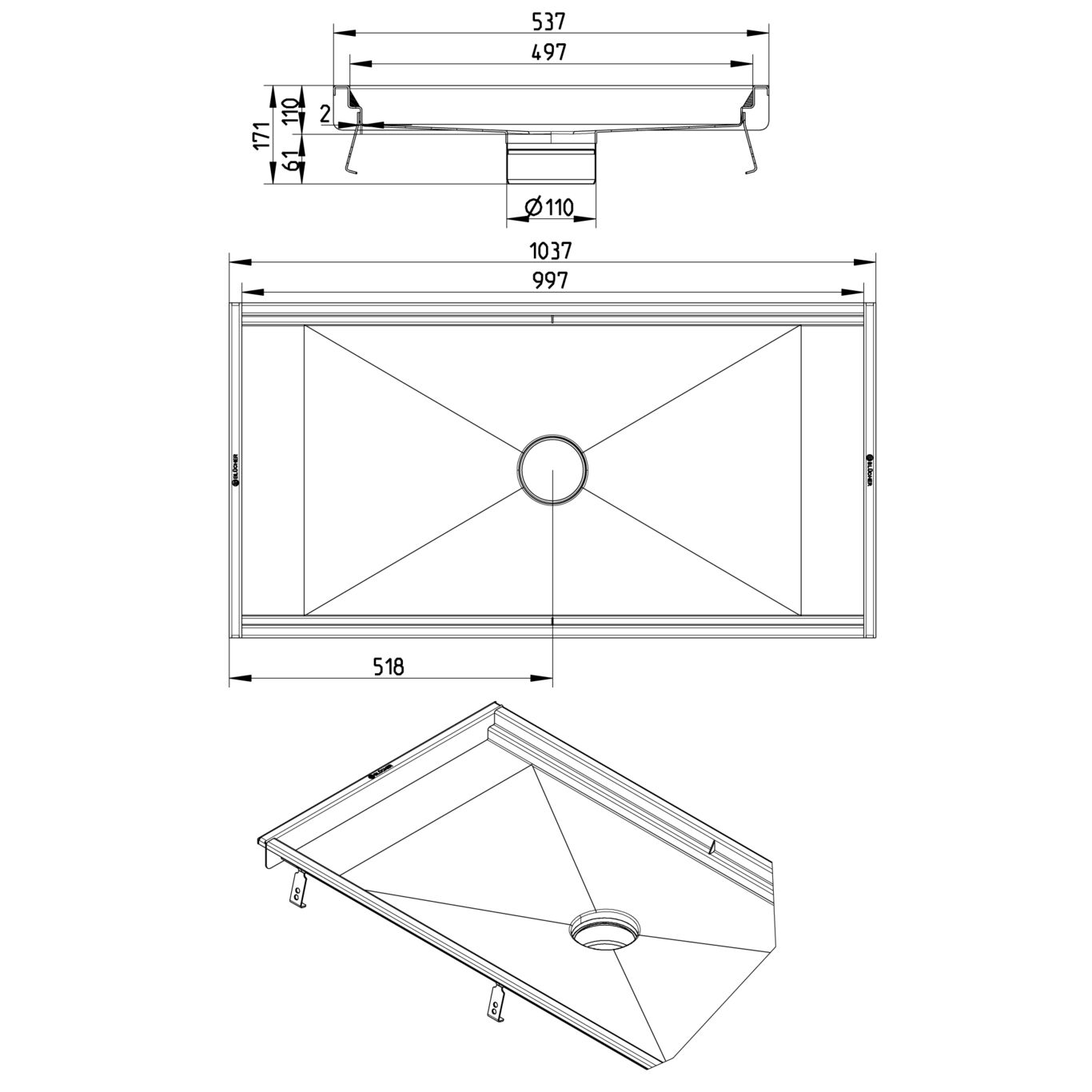

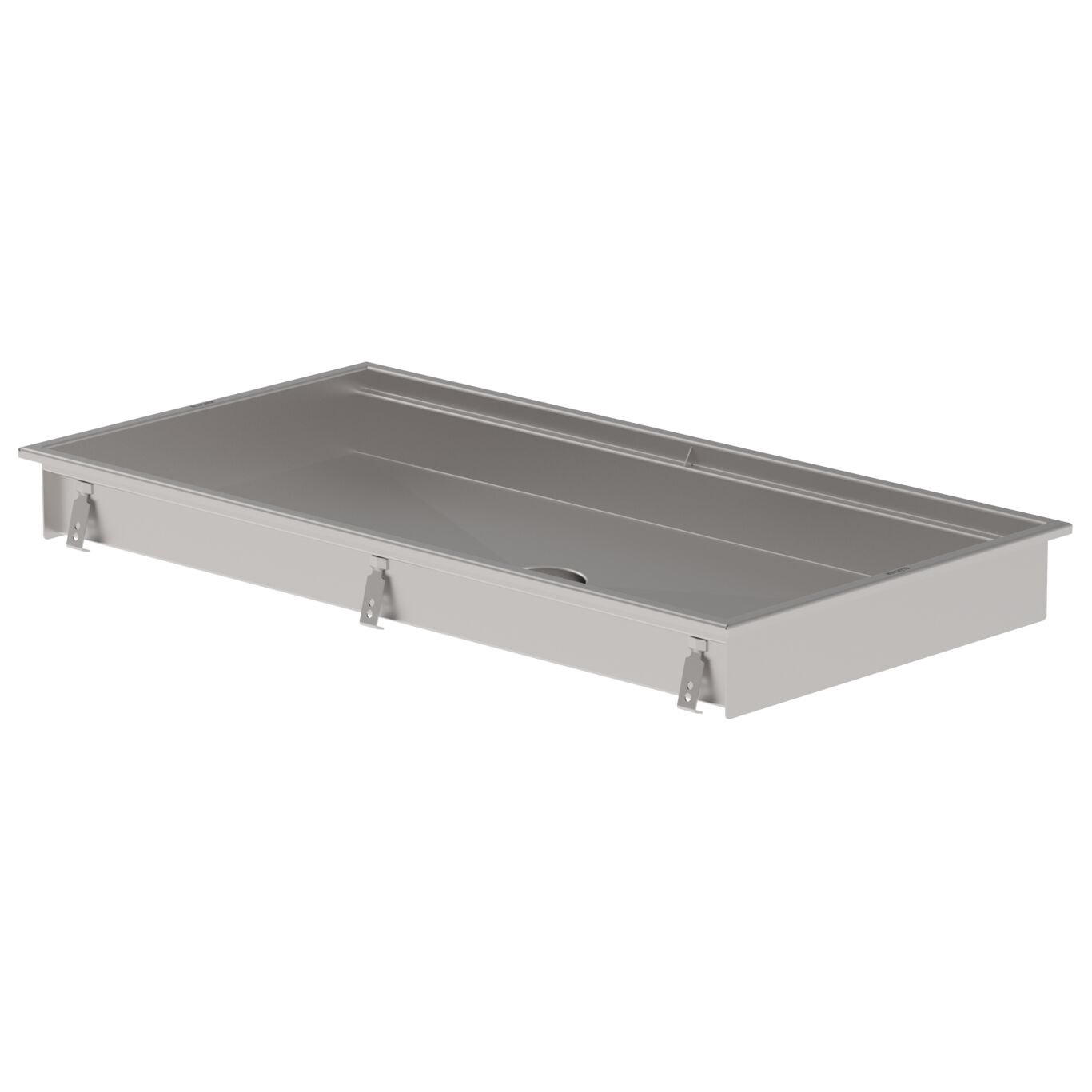

KITCHEN CHANNEL 500x1000 - (660GH010-11)
Part Of the Series: Kitchen channel-No membrane
Type no.: 660GH010-11
EAN no.: 5705499127881
Size: 500x1000
KITCHEN CHANNEL 500x1000
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled / Resin |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Minimum Height (mm) | 171 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Rectangular |
Size (mm) | 500x1000 |
Weight (kg) | 27,62 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
