SHOWER CHANNEL ART DECO 700 - (184.070.000.10 B)
×
![]()
Part Of the Series: Shower channel-No membrane
Type no.: 184.070.000.10 B
EAN no.: 5705499140279
VVS no.: 155095107

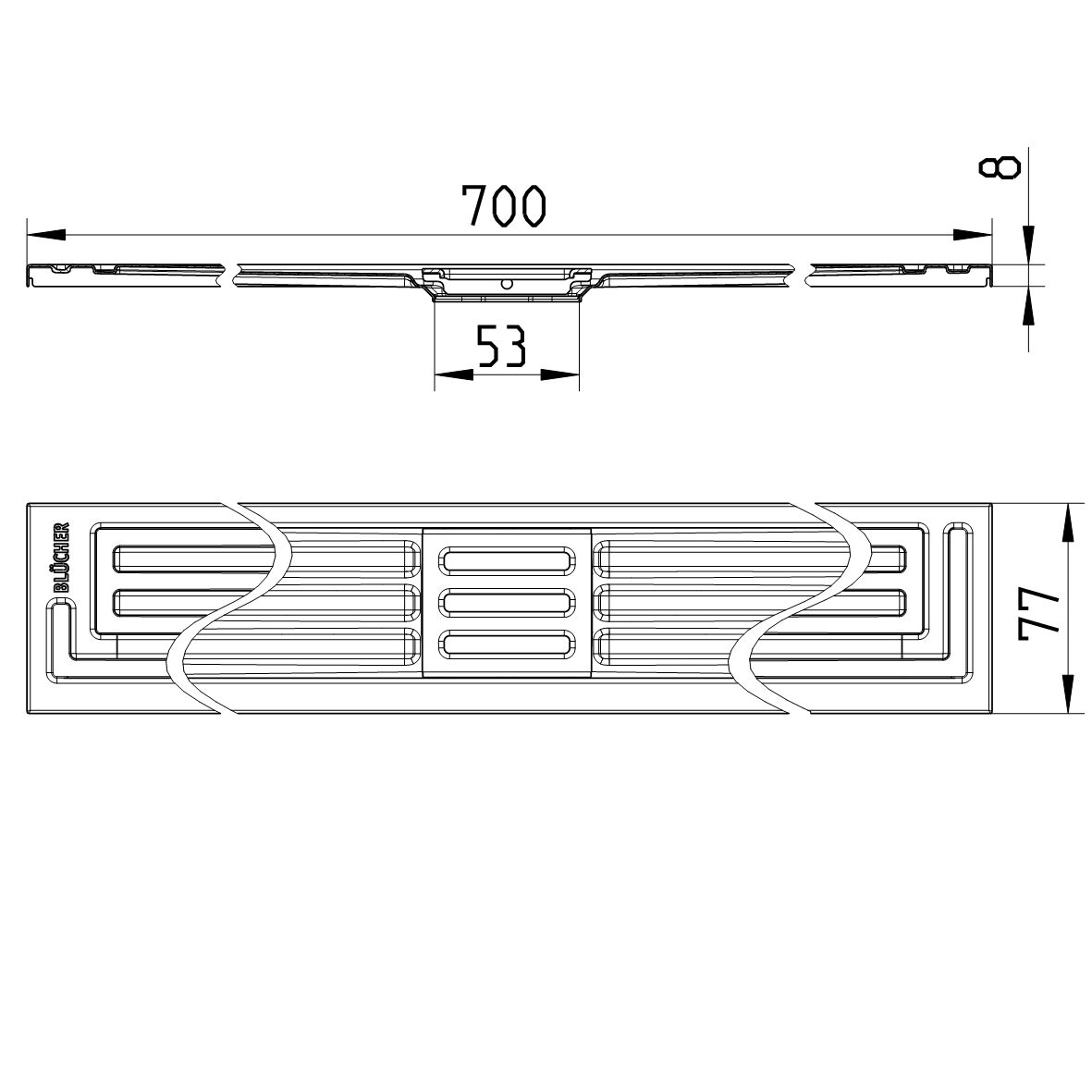

Size: 75x700

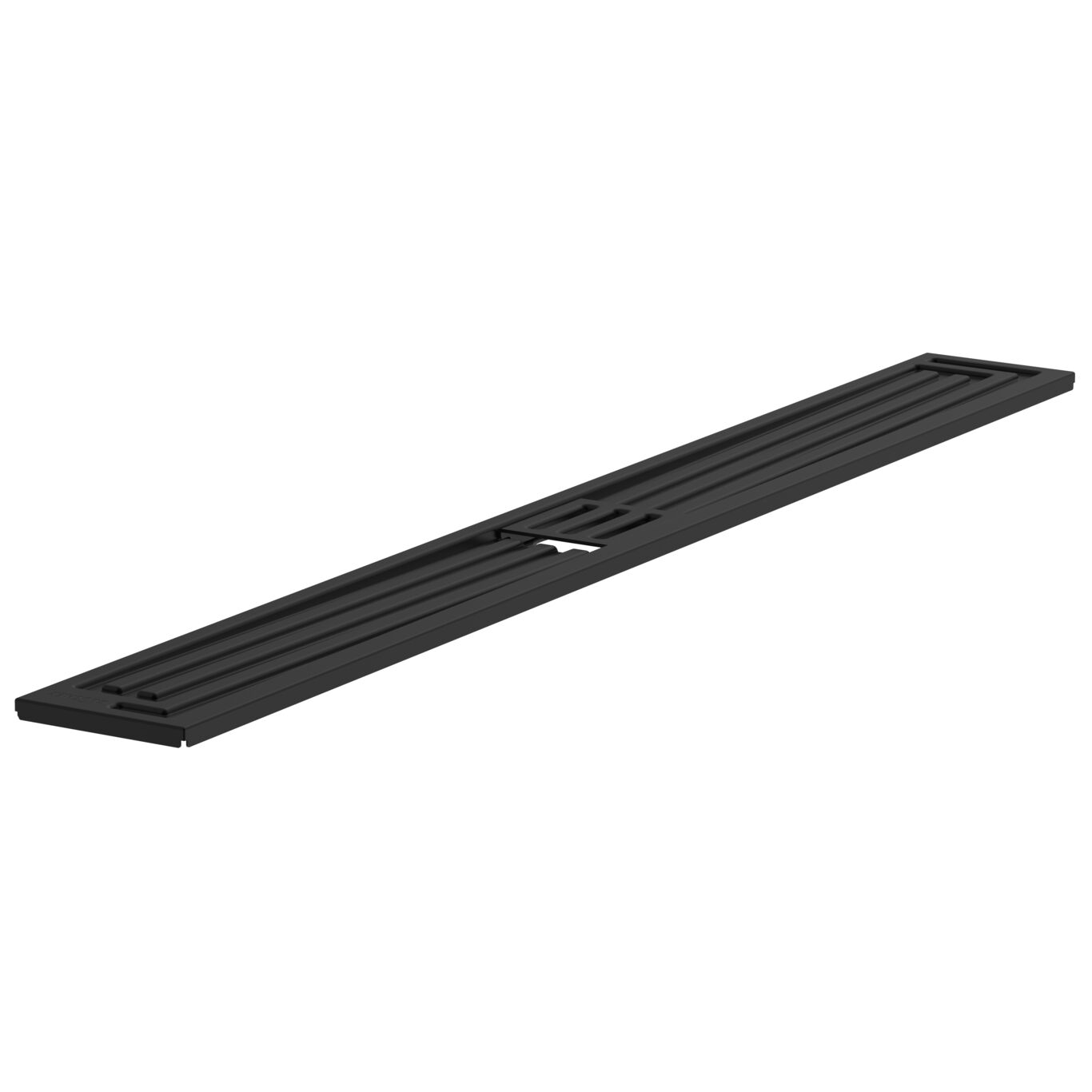

SHOWER CHANNEL ART DECO 700
- For use with Art Deco accessories for membranes
- For installation along wall
- Floor: concrete and tiled
- Frame: rectangular
- Colour: Black
- Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Outlet Direction | Vertical |
| Outlet Placement | Center |
| Shape | Rectangular |
| Size (mm) | 75x700 |
| Weight (kg) | 0,46 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
