SLOT CHANNEL 8x3000 END OUTLET - (677AN030-00BA)
×
![]()
Part Of the Series: Slot channel-Liquid membrane
Type no.: 677AN030-00BA
EAN no.: 5705499128307
Size: 8x3000
SLOT CHANNEL 8x3000 END OUTLET
-Floor: concrete, tiled and resin
-Liquid membrane
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI304/EN1.4301

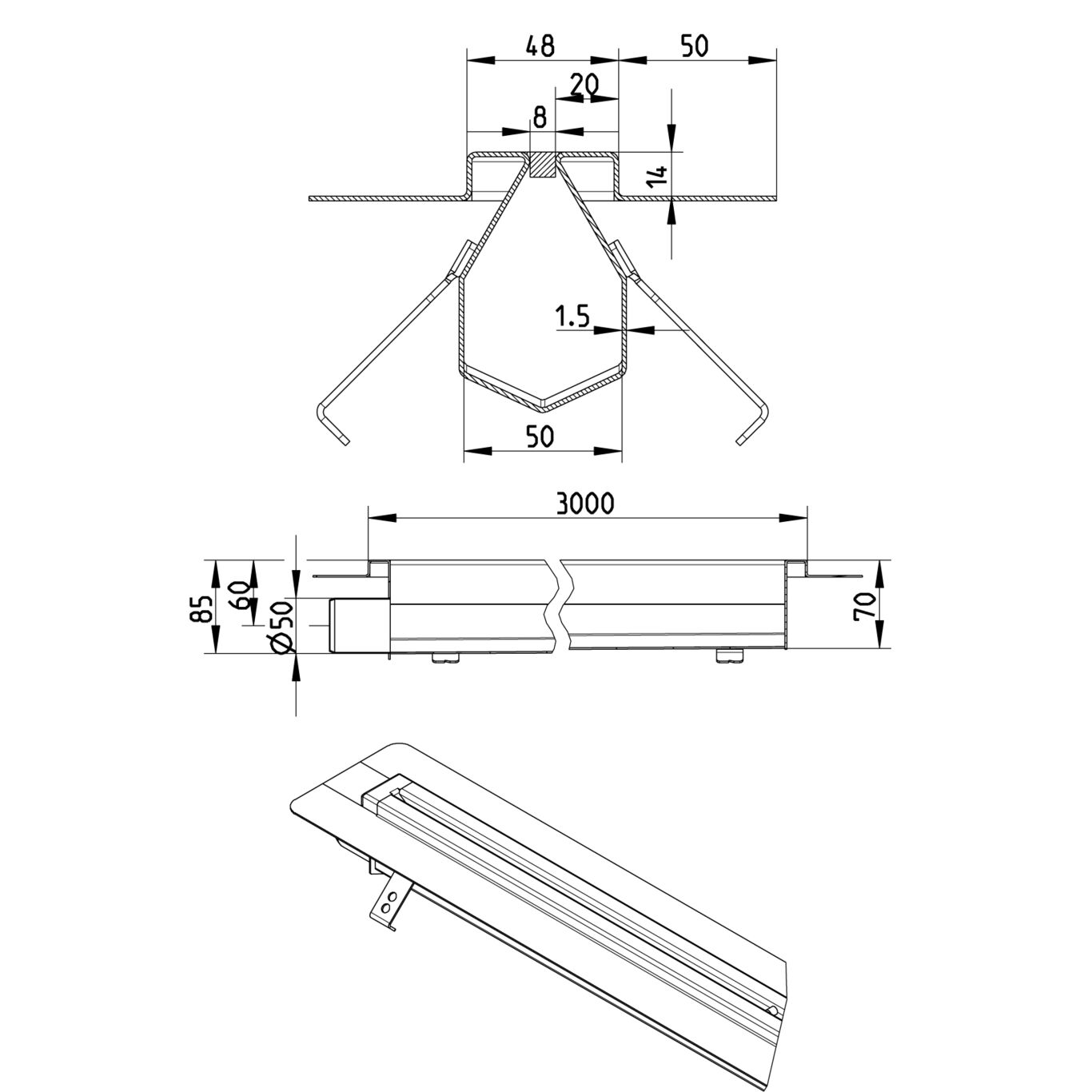

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 85 |
| Outlet Box | No |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal |
| Outlet Placement | End |
| Shape | Rectangular |
| Size (mm) | 8x3000 |
| Weight (kg) | 13,14 |
-
