INDUSTRIAL DRAIN - (760.503.110 S)
Part Of the Series: Drain-No membrane-305
Type no.: 760.503.110 S
EAN no.: 5705499109559
VVS no.: 153001316
LVI no.: 3303527
Size: Ø305

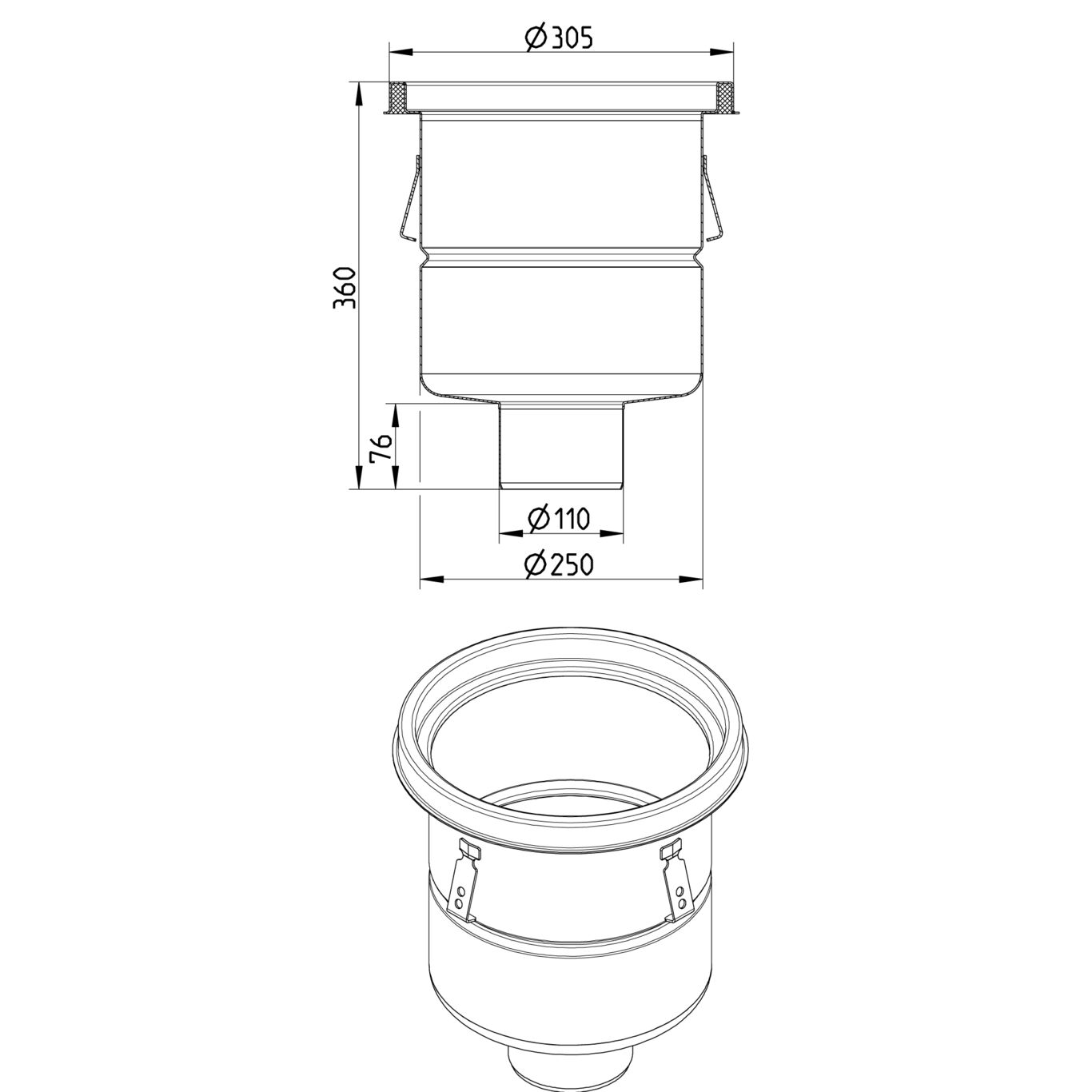

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø305mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Floor | Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 360 |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Round |
Size (mm) | Ø305 |
Weight (kg) | 5,66 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
