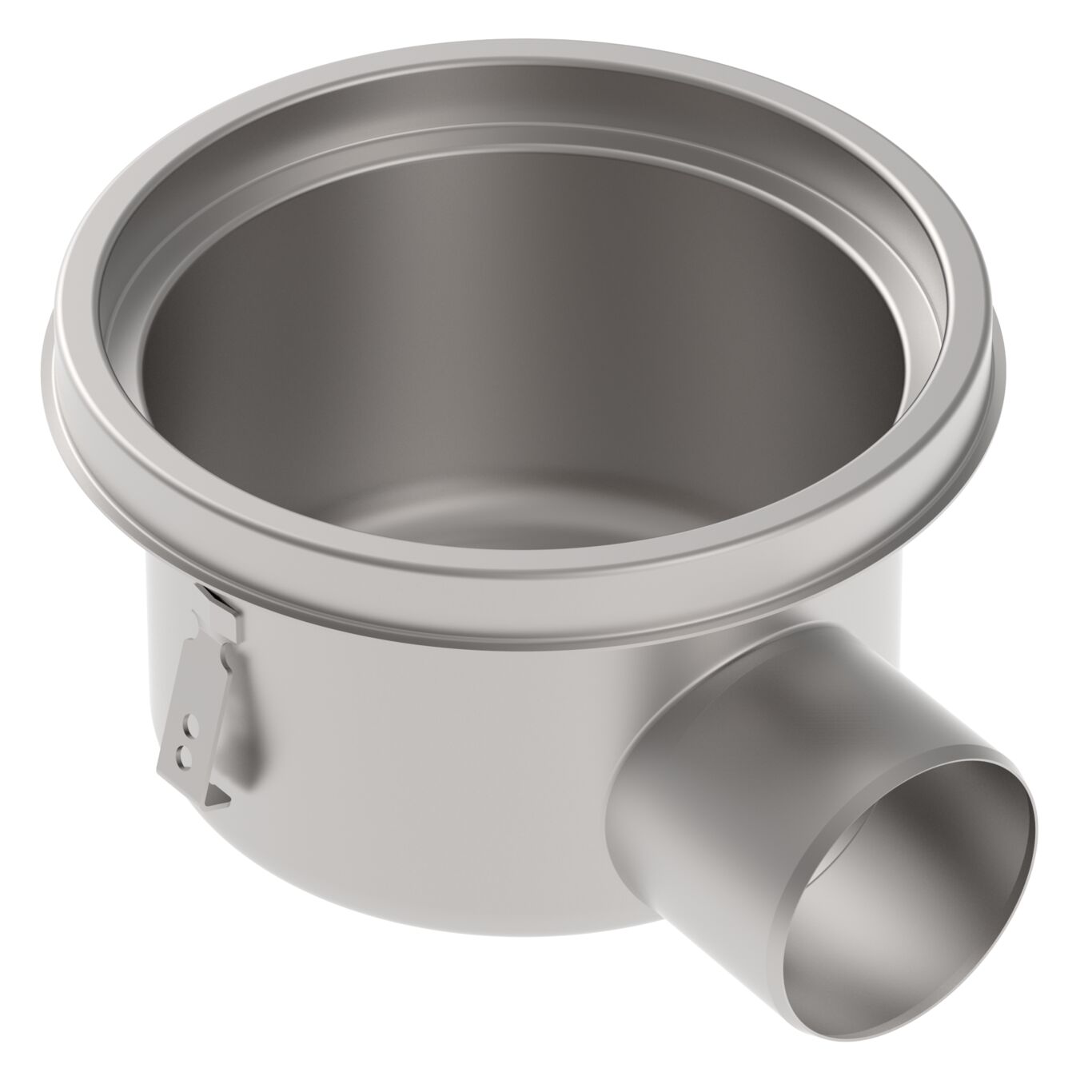

INDUSTRIAL DRAIN, LOW - (726.503.110 S)
Part Of the Series: Drain-No membrane-305
Type no.: 726.503.110 S
EAN no.: 5705499108996
VVS no.: 153013316
LVI no.: 3303666
Size: Ø305
INDUSTRIAL DRAIN, LOW
-Floor: resin
-Frame: Ø305mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Floor | Resin |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Membrane Type | No Membrane |
Minimum Height (mm) | 177 |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Shape | Round |
Size (mm) | Ø305 |
Weight (kg) | 4,70 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
