ADJUSTABLE SHOWER DRAIN CIRCLE - (211.300.075)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 211.300.075
EAN no.: 5705499105063
VVS no.: 153614213
NRF no.: 3394576
Size: Ø155

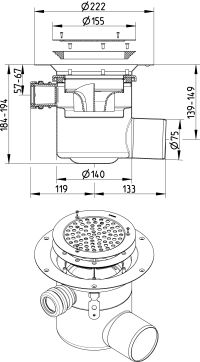

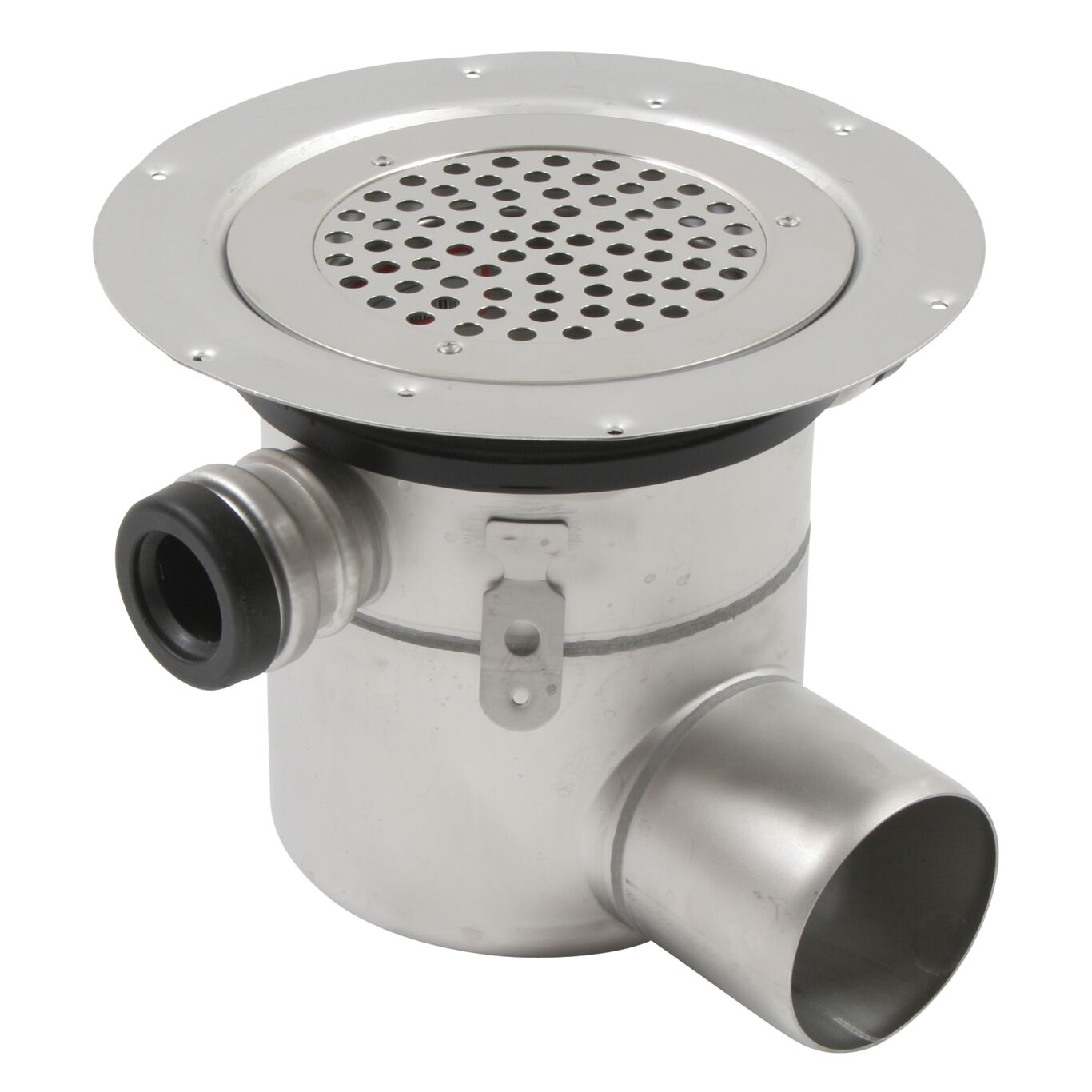

ADJUSTABLE SHOWER DRAIN CIRCLE
-With side inlets
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 194 |
| Minimum Height (mm) | 184 |
| Number of Inlets | 3 (Ø32/40mm) |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 1,85 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
HACCP Food Safety Programme - Australasia
BLÜCHER® Drains EPD
SE - RISE 0193-98
FI - Tyyppihyväksyntäpäätös EUF129-23001919-TH1
NO - PS3199 Declaration of Conformity - BSEN1253-002 DE - TÜV Rheinland - R 60178467 0001 Declaration of Conformity - EN1253-001 PL - Hygienic Certificate - All Products
