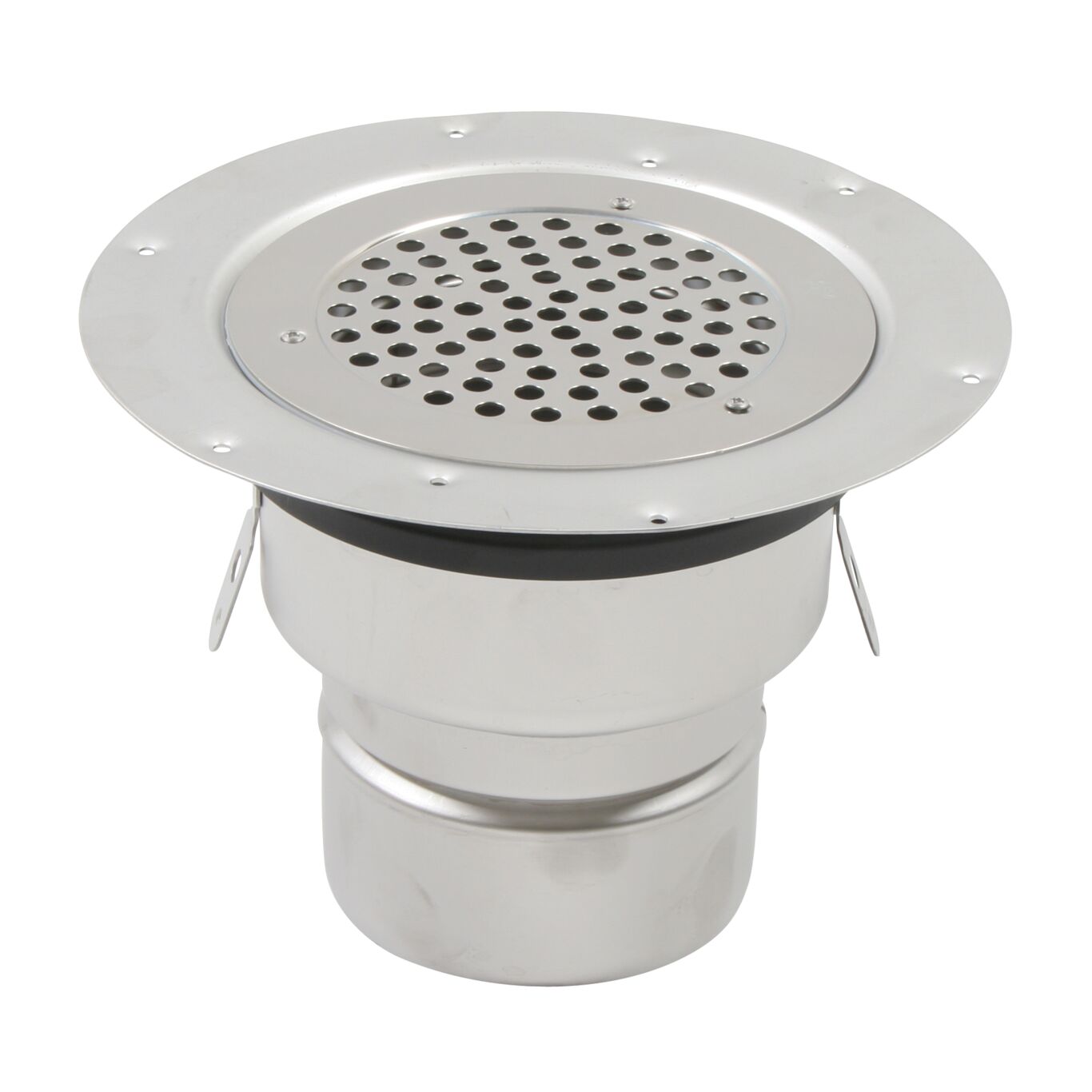

ADJUSTABLE SHOWER DRAIN CIRCLE - (250.300.110 S)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 250.300.110 S
EAN no.: 5705499105131
VVS no.: 153612146
LVI no.: 3304233

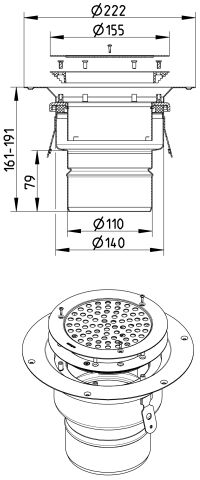

Size: Ø155
ADJUSTABLE SHOWER DRAIN CIRCLE
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 191 |
| Minimum Height (mm) | 161 |
| Number of Inlets | 0 |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 1,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
