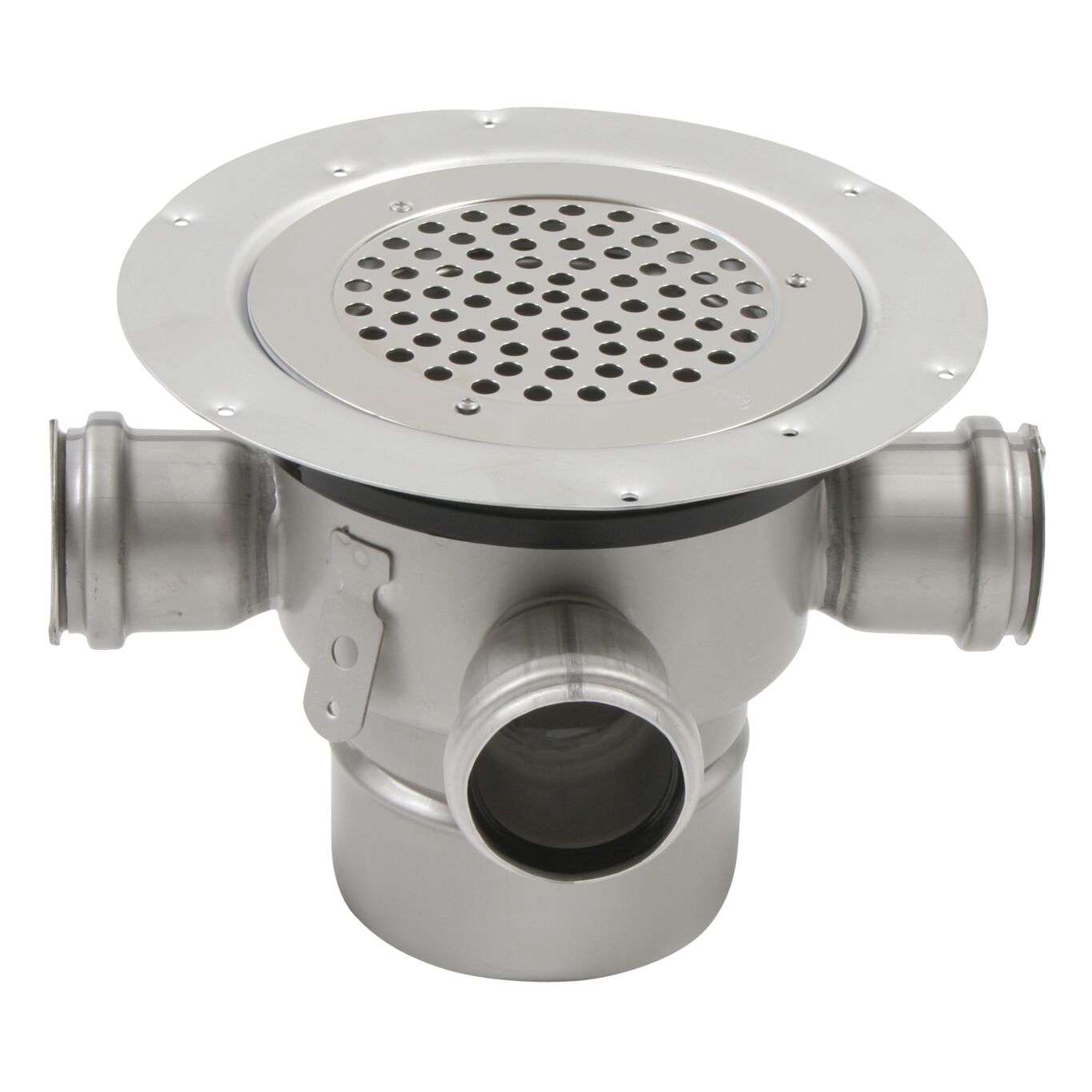

ADJUSTABLE SHOWER DRAIN CIRCLE - (251.303.110)
Part Of the Series: Drain-Vinyl-155
Type no.: 251.303.110
EAN no.: 5705499123555
LVI no.: 3305778
Size: Ø155
ADJUSTABLE SHOWER DRAIN CIRCLE
-With side inlets Ø50mm
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301

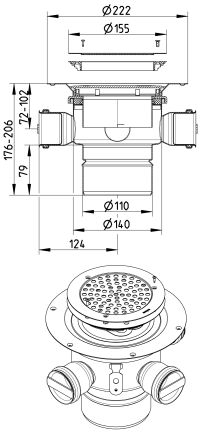

Product Specification | |
---|---|
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 206 |
Minimum Height (mm) | 176 |
Number of Inlets | 3 (Ø50mm) |
Number of Screw Holes | 3 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Round |
Size (mm) | Ø155 |
Weight (kg) | 1,67 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
