ADJUSTABLE SHOWER DRAIN CIRCLE, LOW - (214.300.050 S)
Part Of the Series: Drain-Vinyl-155
Type no.: 214.300.050 S
EAN no.: 5705499118087
VVS no.: 153314142
Size: Ø155

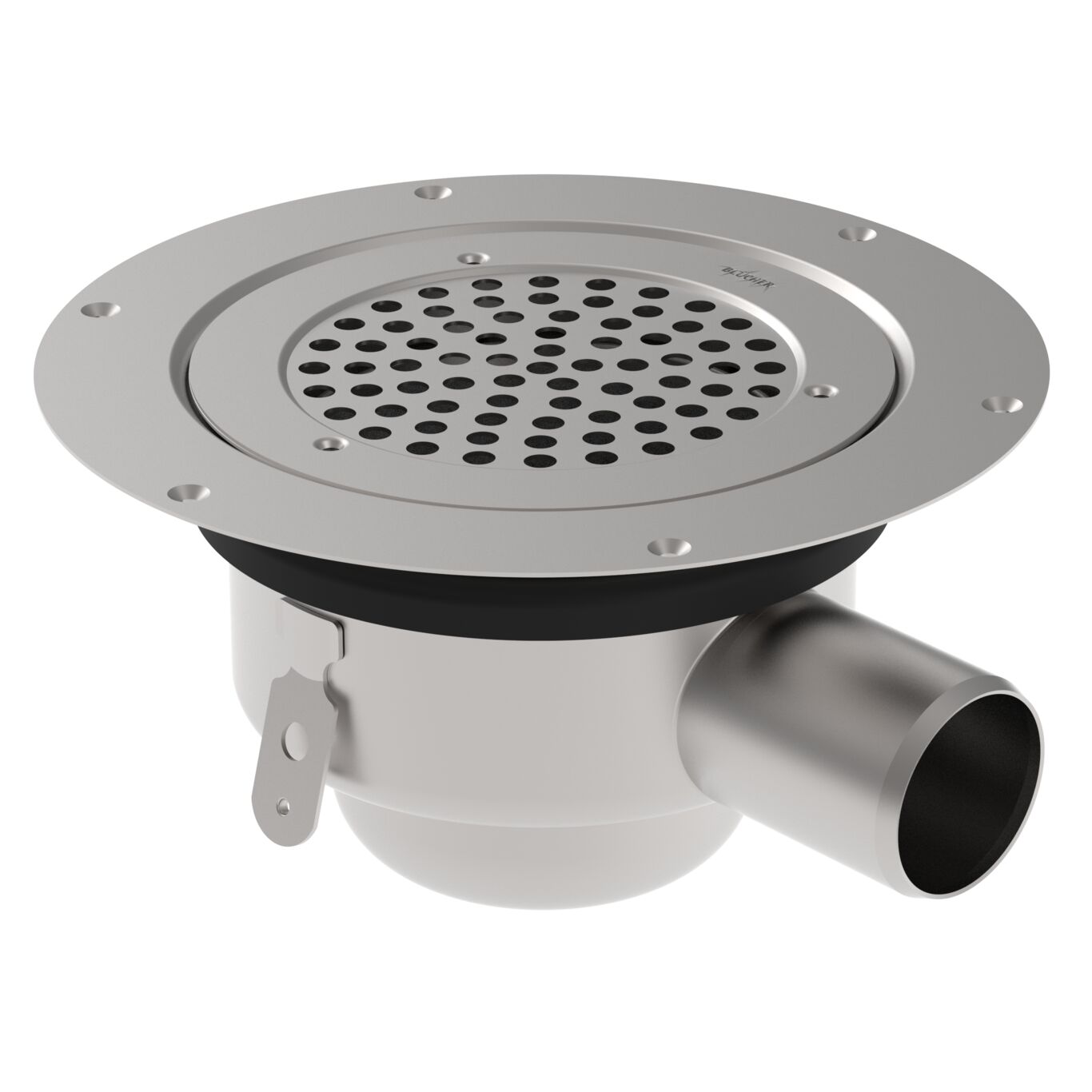

ADJUSTABLE SHOWER DRAIN CIRCLE, LOW
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø50mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Maximum Height (mm) | 130 |
Minimum Height (mm) | 120 |
Number of Inlets | 0 |
Number of Screw Holes | 3 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Shape | Round |
Size (mm) | Ø155 |
Weight (kg) | 1,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
