SHOWER DRAIN CIRCLE - (261.300.110)
×
![]()
Part Of the Series: Drain-Vinyl-155
Type no.: 261.300.110
EAN no.: 5705499105247
VVS no.: 153610416
NRF no.: 3394606
LVI no.: 3305829
Size: Ø155

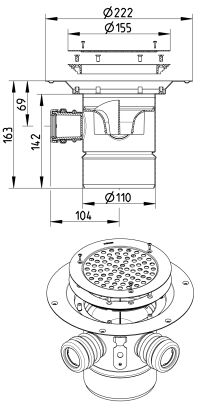

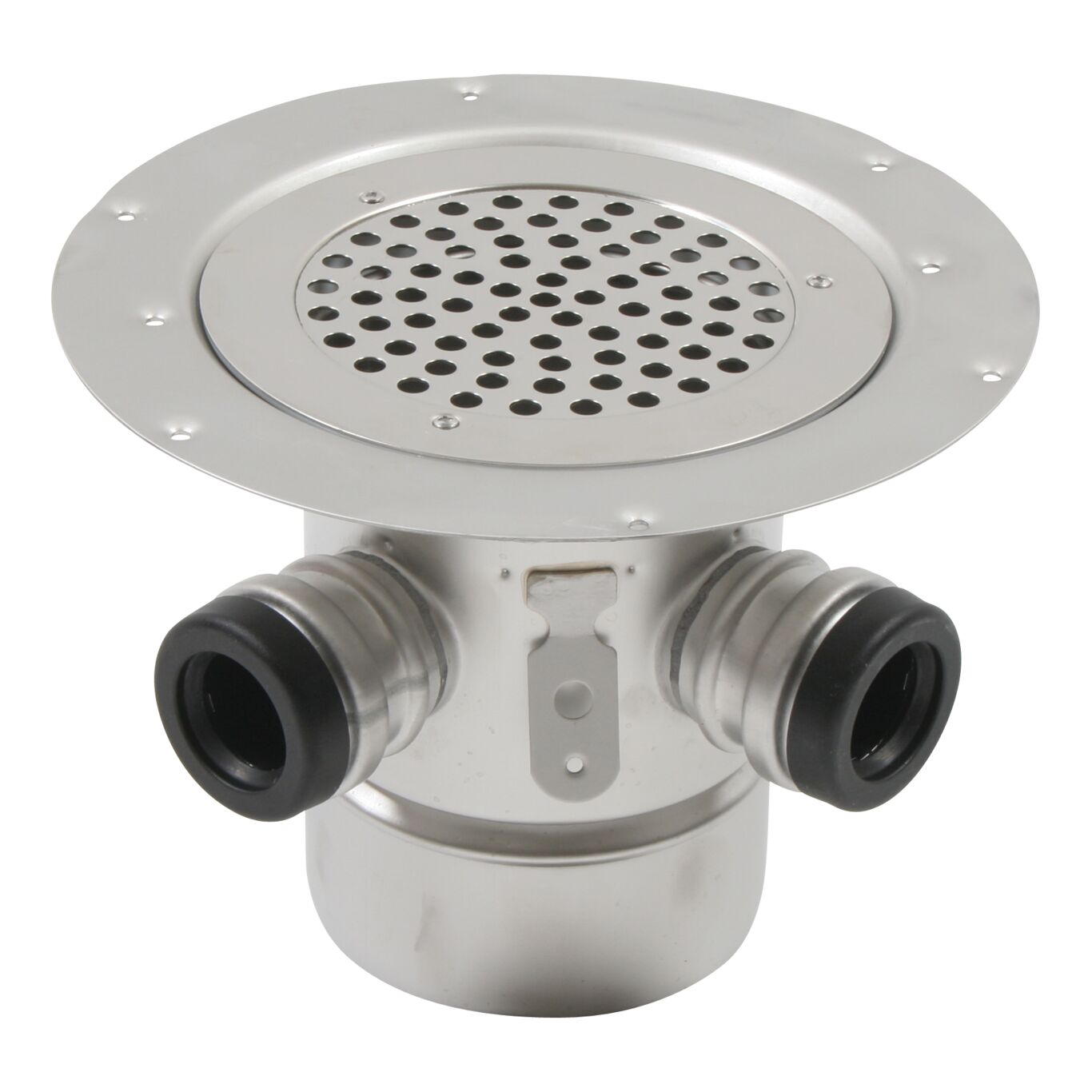

SHOWER DRAIN CIRCLE
-With side inlets
-Floor: vinyl
-Grating: Ø155mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Vinyl |
| Load Class EN1253 | K3 |
| Load Class EN1253 (kg) | K3 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 163 |
| Number of Inlets | 2 (Ø32/40mm) |
| Number of Screw Holes | 3 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø155 |
| Weight (kg) | 1,25 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
