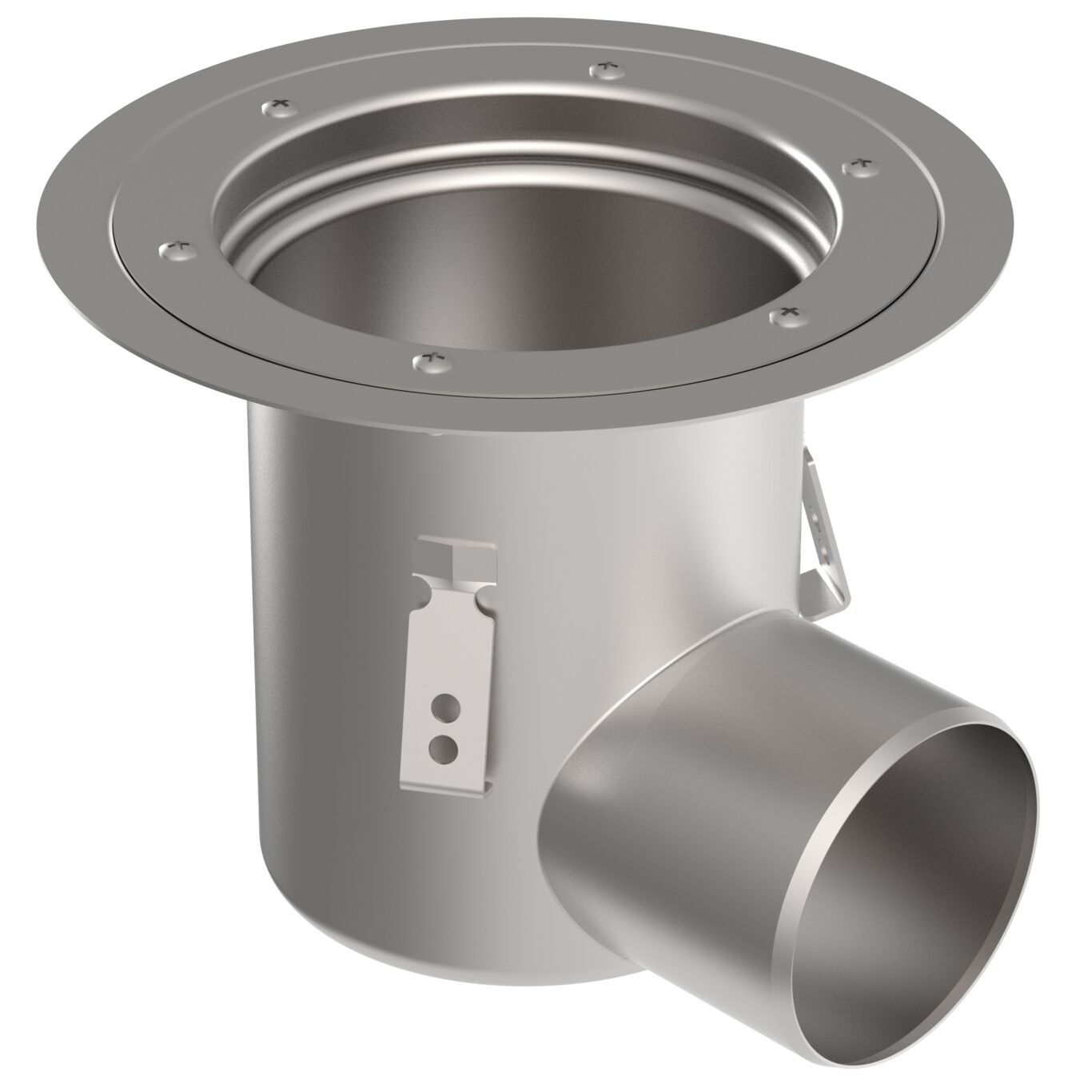

INDUSTRIAL DRAIN - (763.602.110 S)
Part Of the Series: Drain-Vinyl-232
Type no.: 763.602.110 S
EAN no.: 5705499110173
VVS no.: 153030116
LVI no.: 3303644

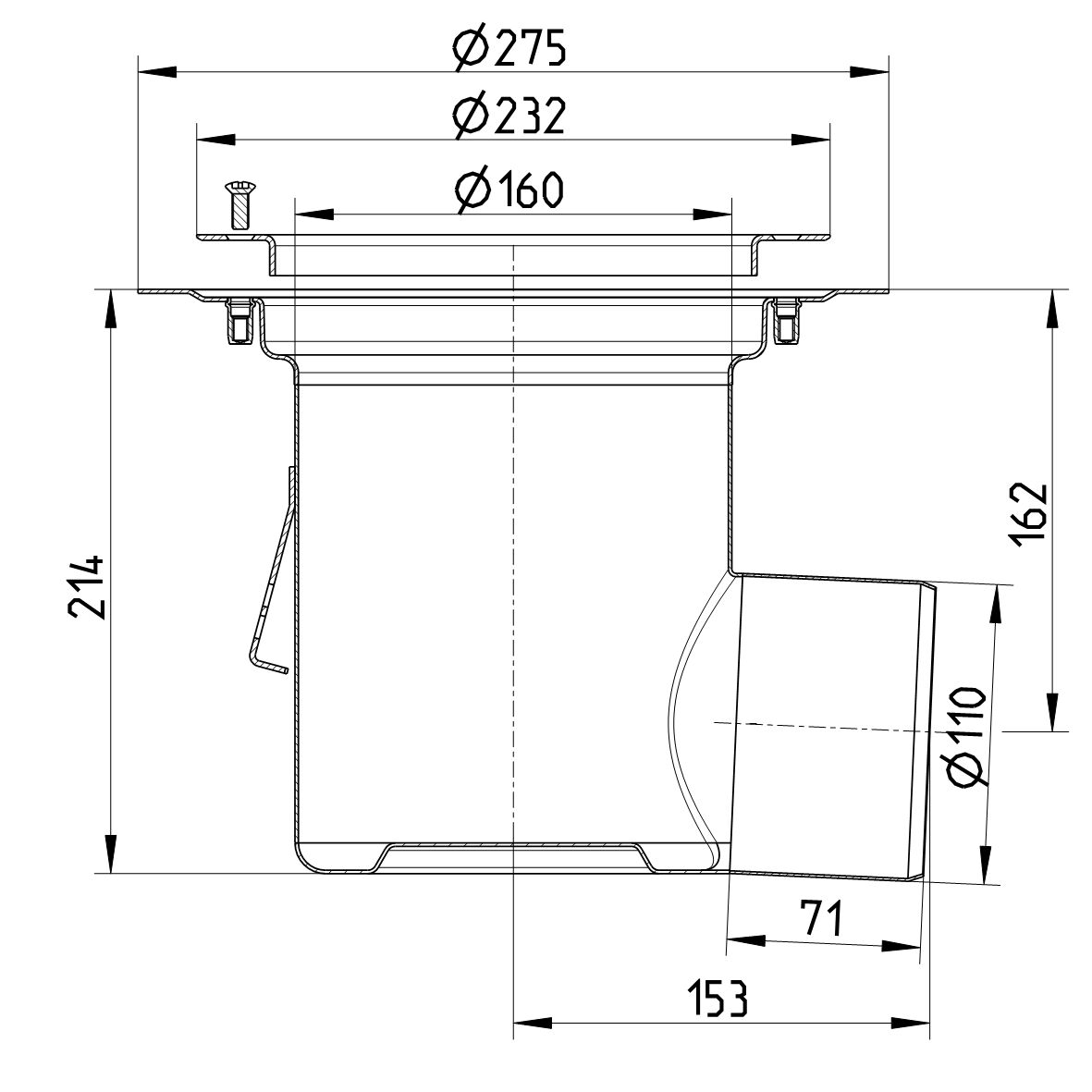

Size: Ø232
INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø232mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Adjustable | No |
Floor | Vinyl |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Minimum Height (mm) | 214 |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Shape | Round |
Size (mm) | Ø232 |
Weight (kg) | 2,31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
