INDUSTRIAL DRAIN - (763.603.110 S)
×
![]()
Part Of the Series: Drain-Vinyl-332
Type no.: 763.603.110 S
EAN no.: 5705499110197
VVS no.: 153030316
LVI no.: 3303646
Size: Ø332

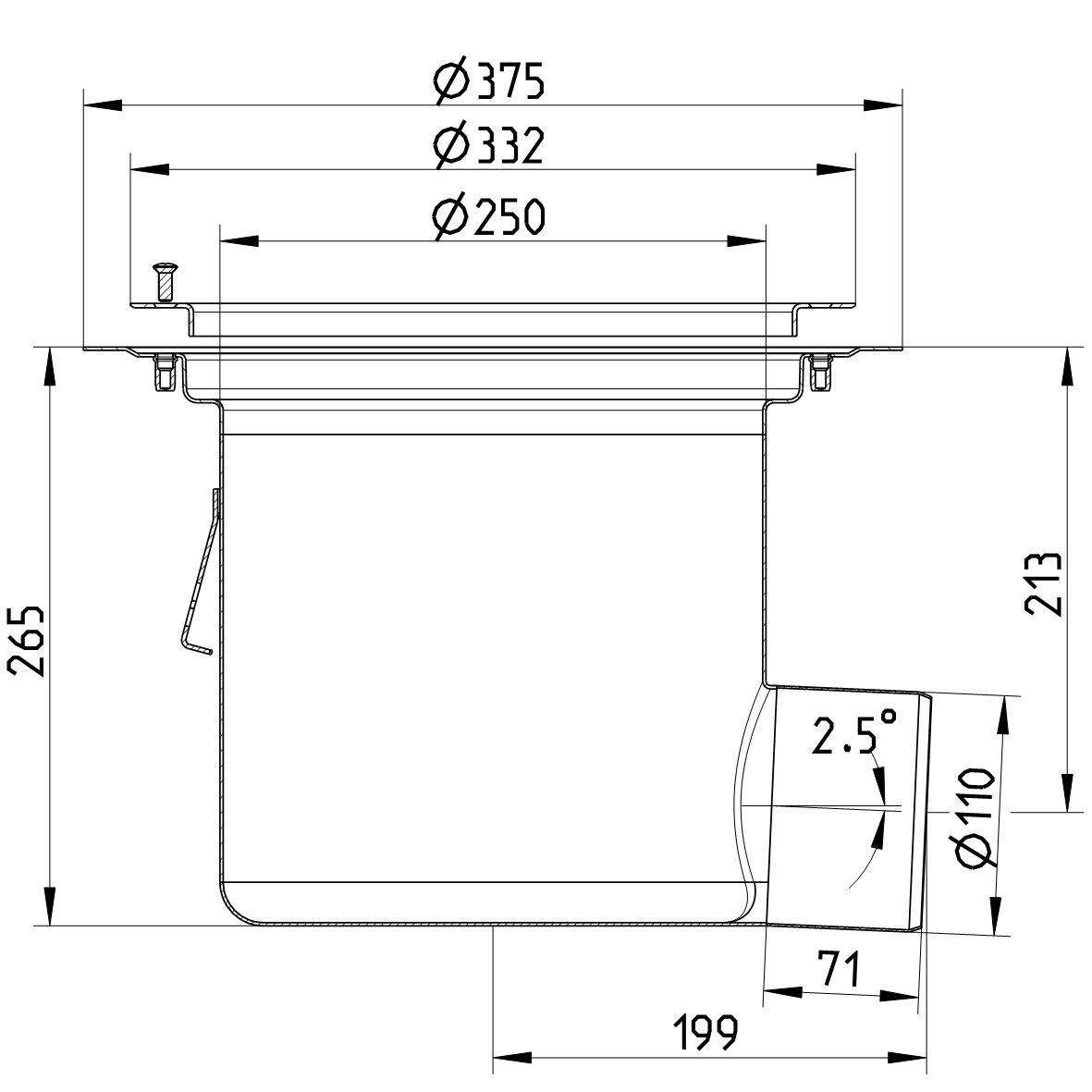

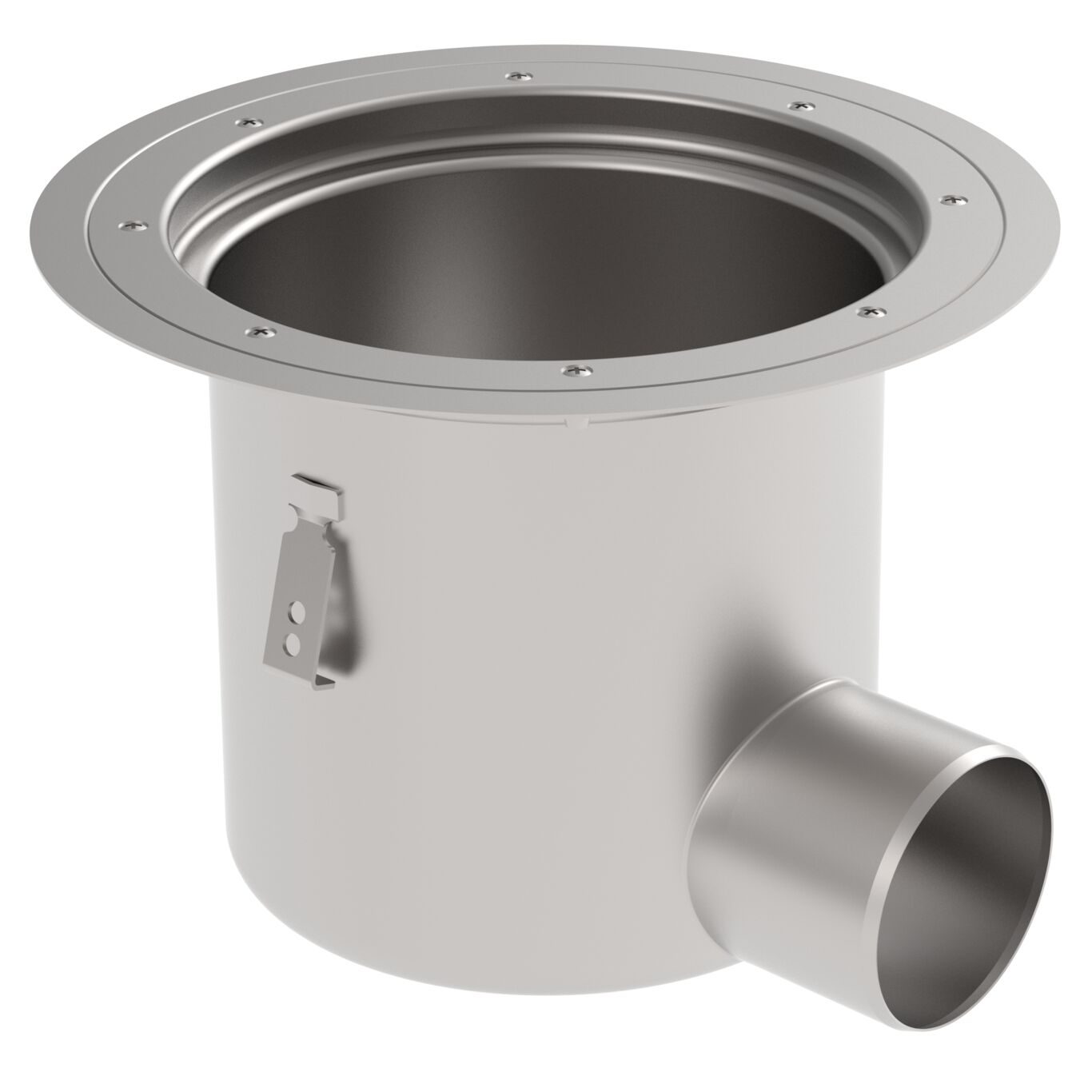

INDUSTRIAL DRAIN
-Floor: vinyl
-Frame: Ø332mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Vinyl |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 265 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø332 |
| Weight (kg) | 5,05 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
