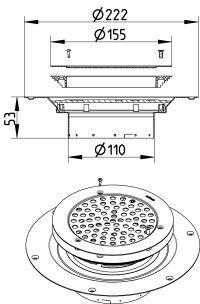

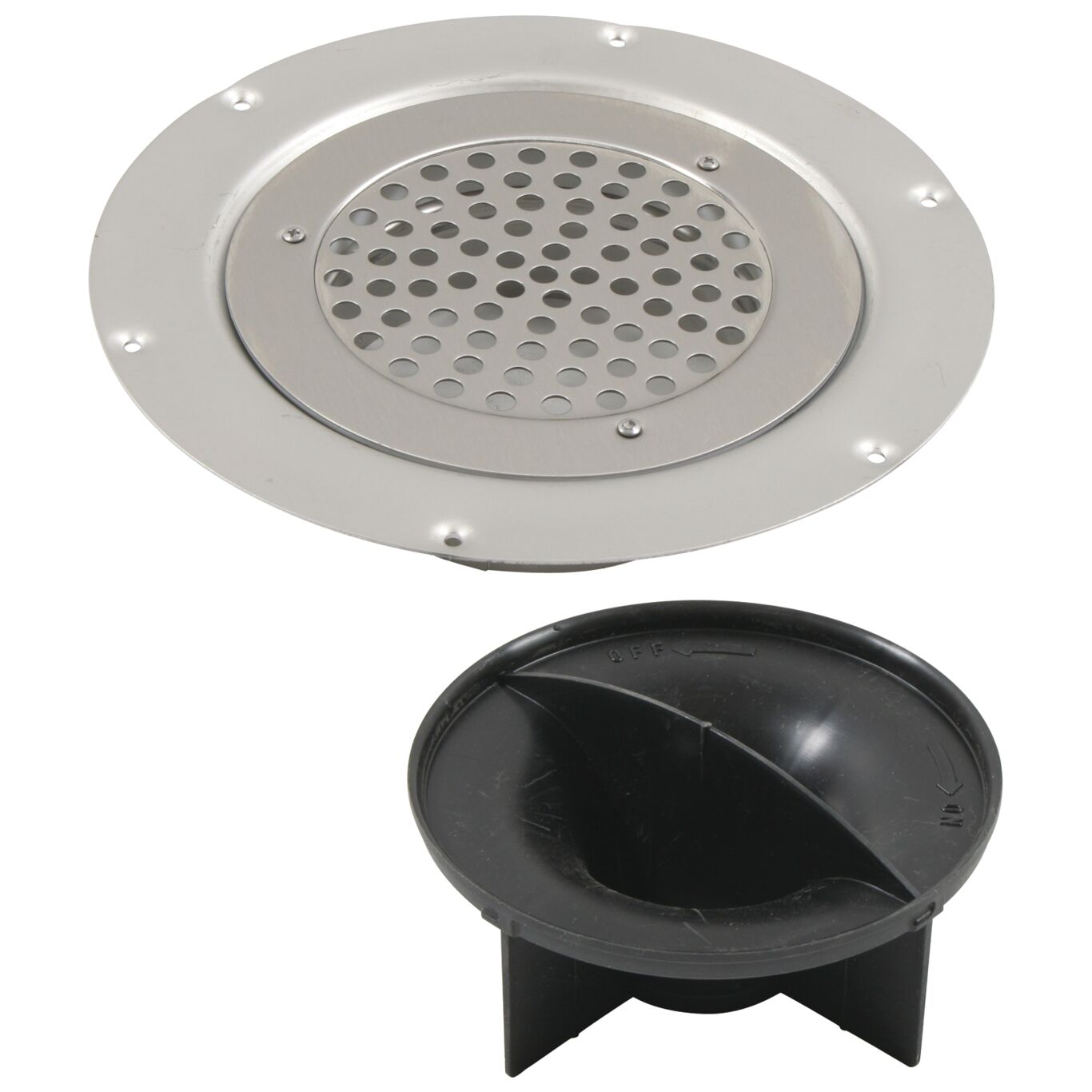

UPPER PART CIRCLE - (211.300.000)
Part Of the Series: Upper part-Vinyl-155
Type no.: 211.300.000
EAN no.: 5705499106978
VVS no.: 153614711
RSK no.: 7122075
Size: Ø155
UPPER PART CIRCLE
-No supporting ring
-Floor: vinyl
-Grating: Ø155mm
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Vinyl |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Minimum Height (mm) | 53 |
Number of Screw Holes | 3 |
Outlet Diameter (mm) | 110 |
Shape | Round |
Size (mm) | Ø155 |
Weight (kg) | 0,70 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
