ADJUSTABLE SHOWER DRAIN SQUARE - (310.320.050 V)
Part Of the Series: Drain-Liquid membrane-145
Type no.: 310.320.050 V
EAN no.: 5705499141696
Size: 145x145

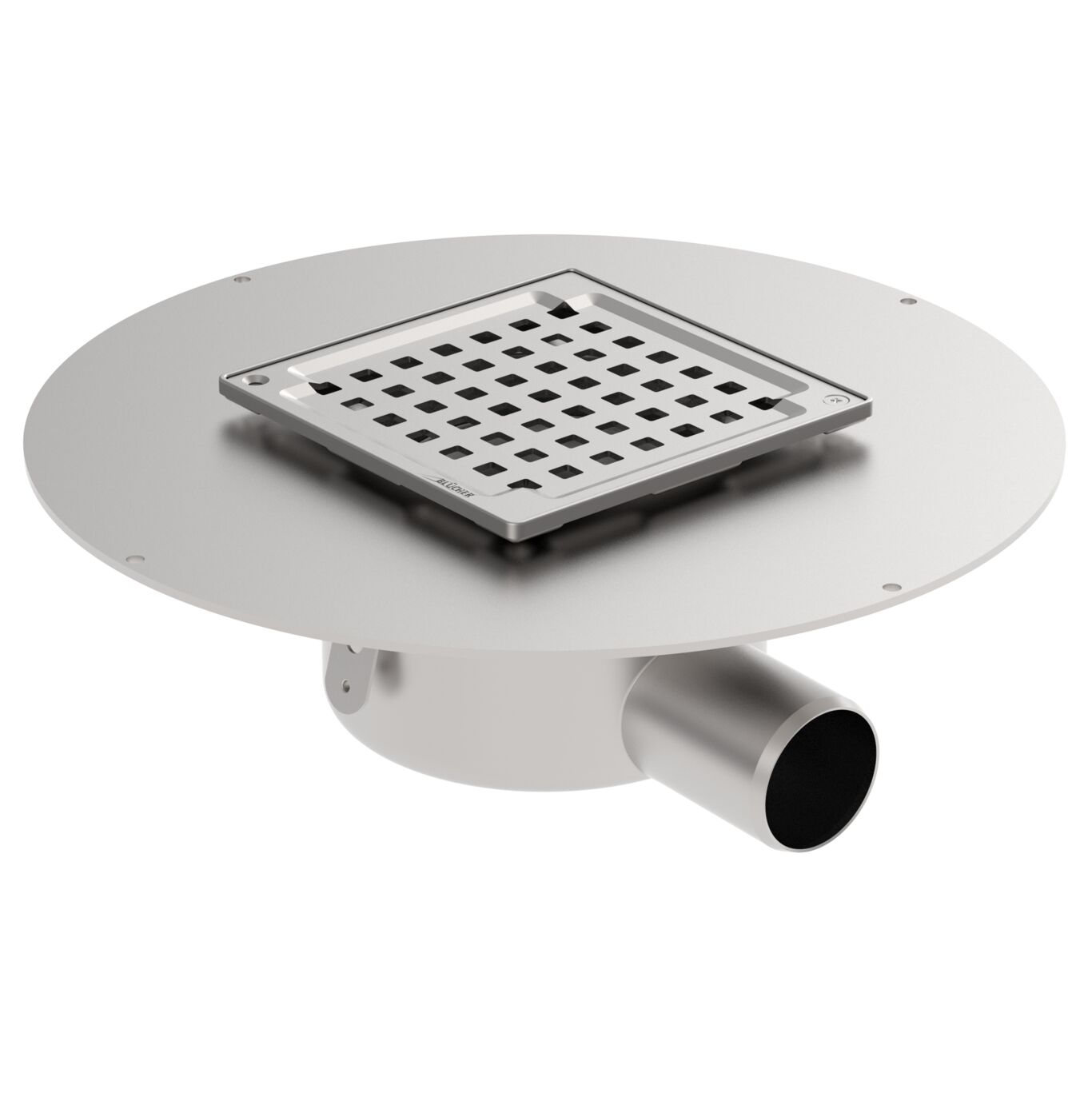

ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø50mm, horizontal
-Stainless Steel AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 179 |
Membrane Type | Liquid Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 50 |
Outlet Direction | Horizontal |
Shape | Square |
Size (mm) | 145x145 |
Weight (kg) | 3,40 |
-
Downloads
