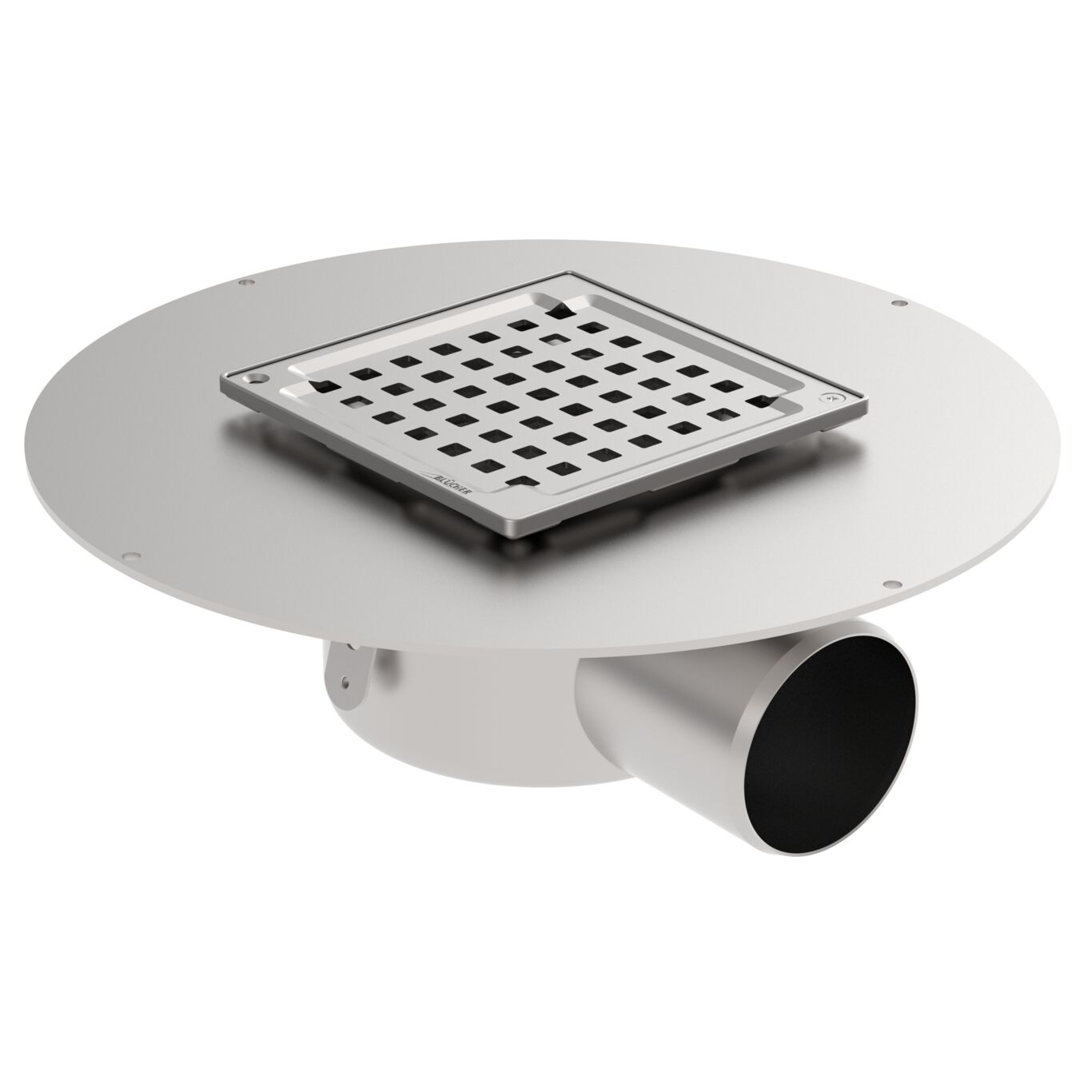

ADJUSTABLE SHOWER DRAIN SQUARE - (310.320.075 V)
×
![]()
Part Of the Series: Drain-Liquid membrane-145
Type no.: 310.320.075 V
EAN no.: 5705499141702
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø75mm, horizontal
-Stainless Steel AISI304/EN1.4301

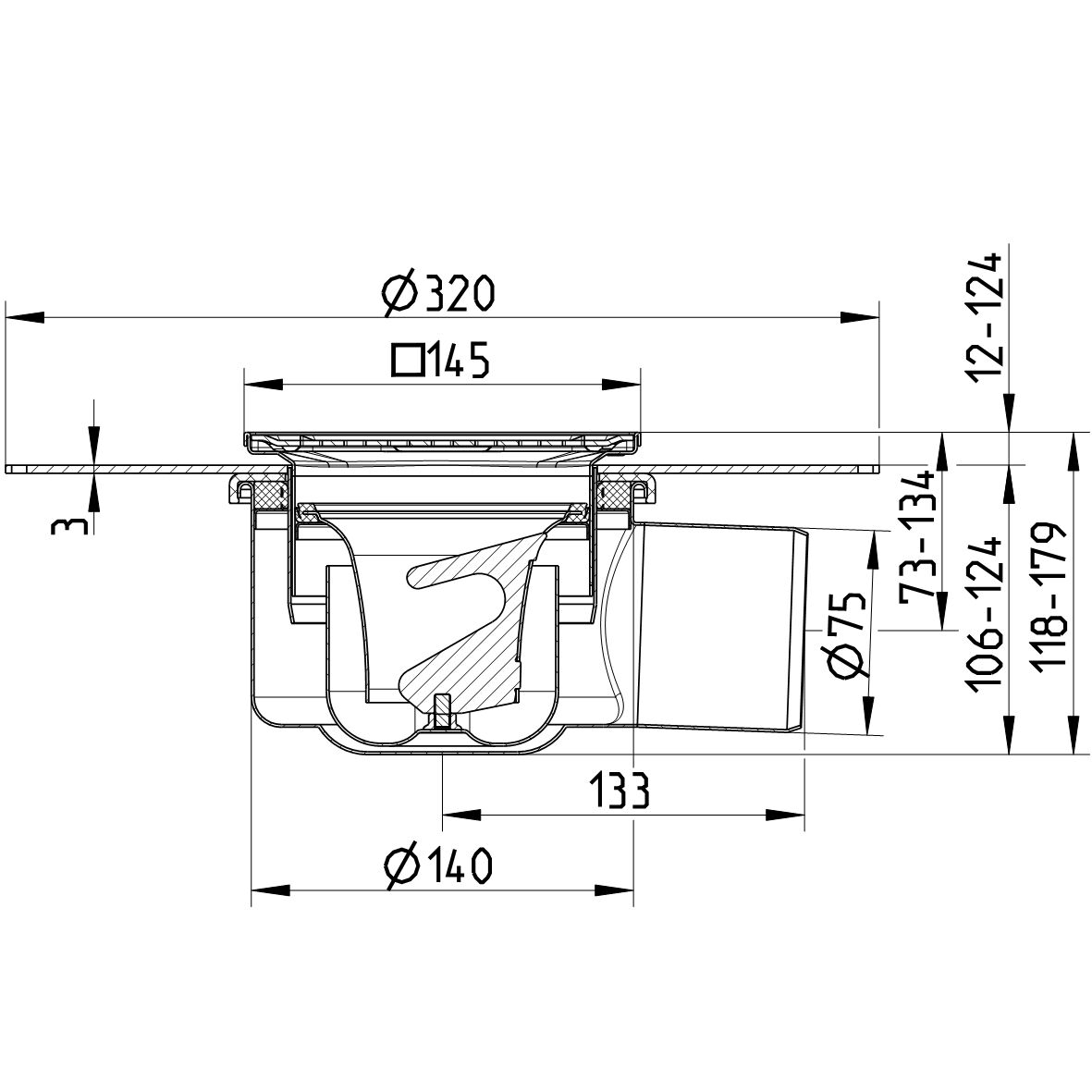

| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 179 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 145x145 |
| Weight (kg) | 3,40 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
