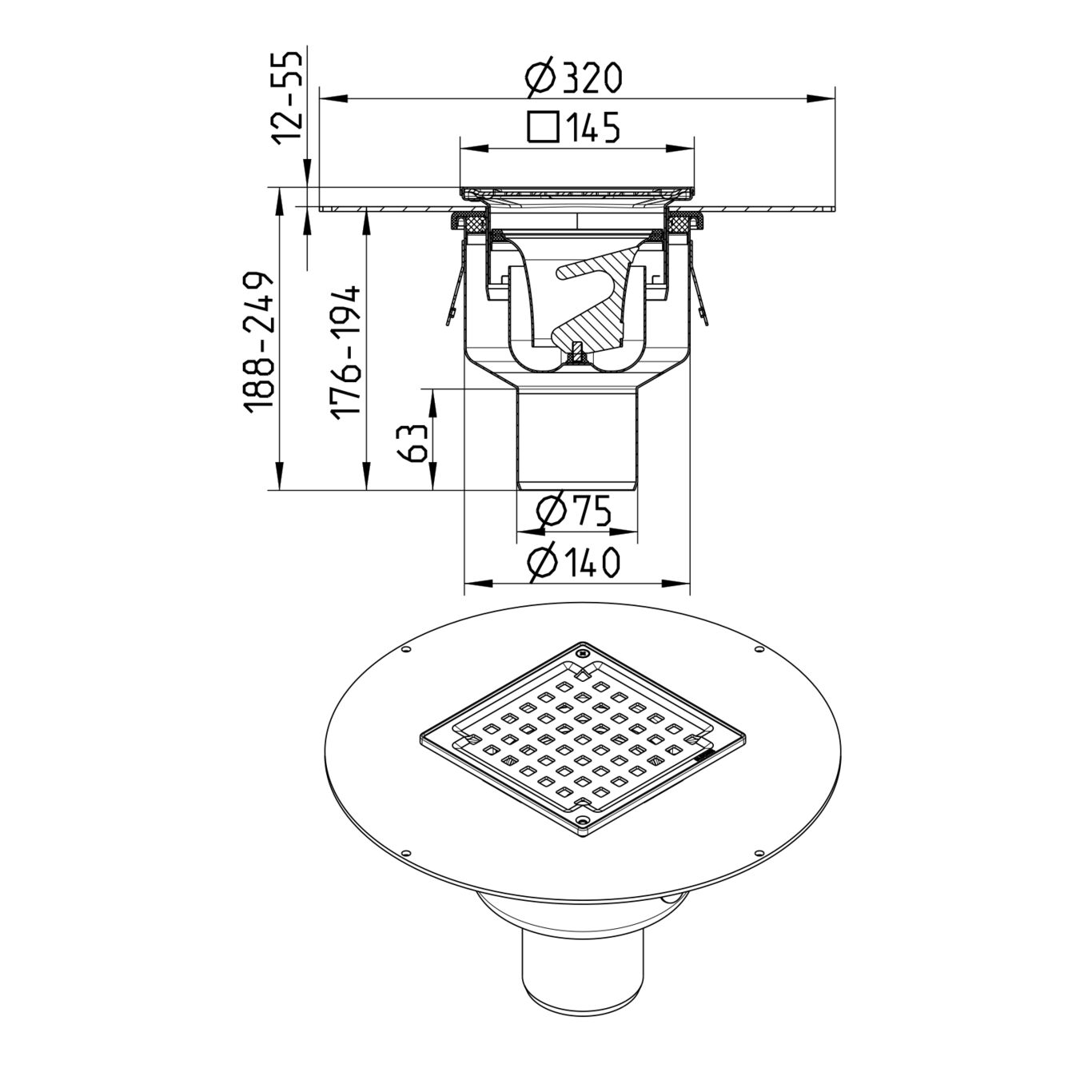

ADJUSTABLE SHOWER DRAIN SQUARE - (350.320.075 V)

Part Of the Series: Drain-Liquid membrane-145

Type no.: 350.320.075 V

EAN no.: 5705499127652

Size: 145x145

Product Specification
Floor Concrete / Tiled
Load Class EN1253 K3
Load Class EN1253 (kg) K3
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 249
Membrane Type Liquid Membrane
Number of Inlets 0
Number of Screw Holes 2
Outlet Diameter (mm) 75
Outlet Direction Vertical
Shape Square
Size (mm) 145x145
Weight (kg) 3,32
