ADJUSTABLE SHOWER DRAIN SQUARE - (361.300.110)
Part Of the Series: Drain-Liquid membrane-145
Type no.: 361.300.110
EAN no.: 5705499105568
VVS no.: 153584316
NRF no.: 3394706
Size: 145x145

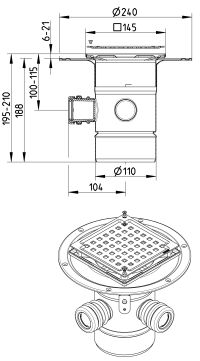

ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets
-Floor: concrete and tiled
-Liquid membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 210 |
Membrane Type | Liquid Membrane |
Number of Inlets | 2 (Ø32/40mm) |
Number of Screw Holes | 2 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 145x145 |
Weight (kg) | 1,60 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
