INDUSTRIAL DRAIN - (763.522.110)
×
![]()
Part Of the Series: Drain-Liquid membrane-200
Type no.: 763.522.110
EAN no.: 5705499123609
VVS no.: 153050212
RSK no.: 7121847
LVI no.: 3303739

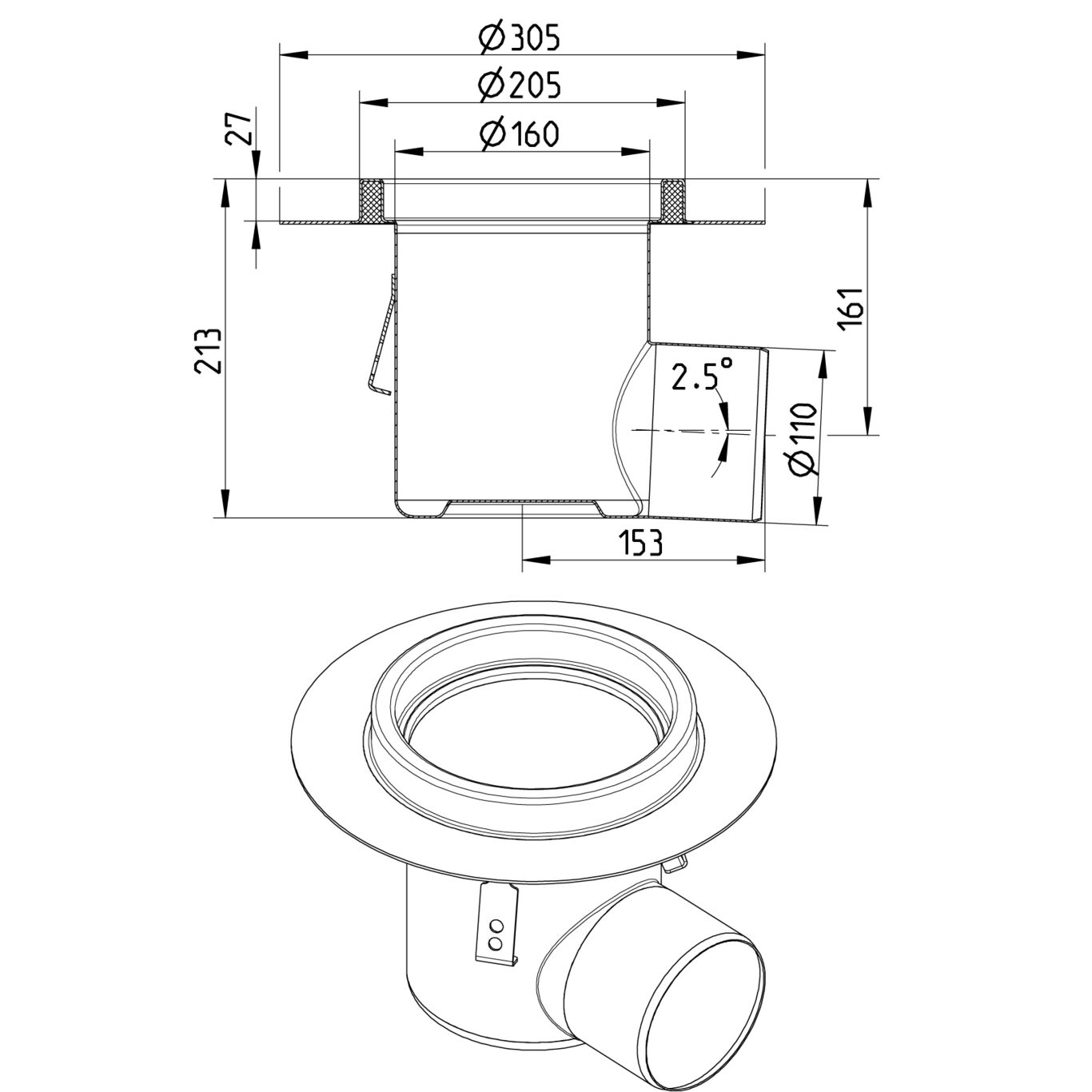

Size: Ø205

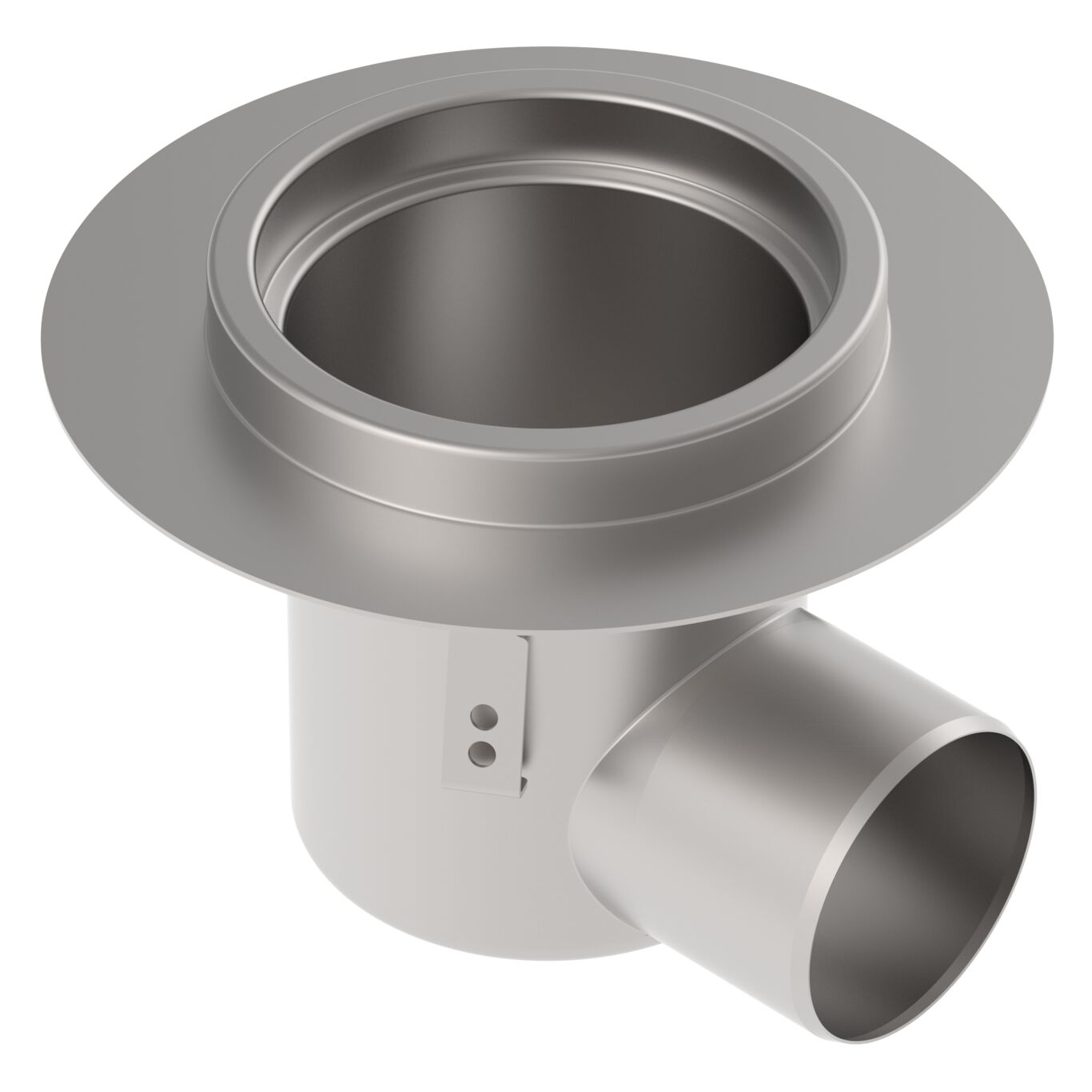

INDUSTRIAL DRAIN
-Floor: resin
-Frame: Ø205mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Horizontal |
| Shape | Round |
| Size (mm) | Ø205 |
| Weight (kg) | 5,98 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
