INDUSTRIAL DRAIN - (761.403.110.01)
×
![]()
Part Of the Series: Drain-Liquid membrane-300
Type no.: 761.403.110.01
EAN no.: 5705499109764
Size: 300x300
INDUSTRIAL DRAIN
-With screw lock
-Floor: concrete and tiled

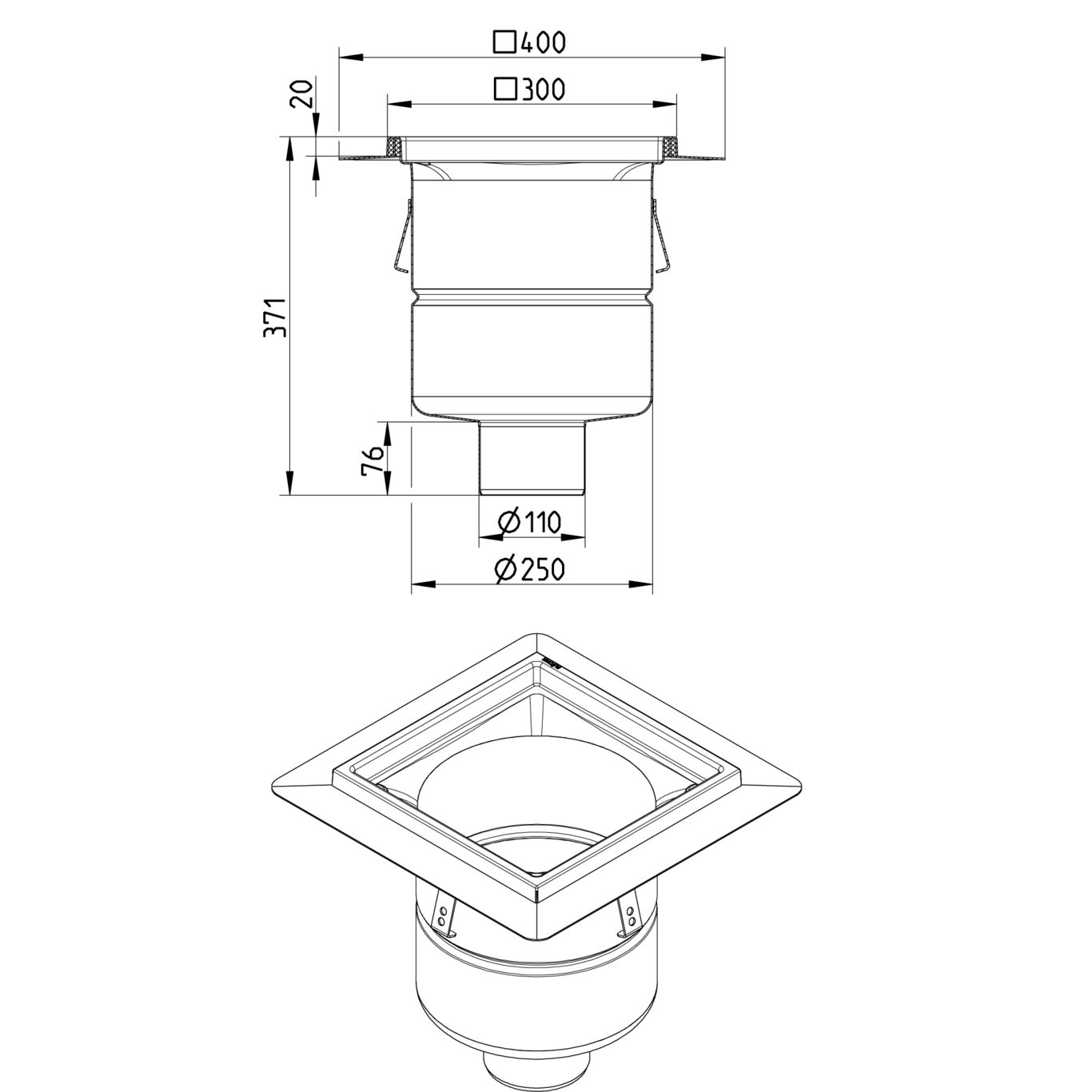

-Liquid membrane, frame: 300x300mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Adjustable | No |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 110 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 300x300 |
| Weight (kg) | 9,81 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
