ADJUSTABLE SHOWER DRAIN SQUARE - (111.303.075 S)
×
![]()

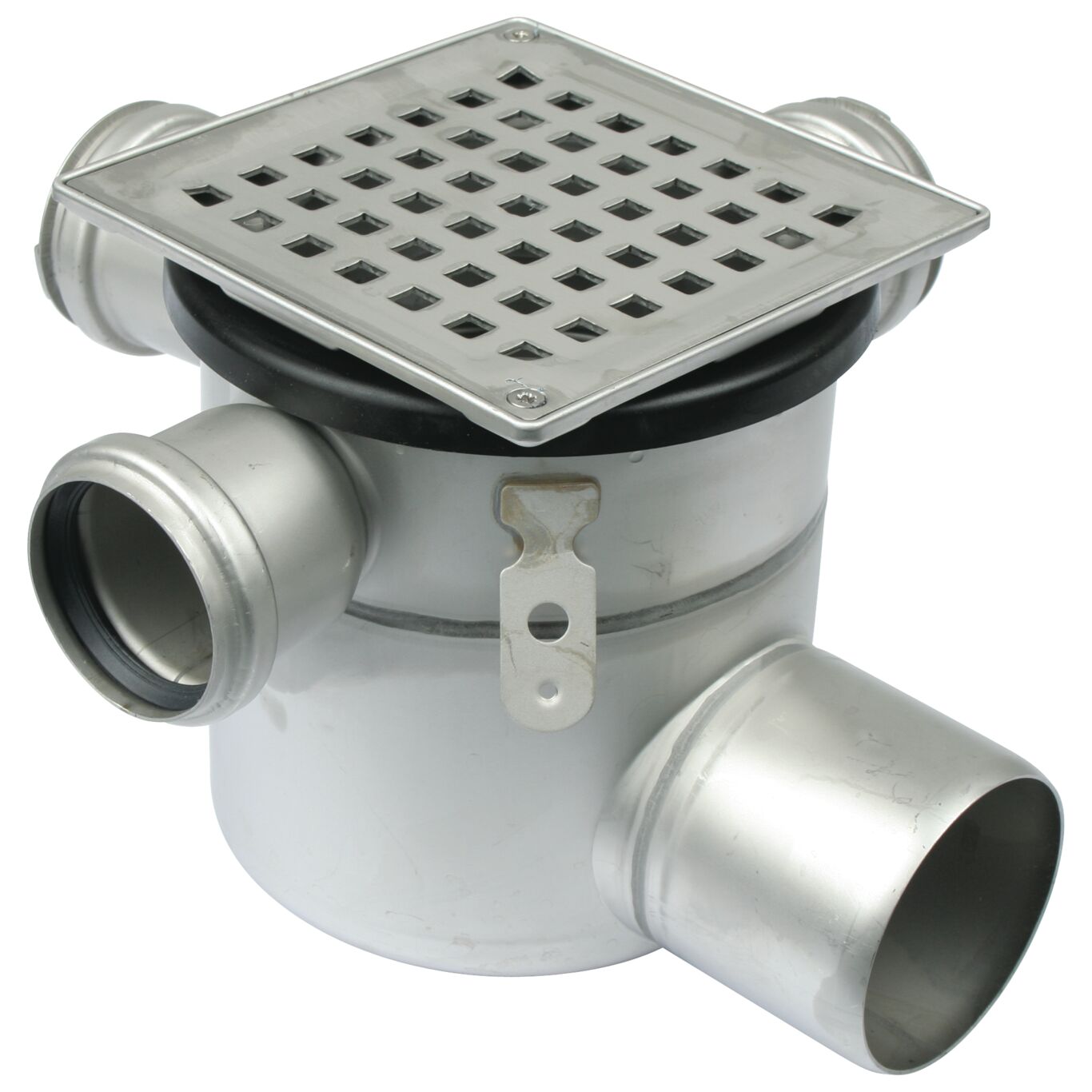

Part Of the Series: Drain-No membrane-145
Type no.: 111.303.075 S
EAN no.: 5705499001891
Size: 145x146
ADJUSTABLE SHOWER DRAIN SQUARE
-With side inlets Ø50mm
-Floor: concrete and tiled
-No membrane, frame: 145x145mm
-Outlet: Ø75mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 185 |
| Membrane Type | No Membrane |
| Number of Inlets | 3 (Ø50mm) |
| Number of Screw Holes | 2 |
| Outlet Diameter (mm) | 75 |
| Outlet Direction | Horizontal |
| Shape | Square |
| Size (mm) | 145x146 |
| Weight (kg) | 1,85 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
