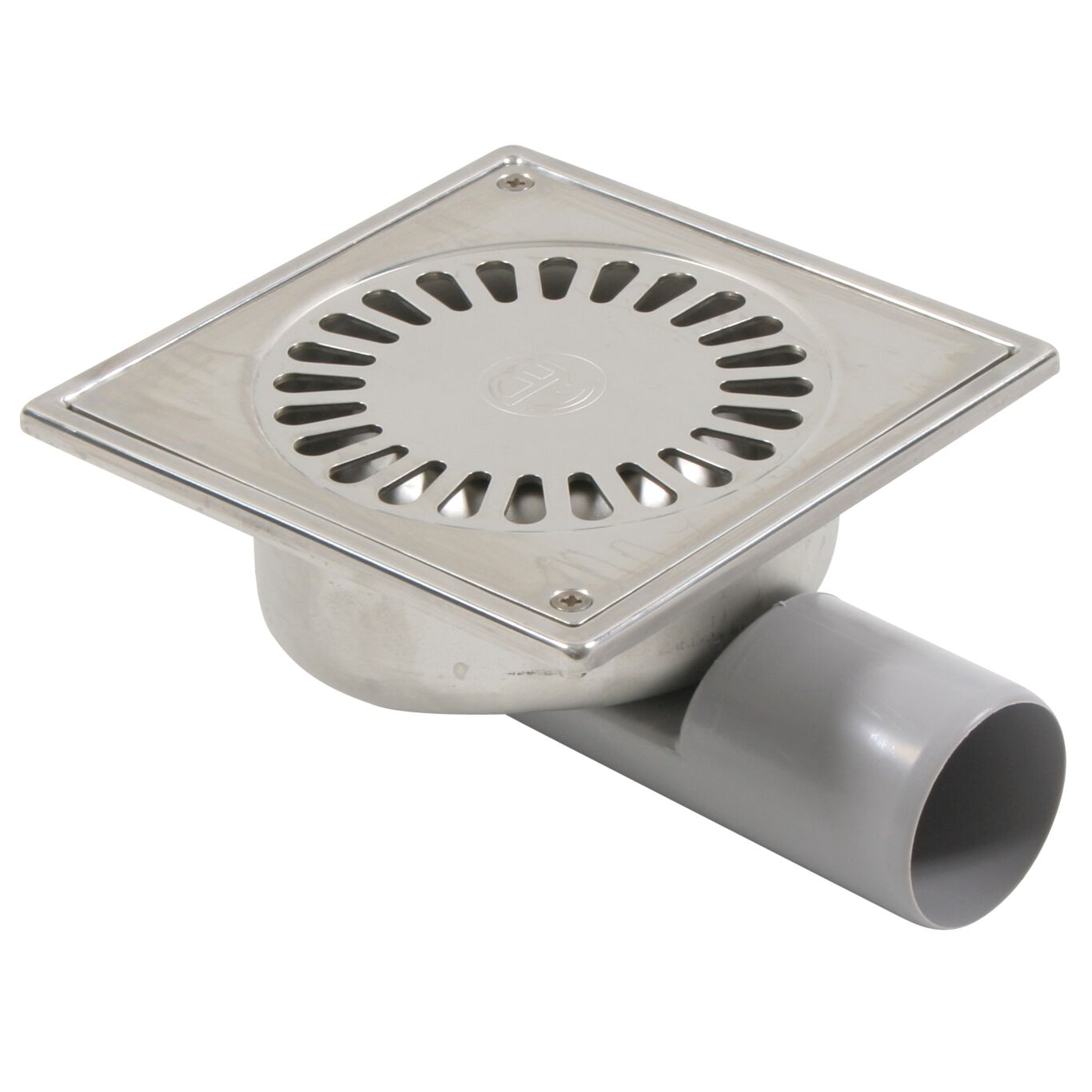

COMPACT DRAIN 150X150 - (182.151.050)
×
![]()
Part Of the Series: Drain-No membrane-147
Type no.: 182.151.050
EAN no.: 5705499118452
Size: 147x147
COMPACT DRAIN 150X150
-With screw lock, removable water trap cannot be used
-Floor: concrete and tiled
-Frame: 147x147mm
-Outlet: Ø50mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screws | 2 |
| Outlet Diameter (mm) | 50 |
| Outlet Direction | Horizontal|Vertical |
| Shape | Square |
| Size (mm) | 147x147 |
| Water Seal Height (mm) | 30 |
| Weight (kg) | 0,80 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
