COMPACT DRAIN 200X200 - (782.203.075 S)
×
![]()
Part Of the Series: Drain-No membrane-197
Type no.: 782.203.075 S
EAN no.: 5705499123043

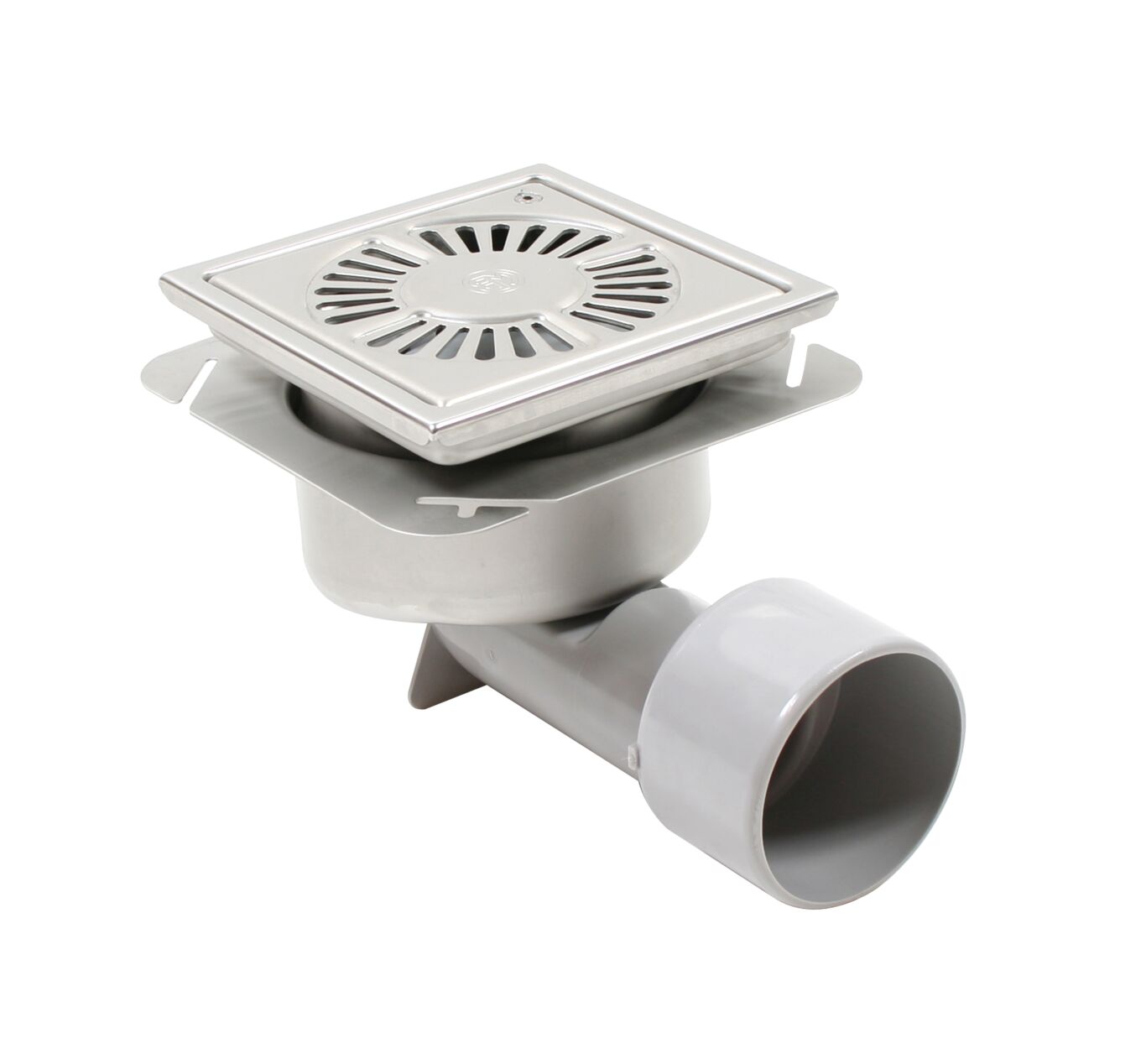

COMPACT DRAIN 200X200
-With screwlock
-Floor: concrete and tiled
-Frame: 197x197mm
-Outlet: Ø75/100/110mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Maximum Height (mm) | 206 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screws | 1 |
| Outlet Diameter (mm) | 75 / 110 |
| Outlet Direction | Horizontal|Vertical |
| Shape | Square |
| Water Seal Height (mm) | 50 |
| Weight (kg) | 3,26 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
