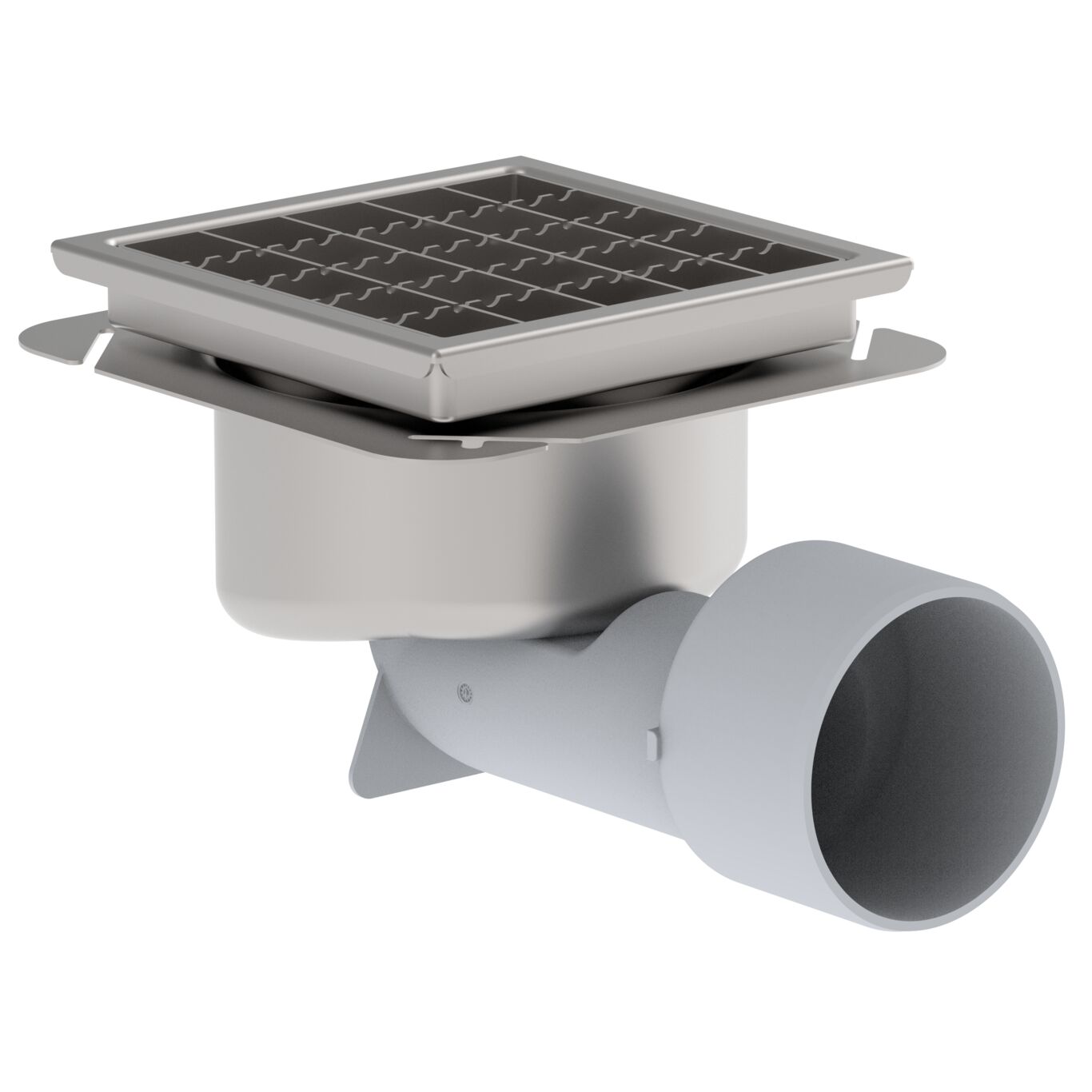

COMPACT DRAIN 200X200 - (78C.202.075.24)
×
![]()
Part Of the Series: Drain-No membrane-200
Type no.: 78C.202.075.24
EAN no.: 5705499140224
Size: 200x200
COMPACT DRAIN 200X200
-Grating: Mesh grating 33/33mm
-Floor: concrete and tiled

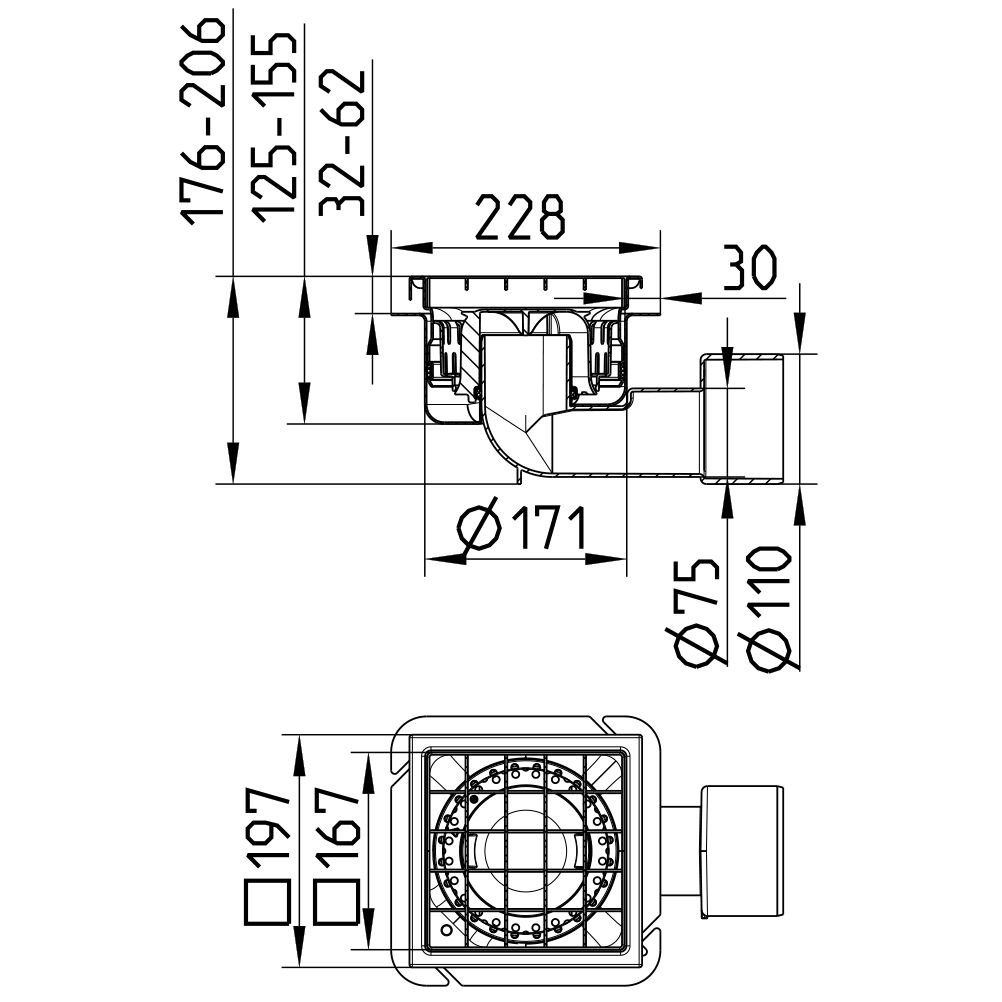

-Frame: 197x197mm
-Outlet: Ø75/100/110mm, vertical/horizontal
-Material: Stainless steel & ABS
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 206 |
| Membrane Type | Liquid / No Membrane |
| Non-slip | R12 |
| Number of Inlets | 0 |
| Outlet Direction | Horizontal / Vertical |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 3,08 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
