INDUSTRIAL DRAIN - (763.401.110)
Part Of the Series: Drain-No membrane-250
Type no.: 763.401.110
EAN no.: 5705499129120
VVS no.: 153043160
Size: 250x250

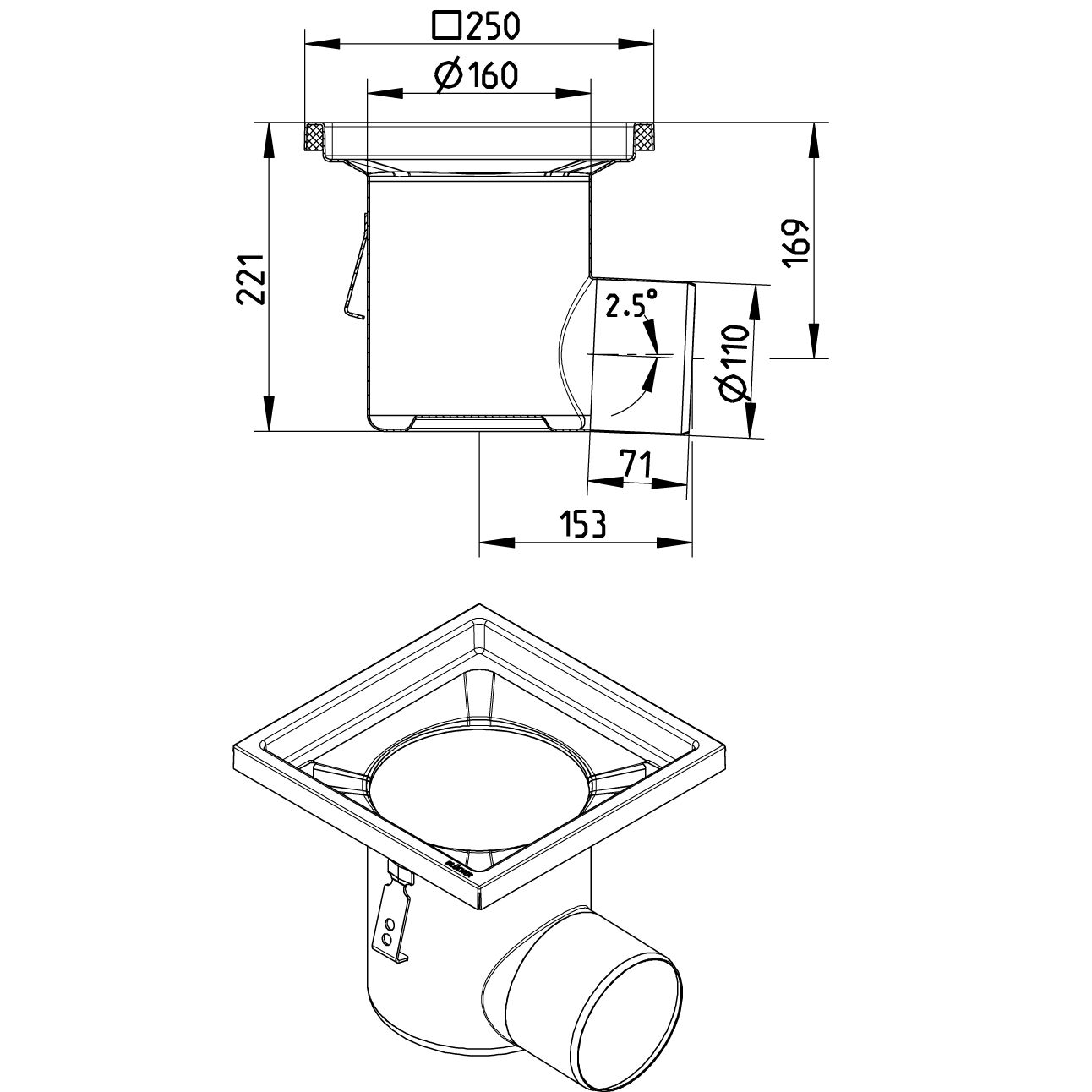

INDUSTRIAL DRAIN
-Floor: concrete and tiled
-No membrane, frame: 250x250mm
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Adjustable | No |
Floor | Concrete / Tiled |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 0 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Horizontal |
Shape | Square |
Size (mm) | 250x250 |
Weight (kg) | 2,63 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
