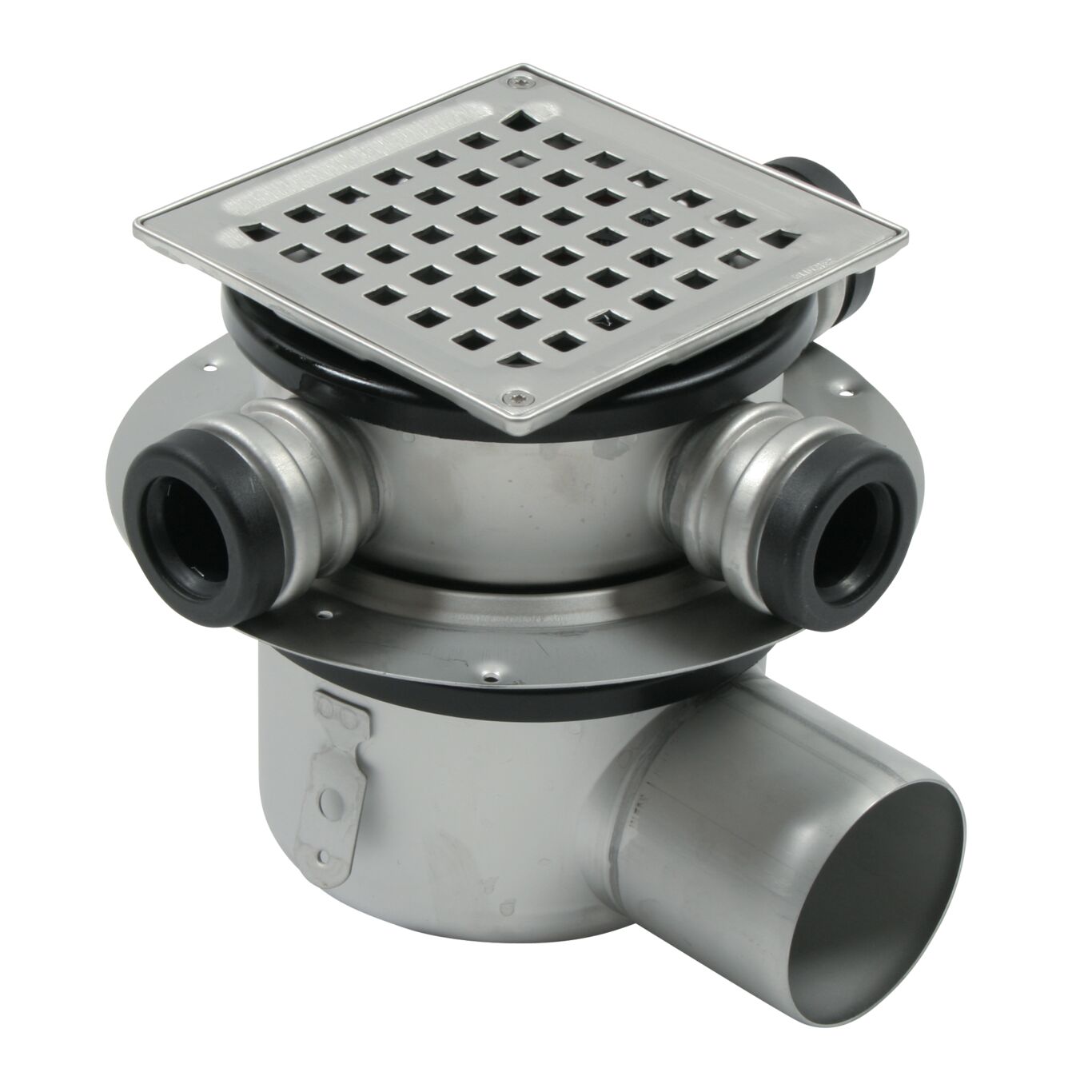

ADJUSTABLE SHOWER DRAIN SQUARE - (313.300.075 S)

Part Of the Series: Drain-Sheet membrane-145

Type no.: 313.300.075 S

EAN no.: 5705499105339

VVS no.: 153328243

Size: 145x145

Product Specification
Floor Concrete / Tiled
Load Class EN1253 K3
Load Class EN1253 (kg) K3
Material AISI 316L
Material (EN) EN 1.4404
Maximum Height (mm) 264
Membrane Type Sheet Membrane
Number of Inlets 3 (Ø32/40mm)
Number of Screw Holes 2
Outlet Diameter (mm) 75
Outlet Direction Horizontal
Shape Square
Size (mm) 145x145
Weight (kg) 2,50
