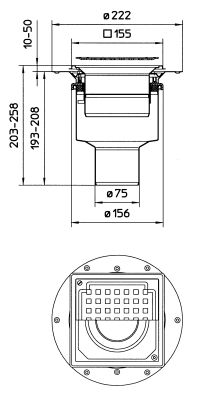

ADJUSTABLE SHOWER DRAIN SQUARE - (352.300.075)
Part Of the Series: Drain-Sheet membrane-145
Type no.: 352.300.075
EAN no.: 5705499105421
VVS no.: 153323113
RSK no.: 7119408
NRF no.: 3394643
Size: 145x145
ADJUSTABLE SHOWER DRAIN SQUARE
-Floor: concrete and tiled
-Sheet membrane, frame: 145x145mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | K3 |
Load Class EN1253 (kg) | K3 |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Maximum Height (mm) | 258 |
Membrane Type | Sheet Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 2 |
Outlet Diameter (mm) | 75 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 145x145 |
Weight (kg) | 1,35 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
