RODDING EYE FOR VACUUM HANDLE - (144.155.110.06)
Part Of the Series: Rodding eye-No membrane-145
Type no.: 144.155.110.06
EAN no.: 5705499140088
Size: 155x155

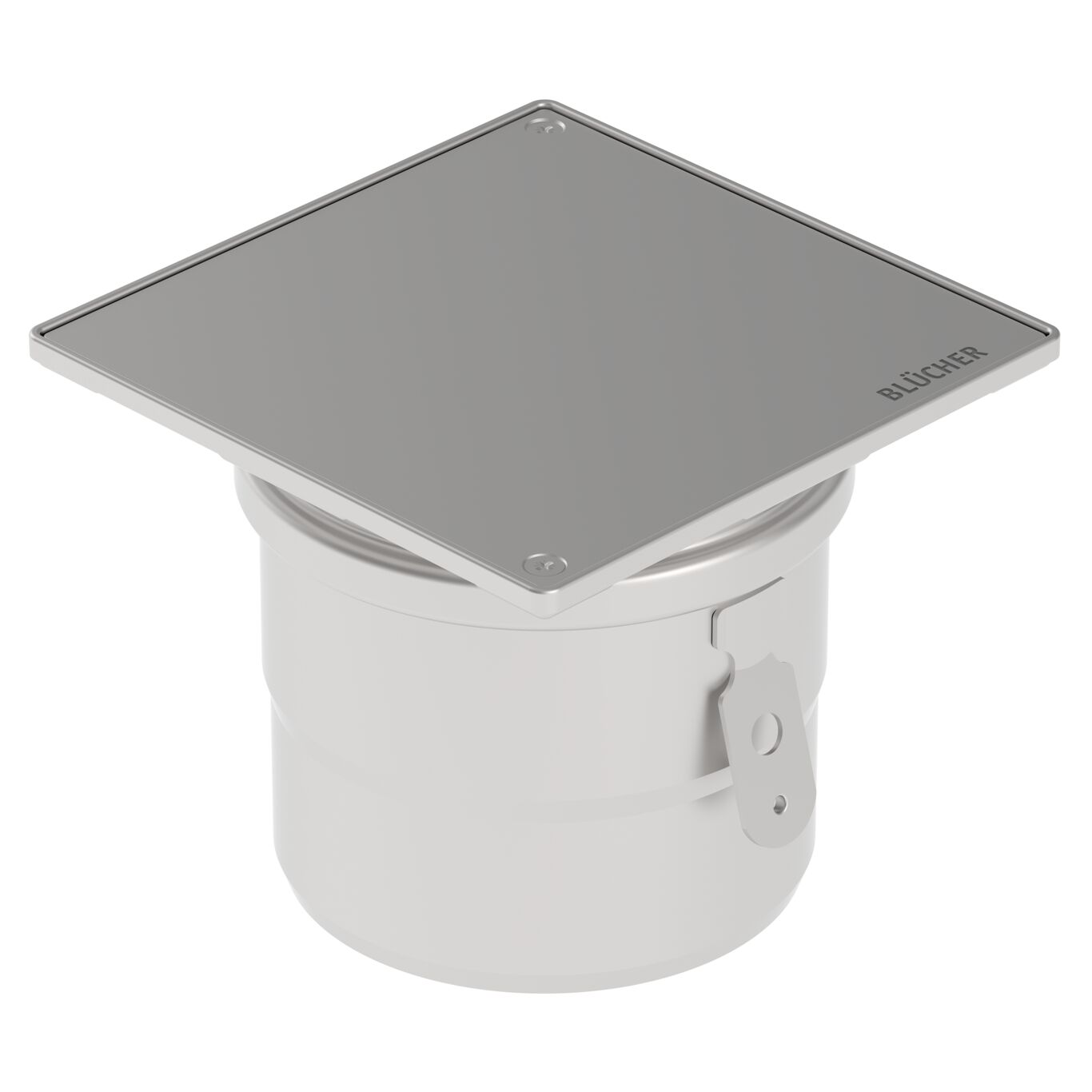

RODDING EYE FOR VACUUM HANDLE
-With screwlock
-Floor: concrete and tiled

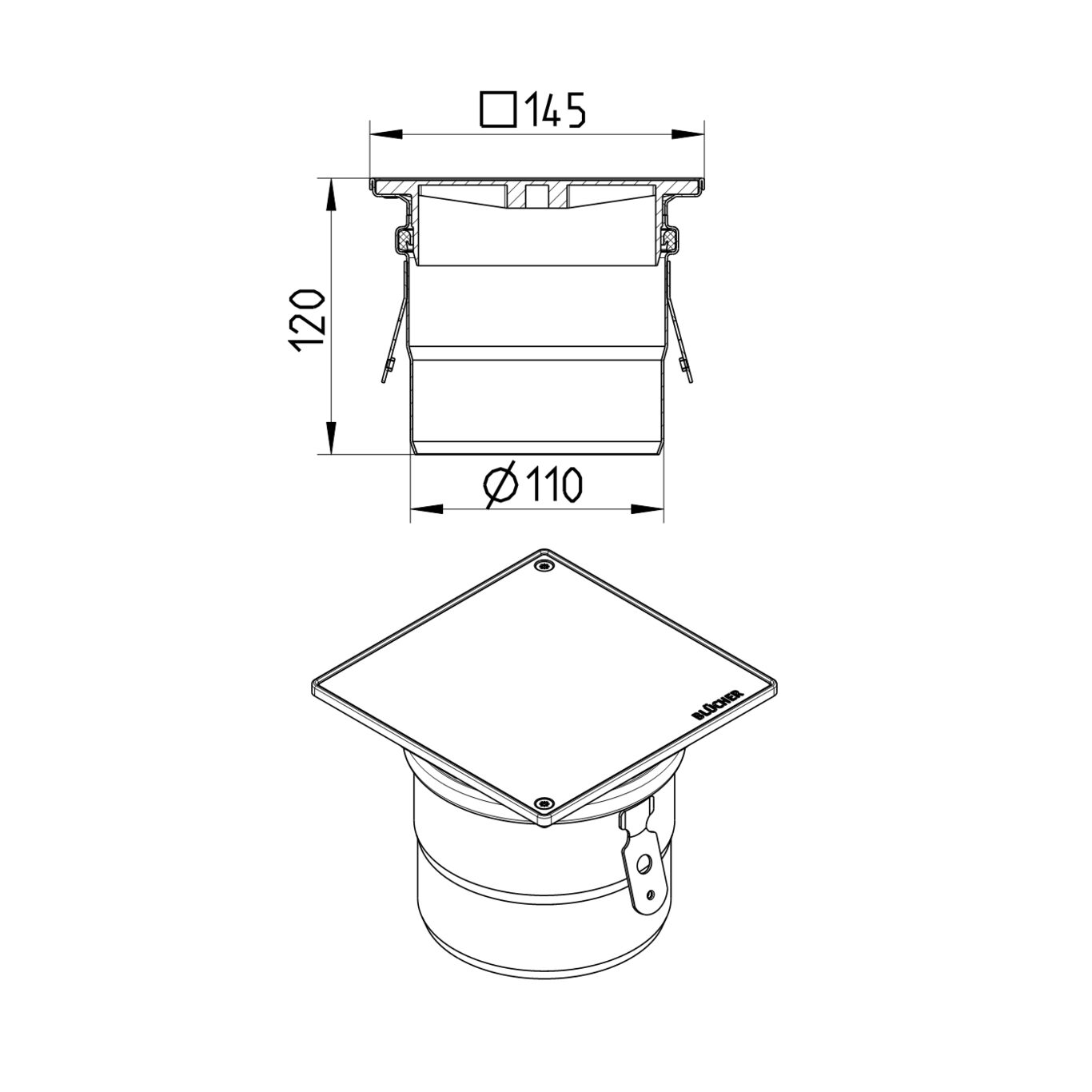

-No membrane, frame: 145x145mm
-Outlet: Ø110mm, vertical
-Stainless steel: AISI304/EN1.4301
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Load Class EN1253 | R50 |
Load Class EN1253 (kg) | R50 (4000) |
Material | AISI 304 |
Material (EN) | EN 1.4301 |
Membrane Type | No Membrane |
Number of Inlets | 0 |
Number of Screw Holes | 2 |
Outlet Diameter (mm) | 110 |
Outlet Direction | Vertical |
Shape | Square |
Size (mm) | 155x155 |
Weight (kg) | 1,54 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
