UPPER PART - (710.432.000)
×
![]()
Part Of the Series: Upper part-Liquid membrane-200
Type no.: 710.432.000
EAN no.: 5705499141665
Size: 200x200

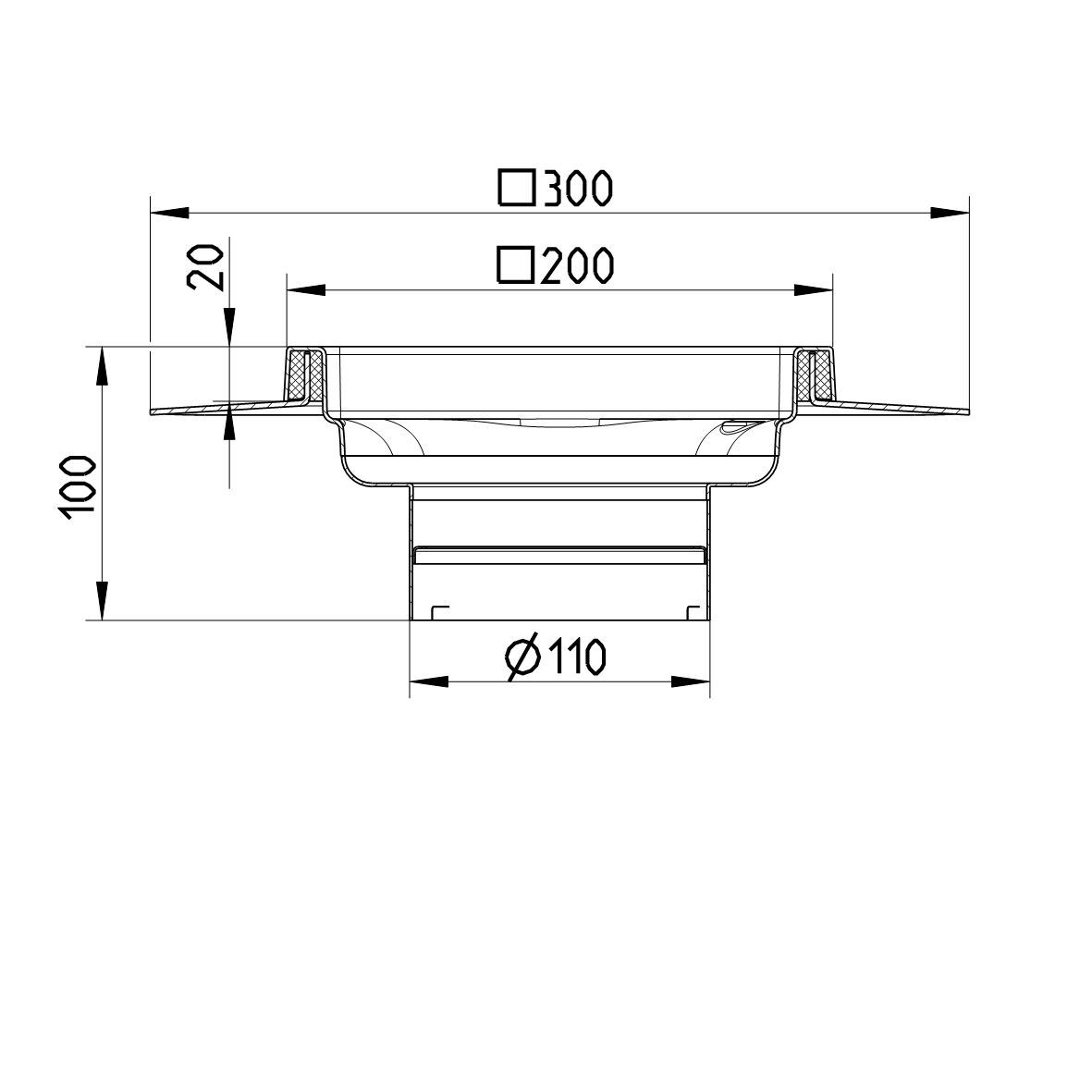

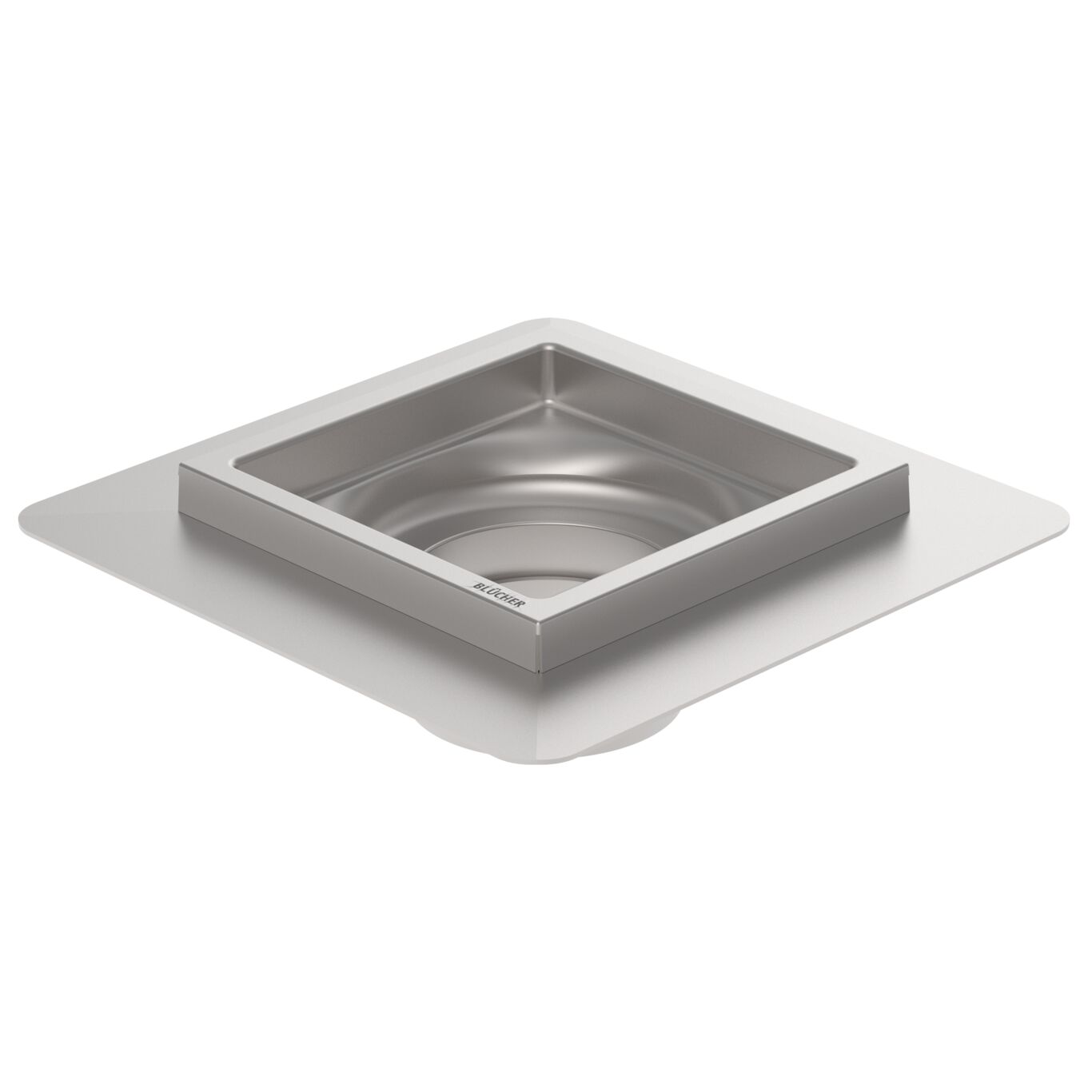

UPPER PART
-Floor: concrete and tiled
-Liquid membrane, frame: 200x200mm
-Stainless Steel AISI304/EN1.4301
| Product Specification | |
|---|---|
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 0 |
| Outlet Diameter (mm) | 110 |
| Shape | Square |
| Size (mm) | 200x200 |
| Weight (kg) | 2,32 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
