UPPER PART - (710.402.000.01 S)
Part Of the Series: Upper part-No membrane-200
Type no.: 710.402.000.01 S
EAN no.: 5705499108156
LVI no.: 3303808
Size: 200x200

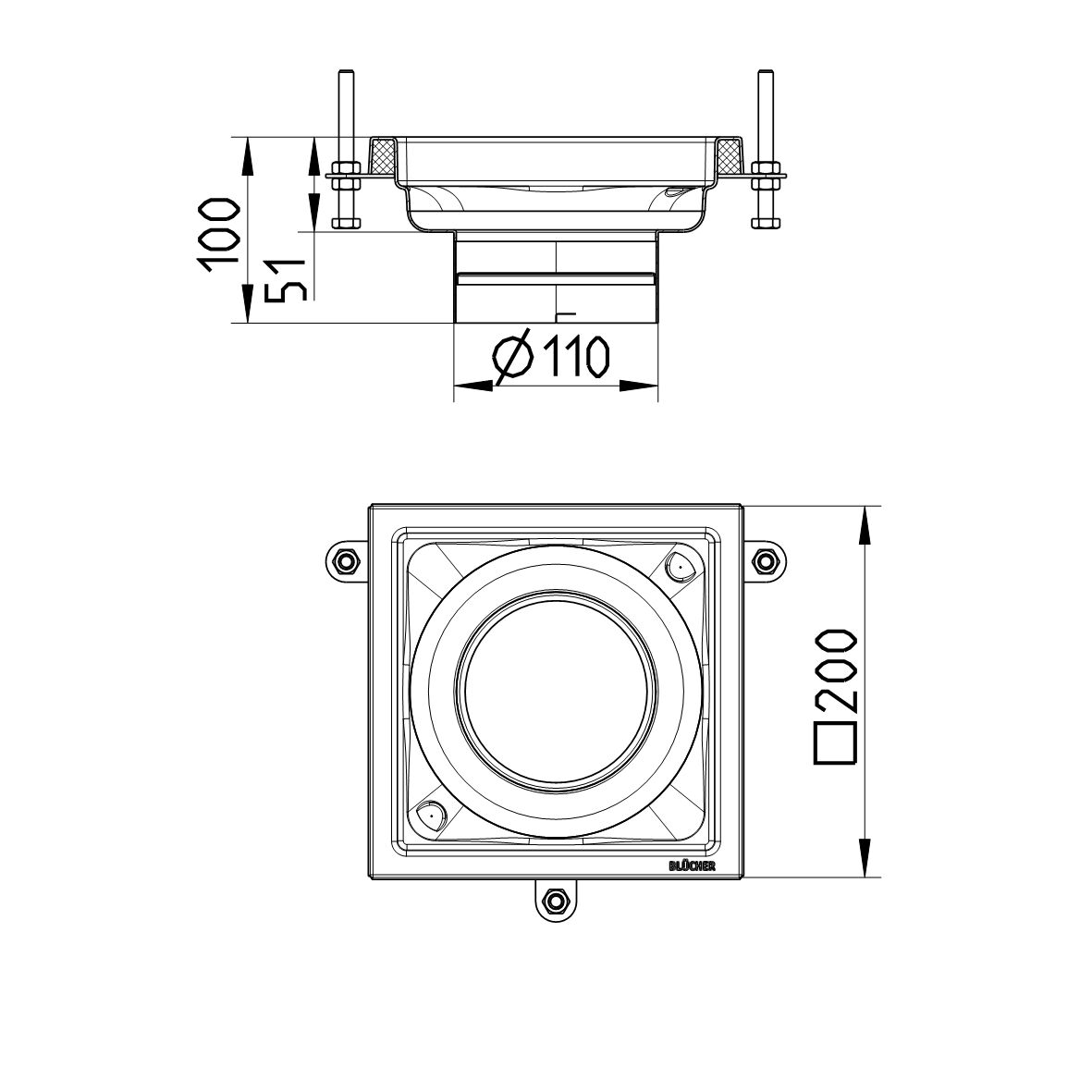

UPPER PART
-With screw lock and supporting ring for water trap
-Floor: concrete and tiled
-Frame: 200x200mm
-Stainless steel: AISI316L/EN1.4404
Product Specification | |
---|---|
Floor | Concrete / Tiled |
Material | AISI 316L |
Material (EN) | EN 1.4404 |
Number of Screw Holes | 1 |
Outlet Diameter (mm) | 110 |
Shape | Square |
Size (mm) | 200x200 |
Weight (kg) | 1,19 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
